- Page 1 CWT 315 OPERATING INSTRUCTIONS Translation of the original instructions...
- Page 2 VERS. 2022.10.14 CWT 315_MAN_EN...
- Page 3 "NOISE" 2000/14 / EC Valid for machines as of serial number: 45031101430001 Storage site for the technical documents: Saint-Gobain Abrasives 190, Bd. JF Kennedy 4930 BASCHARAGE, LUXEMBOURG This declaration of conformity loses its validity when the product is converted or modified without agreement.
- Page 4 2001 Valid for machines as of serial number: 45031101430001 Authorised Representative: SAINT-GOBAIN ABRASIVES Unicorn House • Unit 1, Amison Close Redhill Business Park • Stafford • England • ST16 1WB This declaration of conformity loses its validity when the product is converted or modified without agreement.
-
Page 5: Product Description

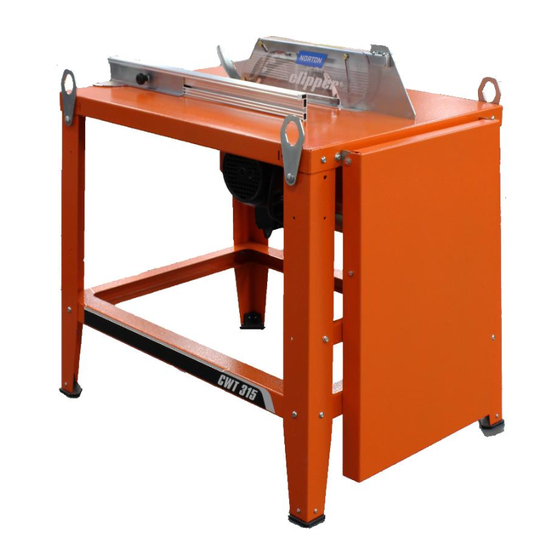

VERS. 2022.10.14 CWT 315_MAN_EN PRODUCT DESCRIPTION: Circular saw for cutting wooden planks and joists and similar. ATTENTION: upon arrival, the machine must be immediately checked. If any transport damage or missing parts are found, immediately send a written damage report to the shipper. Therefore also inform the supplier. -
Page 6: Table Of Contents
VERS. 2022.10.14 CWT 315_MAN_EN CWT 315 TABLE OF CONTENTS PRODUCT DESCRIPTION: ..................5 1 - GENERAL INFORMATION ..................7 1.1 PURPOSE OF THE MANUAL ................7 1.2 USERS OF THE MANUAL ................7 1.3 PRESERVATION OF THE MANUAL ..............8 1.4 LIABILITY AND WARRANTY ................8 1.5 MANUFACTURER'S DISCLAIMER ..............8 2 - TECHNICAL INFORMATION ................9 2.1 IDENTIFICATION .....................9... -
Page 7: General Information
The Saint-Gobain company can modify the machine to improve the product, without any notice, therefore there may be differences between the machine... -
Page 8: Preservation Of The Manual
The manual is an important document that accompanies the machine and all users must be responsible for its protection. Any replacement copies can be requested directly from Saint-Gobain, quoting the serial number of the machine and the year of construction. -
Page 9: Technical Information
VERS. 2022.10.14 CWT 315_MAN_EN - TECHNICAL INFORMATION 2.1 IDENTIFICATION The following data are shown on the machine plate: • Manufacturer identification • Machine model and serial number • Voltagepower supply (Volt) • Electric motor amps (A) • Electric motor power (Kw) •... - Page 10 VERS. 2022.10.14 CWT 315_MAN_EN 1 - Dividing wedge 8 - Control switch 9 15- Transparent 2 - Self-adjusting headset 9 - Side pusher polycarbonate plate 3 - Headphone holder 10 - Extendable table 74x40cm 17- Lifting eyes 4 - Blade group guard 11- Aluminum insert 5 - Longitudinal guide 12- Sawdust unloading hardware...
-
Page 11: Dimensions And Features "Fixed Blade Model
VERS. 2022.10.14 CWT 315_MAN_EN 2.3 DIMENSIONS AND FEATURES "Fixed blade model" Power tooth blade Useful cut Weight model CWT315 2 Kw - 230V Single phase Ø315 Ø30 sp 2.2/ 3.2 , Z24 110 mm Sound levels with the use of a special blade with 28 teeth and Ø 315mm Equivalent continuous sound pressure level in the workplace dB (A) 86.3... -
Page 12: 3- General Safety Rules
Customers are therefore advised to strictly follow the rules described in this booklet. To maintain the original characteristics and the validity of the certification, use original Saint-Gobain spare parts ATTENTION ! Only the operator will be liable for all damages deriving from improper use of the machine. -
Page 13: Positioning The Machine (Fig. 1)
VERS. 2022.10.14 CWT 315_MAN_EN • Maintenance must be carried out with the power off, and by specialized personnel. • It is forbidden to remove or tamper with the protections! • Always use: protective helmet, ear muffs, protective goggles or visor, heavy or safety footwear and work gloves, do not work with loose clothing. -
Page 14: Safety Precautions
VERS. 2022.10.14 CWT 315_MAN_EN SAFETY PRECAUTIONS - All the adjustment and maintenance operations must be carried out with the power socket disconnected. - Always unset the plug when you are not using the machine. - Don't try to use the machine with any voltage other than that indicated. - Never open the switch box as it is electronic. -
Page 15: Sign Description For All Machines
VERS. 2022.10.14 CWT 315_MAN_EN SIGN DESCRIPTION FOR ALL MACHINES The plates and wordings applied to the machine must not be removed and must be kept in good condition without compromising their legibility. In case of damage they must be replaced. DANGER! Information Before using the machine, it is mandatory to read the entire user manual and understand the contents! All moving parts... - Page 16 VERS. 2022.10.14 CWT 315_MAN_EN FORBIDDEN! It is forbidden to carry out maintenance or adjustments when the machine is running. FORBIDDEN! It is forbidden for the user to smoke while working. ATTENTION! ELECTRIC CURRENT Check the correct voltage as indicated on the 230V motor nameplate.
-
Page 17: Handling And Installation
VERS. 2022.10.14 CWT 315_MAN_EN 4 - HANDLING AND INSTALLATION TRANSPORTATION BY TRUCK Due to its particularly sturdy monolithic structure, the machine can be easily transported without any disassembly operations; however, it is important to pay attention to the following rules: –... -
Page 18: Preliminary Checks
VERS. 2022.10.14 CWT 315_MAN_EN 4.3 PRELIMINARY CHECKS To move, repair, maintain or inspect, make sure the machine is unplugged from the power socket. Before inserting the power plug you need to: - Place the machine on a stable and level surface to ensure optimal support. -
Page 19: Starting And Stopping
VERS. 2022.10.14 CWT 315_MAN_EN 5 - STARTING AND STOPPING STARTING AND STOPPING THE MACHINE The switch is placed in a convenient position and accessible from the operator's workplace. It is of the motor protection type with thermal protection, against current surges and with release coil in the absence of voltage. -
Page 20: Instructions For Using The Electrical Equipment
VERS. 2022.10.14 CWT 315_MAN_EN INSTRUCTIONS FOR USING THE ELECTRICAL EQUIPMENT Please observe the following warnings: Do not operate the appliance if the power cable, motor cable or switch show visible damage. Turn off the switch before carrying out any maintenance, adjustment or repair work and unplug the power cord from the socket. -
Page 21: Anomalies And Remedies
VERS. 2022.10.14 CWT 315_MAN_EN 5.3 ANOMALIES AND REMEDIES ANOMALY POSSIBLE CAUSE REMEDY The engine does not Bad connection Check the connection start after pressing the No mains voltage Check the mains voltage start button The motor protection has tripped Start the engine again after a sufficient cooling period (when the engine is no longer hot) After the drive... -
Page 22: Blade Cover Cap
VERS. 2022.10.14 CWT 315_MAN_EN ANOMALY POSSIBLE CAUSE REMEDY After switching off, the Electronic brake adjustment is not Change the position of the flywheel of the circular ideal jumper or the potentiometer on blade is braked too the electronic brake until you fast or too much have an ideal adjustment of the slowly exceeding 10... -
Page 23: Use Of The Machine
VERS. 2022.10.14 CWT 315_MAN_EN 6 - USE OF THE MACHINE 6.1 USE OF THE CIRCULAR SAW Wood is a not very regular material: the same piece can have more or less hard, more or less healthy areas, with irregular pattern, knots, etc. A careful examination of the piece is always necessary before putting it in the car. -
Page 24: Cutting Disc
VERS. 2022.10.14 CWT 315_MAN_EN 6.2 CUTTING DISC The blade has a diameter of 315 mm and has a maximum projection above the bench of 110 mm. (Fig.9) Fig.9 IT IS STRICTLY FORBIDDEN TO CHANGE THE DIAMETER OF THE BLADE. THE MACHINE HAS BEEN DESIGNED FOR THE EXCLUSIVE USE OF A Ø... -
Page 25: Use Of The Square Guide
VERS. 2022.10.14 CWT 315_MAN_EN 6.3 USE OF THE SQUARE GUIDE The machine is equipped with a parallel square to perform longitudinal cuts. After setting the measurement (ENGINE OFF), lock the square with the special locking knob (1 Fig.10). The square can be adjusted longitudinally by releasing the knob (2 Fig. 10). The square can also be used in the lowest measure by changing the position of the knob 5 (2 Fig.11). -
Page 26: Longitudinal And Side Pusher
VERS. 2022.10.14 CWT 315_MAN_EN 6.4 LONGITUDINAL AND SIDE PUSHER To avoid accidental contact and to prevent your hands from getting close to the teeth of the blade, you must use the special pushers supplied. The machine is equipped with two types of pushers: - The longitudinal pusher (Fig. -
Page 27: Extension Of The Work Bench
VERS. 2022.10.14 CWT 315_MAN_EN 6.5 EXTENSION OF THE WORK BENCH The machine is supplied with an extensible workbench that allows a support in the case of cutting long boards. If you need to cut an excessively long board, use an additional stand to be positioned on the opposite side of the operator, to accommodate the board after cutting (Fig. -
Page 28: Stability' Of The Machine
VERS. 2022.10.14 CWT 315_MAN_EN 6.6 STABILITY' OF THE MACHINE Fig. 22 If you have to make cuts on large panels, it is necessary to place special sliding supports next to the machine and fix the machine itself on two large axes sp. 50 mm with a length of 3 meters, in order to avoid the risk of overturning due to the cantilevered weight of the panel to be cut. -
Page 29: Maintenance
VERS. 2022.10.14 CWT 315_MAN_EN 7 - MAINTENANCE ATTENTION: THESE OPERATIONS MUST BE CARRIED OUT WITH THE POWER SOCKET OFF 7.1 TRANSMISSION BELTS Check the tension of the transmission belts as indicated in point 4.3 (fig. 3 and 4 on page 17). 7.2 REPLACEMENT OF THE BLADE (see details on page 33) Completely remove... -
Page 30: It Is Not Recommended To Use Blades With Reduction Rings
VERS. 2022.10.14 CWT 315_MAN_EN ATTENTION: THESE OPERATIONS MUST BE CARRIED OUT WITH THE POWER Fig. 26 SOCKET OFF M arcade: Blade D.315 thickness 2.2/3.2mm Dividing knife All models are fitted with a Ø 315 mm disc blade, thickness 3mm Z24, hole Ø 30 mm, thickness of 2.2/3.2 mm. Distance between knife and It is not recommended to use blades with reduction rings. -
Page 31: Description Of The Periodic Checks To Be Carried Out On The Machine Before Use
VERS. 2022.10.14 CWT 315_MAN_EN DESCRIPTION OF THE PERIODIC CHECKS TO BE CARRIED OUT ON THE MACHINE BEFORE USE CONTROLS DESCRIPTION CHECK FREQUENCY Before using the saw, check if the machine has any damaged parts. Whenever the machine is used Before starting work, check the position of the work area: (clutter can cause personal injury) SINGLE-PHASE MACHINE: Whenever the machine is used... -
Page 32: 8- Single-Phase Wiring Diagram
VERS. 2022.10.14 CWT 315_MAN_EN 8- SINGLE-PHASE WIRING DIAGRAM Components list K700 / TAZ box Series of contacts KB-04 Uc: 230V ~ 3- overload protection 16,0A 4- Brake board 40820301 5- Engine... -
Page 33: Customer Service
Spare parts for the motor can be ordered with the manufacturer of the motor or with their dealer, which is often quicker and cheaper. This machine has been manufactured by: Saint-Gobain Abrasives S.A. 190, Bd. J. F. Kennedy L- 4930 BASCHARAGE Grand-duché... -
Page 34: Spare Parts
VERS. 2022.10.14 CWT 315_MAN_EN Spare parts In order to consult the spare parts lists, we invite you to visit the after-sales website of Norton Clipper by using the following address: https://spareparts.nortonabrasives.com For a quick access, you can also use the QR Code shown below using your mobile phone: This electronic catalogue provides exploded views and spare parts lists for different machines designed by Norton Clipper so you can find references you need. - Page 35 VERS. 2022.10.14 CWT 315_MAN_EN...
