Summary of Contents for SAINT-GOBAIN NORTON CLIPPER TR 250 H
- Page 1 TR 250 H OPERATING INSTRUCTIONS...
- Page 3 Declaration of conformity The undersigned manufacturer: SAINT - GOBAIN ABRASIVES S.A. 190, BD J.F. KENNEDY L- 4930 BASCHARAGE Declares that this product: TR 250 H Tile saw: 70184629084 Code : 70184629611 is in conformity with the following Directives: European Machinery Directive 2006/42/CE ...
- Page 4 TR 250 H...
-
Page 5: Table Of Contents
OPERATING INSTRUCTIONS Basic Safety Instructions Symbols Machine plate Safety instructions for particular operating phases Machine description Short description Purpose of use Layout Technical Data Assembly and commissioning Assembly of the legs Cutting head Tool assembly Electrical connections Water cooling system Starting the machine Transport and storing Securing for transport... -
Page 6: Basic Safety Instructions
1 Basic Safety Instructions The TR 250 is exclusively designed for the cutting of tiles and abrasive materials with NORTON diamond disks mainly on construction sites. Uses other than the manufacturer's instructions shall be considered as contravening the regulations. The manufacturer shall not be held responsible for any resulting damage. Any risk shall be borne entirely by the user. -
Page 7: Machine Plate
1.2 Machine plate Important data can be found on the following plate located on the machine: Maximum blade diameter Year of production Machine Model Machine Code Weight Bore diameter Machine type Serial number Power Safety standard Blade speed 1.3 Safety instructions for particular operating phases Before commencing work ... -
Page 8: Machine Description

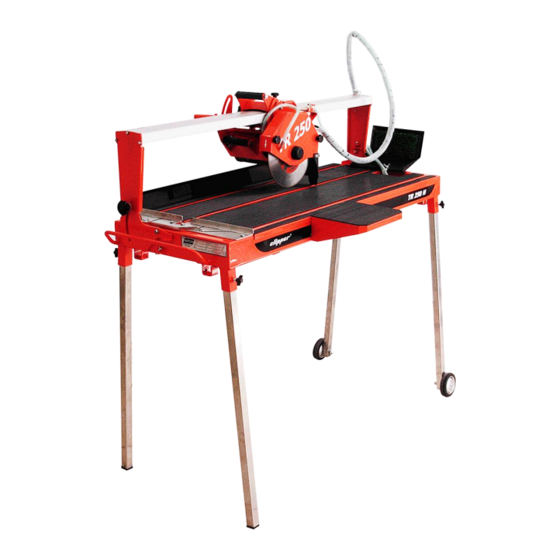

2 Machine description Any modification, which could lead to a change in the original characteristics of the machine, may be done only by Saint-Gobain Abrasives who shall confirm that the machine is still in conformity with the safety regulations. 2.1 Short description The TR 250 Saw is designed for durability and high performance for onsite wet cutting operations of a wide range of tiles and masonry products. -
Page 9: Technical Data
2.4 Technical Data Electric motor 1,3kW Voltage 230V, 50Hz Protection rating IP 54 Max. blade diameter 250 mm Bore 25.4 mm Rotation speed of the blade 2800 min Flange diameter 90 mm Cutting depth mm 60 mm Cutting length mm 1000 mm Sound pressure level 73 dB (A) (ISO EN 11201) -
Page 10: Assembly And Commissioning
3 Assembly and commissioning The machine is delivered fully equipped. It is ready for operation after assembly the diamond blade and after connection to the appropriate power supply. 3.1 Assembly of the legs Lift up one side of the saw, slide in the legs (with no wheels) to the front side of the saw. Lock the wing nut to tighten the legs in place. -
Page 11: Water Cooling System
3.5 Water cooling system Fill the water pan with clean water to 1cm of the edge of the water tray. Ensure that water is delivered adequately to both sides of the blade, as insufficient water supply may result in premature failure of the diamond blade. ... -
Page 12: Transport And Storing
4 Transport and storing 4.1 Securing for transport Before transporting the machine, always remove the blade and empty the water pan. Secure the cutting head on the rail by using the knob. 4.2 Long period of inactivity If the machine is not going to be used for a long period, please take the following measures: ... -
Page 13: Operating The Machine
5 Operating the machine 5.1 Site of work 5.1.1 Siting the machine Remove from the site anything, which might hinder the working procedure! Make sure the site is sufficiently well lit! Observe manufacturer's conditions for connecting to power supplies! ... -
Page 14: Cutting With An Angle
5.2.2 Multiple step cutting Multiple step cutting consists of moving the head back and forward on the material to be cut. Place the material to be cut on the table firmly against the guide-a-cut and the backstop, keeping the hands well away from the blade. ... -
Page 15: Maintenance And Servicing
6 Maintenance and servicing To ensure a long-term quality from the cutting with the TR 250, please follow the maintenance plan below: Whole machine Visual control (general aspect, watertightness) Clean Flange and blade fixing devices Clean Motor cooling fans Clean Water pan Clean Motor housing... -
Page 16: Faults: Causes And Cures
Faults: causes and cures Fault-finding procedures Should any fault occur during the use of the machine, turn it off, and isolate it from the electrical supply. Any works dealing with the electrical system or supply of the machine can only be carried out by a qualified electrician. -
Page 17: Circuit Diagram
Spare parts for the motor can be ordered with the manufacturer of the motor or with their dealer, which is often quicker and cheaper. This machine has been manufactured by Saint-Gobain Abrasives S.A. 190, Bd J.F.Kennedy L- 4930 BASCHARAGE Grand-Duché de Luxembourg. - Page 18 Guarantee can be claimed and technical support obtained from your local distributor where machines, spare parts and consumables can be ordered as well: Benelux and France: United Kingdom From Saint-Gobain Abrasives S.A. Saint-Gobain Abrasives Ltd. Free telephone numbers: Doxey Road...
- Page 20 Saint-Gobain Abrasives 190, Bd. J. F. Kennedy L-4930 BASCHARAGE LUXEMBOURG Tel: ++352 50401-1 Fax: ++352 501633 e-mail: sales.nlx@saint-gobain.com...
