- Page 1 CSB1 D13 HxW OPERATING INSTRUCTIONS...
- Page 3 Declaration of conformity The undersigned manufacturer: SAINT - GOBAIN ABRASIVES S.A. 190, BD J.F. KENNEDY L- 4930 BASCHARAGE Declares that this product: Floor saw (Code): CSB1 D13 HIW 70184613923) CSB1 D13 HMW 70184613924) is in conformity with the following Directives: ...
-
Page 5: Table Of Contents
CSB1 D13 HxW HATZ OPERATING INSTRUCTIONS Basic Safety Instructions Symbols Machine plate Safety instructions for particular operating phases General description of the CSB1 D13 Short description Layout Technical data Assembly and commissioning Tool assembly Water cooling system Starting the machine Transport and Storing Securing for transport Transport procedure... -
Page 6: Basic Safety Instructions
1 Basic Safety Instructions The CSB1 D13 is exclusively designed for the cutting of floors made of asphalt, green and cured concrete (reinforced or not) as well as of industrial cement. Uses other than the manufacturer's instructions shall be considered as contravening the regulations. The manufacturer shall not be held responsible for any resulting damage. -
Page 7: Machine Plate
1.2 Machine plate Important data can be found on the following plate located on the machine: 1.3 Safety instructions for particular operating phases Before commencing work Before commencing work, make yourself familiar with the working environment at the place of use. -
Page 8: General Description Of The Csb1 D13

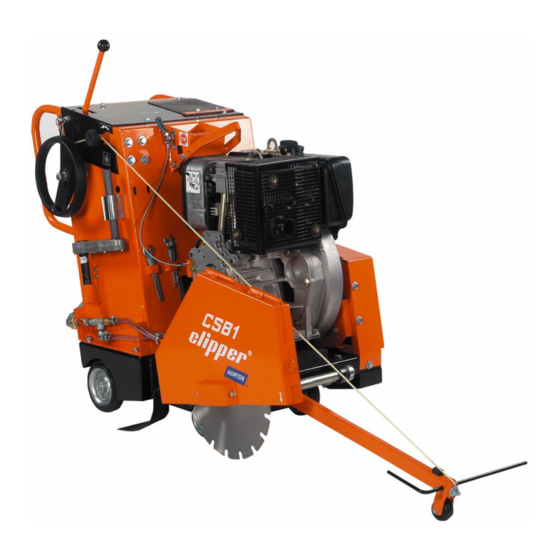

Any modification, which could lead to a change in the original characteristics of the machine, may be done only by Saint-Gobain Abrasives S.A. who shall confirm that the machine is still in conformity with the safety regulations. Saint-Gobain Abrasives S.A. keeps the right of making technical or design modification without prior notification. - Page 9 Made of jig welded open profile steel, the CSB1 D13 is stable but at the same time, easily transportable. The blade guard (1) fully protects the operator and his working environment. It is firmly fixed to the main frame but can be opened to change blades. The machine exists in two different types: hydraulic and manual.
- Page 10 Cooling air inlet Cylinder head cover Speed control lever Dry-type air cleaner Cold-start oil metering Oil filler pipe and dipstick Decompression lever Suspension lug Fuel filter Stop lever Tank filler cap Oil filter Cooling air outlet Oil drain plug, governor Type plate Silencer (muffler) housing...
-
Page 11: Technical Data
2.3 Technical data Engine Hatz 1D81Z, 13HP (9,5kW) Fuel Diesel complying with the following minimum specifications : EN590 or DIN15601 – DK or BS 2869 A1/A2 or ASTM D975 – 1D / 2D Oil (Motor) Oil complying with the following minimum specifications: CCMC –... -
Page 12: Assembly And Commissioning
3 Assembly and commissioning Before beginning the work with the CSB1 D13, you have to assemble some parts. 3.1 Tool assembly Only use NORTON blades with the CSB1 D13. A blade with a maximum diameter of 500 mm can be fitted. All tools used must be selected with regard to their maximum permitted cutting speed for the machine’s maximum permitted rotation speed. -
Page 13: Starting The Machine
3.3 Starting the machine Make sure the blade is raised clear up the ground before starting the machine, and that the clutch is disengaged. Set the control lever “1” to a position between Turn the decompression lever until stop “1” is ½... - Page 14 You must hold the tubular grip firmly to maintain contact all the time between the starting handle and the engine. Maintain turning force during the entire hand starting operation. If backfiring occurs when starting the engine because the crank handle was not turned firmly enough, the brief reverse rotation at the handle tube separates the link between crank lug “2”...
-
Page 15: Transport And Storing
4 Transport and Storing Take the following measures in order to transport and store the CSB1 D13 securely. 4.1 Securing for transport Before transporting the machine: Remove the blade. Empty the water tank. Raise the guide-a-cut in its upright position. ... -
Page 16: Operating The Csb1 D13
5 Operating the CSB1 D13 5.1 Site of work Before you start working, please check the following points: Remove from the site anything, which might hinder the working procedure. Make sure the site is sufficiently well lit. Make sure you have a continual adequate view of the working area so you can intervene in the working process at any time. -
Page 17: Maintenance And Service
6 Maintenance and service ATTENTION : to perform maintenance on the machine, always switch it off. 6.1 Maintenance of the machine To ensure a long-term quality from the cutting with the CSB1 D13, please follow the maintenance plan below: Regular service period Perform every indicated period... -
Page 18: Maintenance Of The Engine
otherwise you will damage this device. If you have an oil link on the hydraulic raise system (hydraulic machines only), eliminate the problem (for example by changing the joints), and refill with the recommended oil. Cleaning of the machine Your machine will last longer if you clean it thoroughly after each day of work. 6.2 Maintenance of the engine Regular service period Perform operating hour interval... - Page 19 Unscrew the oil drain plug and allow all the oil to drain out. Clean the oil drain plug and attach a new seal. Insert and tighten the plug. Renew the replaceable lubricating oil filter element (left picture). ...
- Page 20 Cleaning of the cooling air system Before cleaning, the engine must be stopped and allowed to cool down. Remove parts of air duct. Clean all air guide elements and the complete cooling air zones on the cylinder head, cylinder and flywheel blades without making them wet.
-
Page 21: Faults: Causes And Cures
7 Faults: causes and cures 7.1 Fault-finding procedures Should any fault occur during the use of the machine, turn it off. Let only qualified staff make any intervention other than the one described in the previous section. 7.2 Trouble-shooting guide Trouble Possible source Resolution... -
Page 22: Customer Service
In the case of a warranty is claim, the part must always be returned for evaluation. Spare parts for the engine can be ordered with the manufacturer of the engine or with their dealer, which is often quicker and cheaper. This machine has been manufactured by Saint-Gobain Abrasives S.A. 190, rue J.F.Kennedy L- 4930 BASCHARAGE Grand-Duché... - Page 23 Tel : 0116 2632 302 e-mail: sales.nlx@saint-gobain.com Fax : 0800 622 385 e-mail : nortondiamonduk@saint-gobain.com Germany Saint-Gobain Diamond Products GmbH Italy Birkenweg 45-49, Saint-Gobain Abrasivi S.p.A. D-50389 WESSELING Via per Cesano Boscone, 4 Tel : (02236) 8911 0 I-20094 CORSICO-MILANO...
- Page 24 Saint-Gobain Abrasives 190, Bd. J. F. Kennedy L-4930 BASCHARAGE LUXEMBOURG Tel: ++352 50401-1 Fax: ++352 501633 e-mail: sales.nlx@saint-gobain.com...
