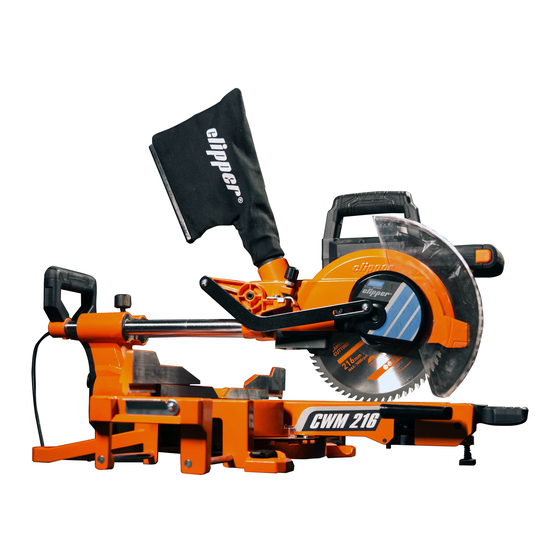

SAINT-GOBAIN NORTON Clipper CWM 216 Operating Instructions Manual
  1. Manuals
  2. Brands
  3. SAINT-GOBAIN Manuals
  4. Saw
  5. NORTON Clipper CWM 216
  6. Operating instructions manual

SAINT-GOBAIN NORTON Clipper CWM 216 Operating Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
CWM 216 / 254
OPERATING INSTRUCTIONS
Translation of the original instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NORTON Clipper CWM 216 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SAINT-GOBAIN NORTON Clipper CWM 216

Summary of Contents for SAINT-GOBAIN NORTON Clipper CWM 216

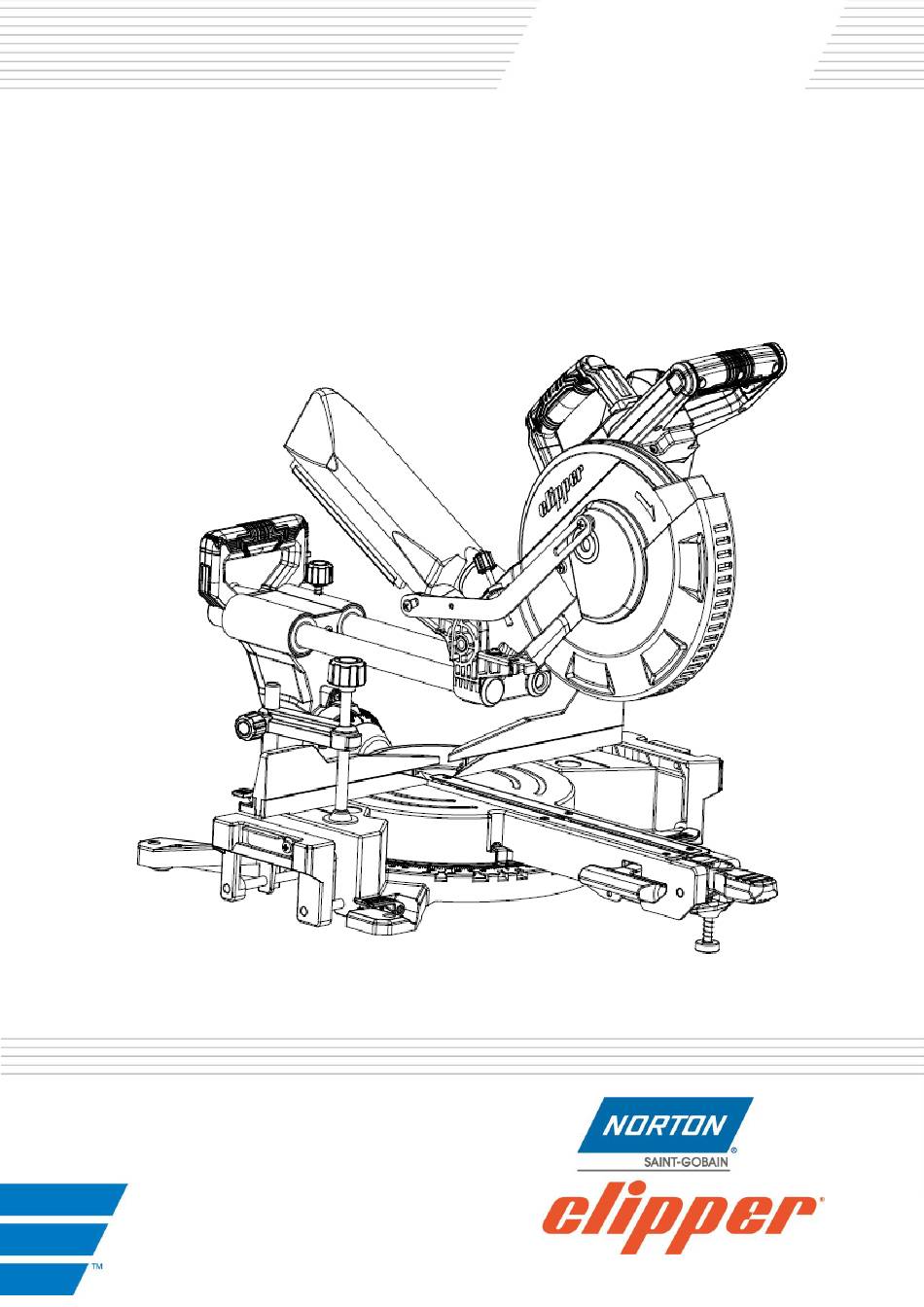

  • Page 1 CWM 216 / 254 OPERATING INSTRUCTIONS Translation of the original instructions...
  • Page 2 VERS. 04.12.2019 MAN CWM 216/254 EN...
  • Page 3 Valid for machines as of serial number: 4502790460 Storage site for the technical documents: Saint-Gobain Abrasives 190, Bd. J. F. Kennedy 4930 BASCHARAGE, LUXEMBOURG This declaration of conformity loses its validity when the product is converted or modified without agreement.
  • Page 4 VERS. 04.12.2019 MAN CWM 216/254 EN...

  • Page 5: Table Of Contents

    VERS. 04.12.2019 MAN CWM 216/254 EN CWM 216/254 OPERATING INSTRUCTIONS TABLE OF CONTENTS 1 BASIC SAFETY INSTRUCTIONS 1.1 Machine plate 1.2 Safety instructions for particular operating phases 1.3 Short description 1.4 Purpose of use 1.5 Layout 1.6 Technical data 1.7 Statement regarding noise emission 1.8 Electrical connections 1.9 Starting the machine 2 TRANSPORT AND STORING...

  • Page 6: Basic Safety Instructions

    VERS. 04.12.2019 MAN CWM 216/254 EN 1 BASIC SAFETY INSTRUCTIONS The CWM 216/254 are Professional sliding miter saws for cutting work pieces such as areas of laminate, parquet, decking and floor boards as well as for furniture construction parts in non-ferrous materials. Symbols Important warnings and pieces of advice are indicated on the machine using symbols.

  • Page 7: Machine Plate

    VERS. 04.12.2019 MAN CWM 216/254 EN Machine plate Important data can be found on the following plate located on the machine: Machine Code Machine Model Serial number Power Maximum blade diameter Blade speed and bore size Electrical Insulation Class II Recycling instruction...

  • Page 8: Safety Instructions For Particular Operating Phases

    VERS. 04.12.2019 MAN CWM 216/254 EN 1.2 Safety instructions for particular operating phases Before commencing work  Before commencing work, make yourself familiar with the working environment at the place of use. The working environment includes: obstacles in the area of work and manoeuvre, the firmness of the floor, necessary protection at the site relating to public thoroughfares and the availability of help in the event of accidents.

  • Page 9: Short Description

    MACHINES DESCRIPTION Any modification, which could lead to a change in the original characteristics of the machine, may be done only by Saint-Gobain Abrasives who shall confirm that the machine is still in conformity with the safety regulations. 1.3 Short description...
  • Page 10 VERS. 04.12.2019 MAN CWM 216/254 EN...
  • Page 11 VERS. 04.12.2019 MAN CWM 216/254 EN Operating position (fig A) 1. Push the operating handle (1) (step 1) downwards and disengage the locking bolt (24) from its locking position (step 2. Lift the operating handle (1) to its full height (step 3). Work piece Clamp (fig B) The work piece clamp (11) is pre-assembled.
  • Page 12 VERS. 04.12.2019 MAN CWM 216/254 EN Replacing saw blade (fig D, E, F) Follow these steps for replacing a worn or damaged saw blade: 1. Open the lower retractable blade guard (32) by hand to expose the locking screw (33a) of the guard mounting plate (33) (Fig.
  • Page 13 VERS. 04.12.2019 MAN CWM 216/254 EN Bench mounting There are 4 mounting holes (12) at each corner of the base (39) to facilitate bench mounting. 1. Place the miter saw over the workbench tabletop and mark four locations on top of the workbench that correspond to the mounting hole positions.
  • Page 14 VERS. 04.12.2019 MAN CWM 216/254 EN 2. Push the miter angle adjustment lever locking knob (18) left to lock the lever (Fig.K step 2). 3. Press the miter angle adjustment lever (21) downward again to release the locking knob (18) (Fig. K step Adjusting mitre bevel (fig L) 1.
  • Page 15 VERS. 04.12.2019 MAN CWM 216/254 EN 6. Tighten the locking nut (35b) (step 4). Adjusting slide cutting (fig N) 1. Use slide cutting to saw a work piece that is larger than the maximum cutting length of the saw blade. 2.
  • Page 16 VERS. 04.12.2019 MAN CWM 216/254 EN Adjusting fence (fig P) 1. Unlock the fence locking lever (37) (step 1). 2. Slide the fence (13) to desired position (step 2). 3. Lock the fence locking lever (37) (step 3). Ensure the saw blade does not interfere with the fence by conducting a “dry run” with the cutting head set to the required bevel and miter angle.
  • Page 17 VERS. 04.12.2019 MAN CWM 216/254 EN Switch on/off, Led Light and Laser (fig R,S) 1. Switch the LED light (25) on by pressing the “light” symbol of the LED light switch (2). 2. Switch the LED light off by pressing the “OFF” of the LED light switch. Use the laser as guide when cutting.

  • Page 18: Technical Data

    VERS. 04.12.2019 MAN CWM 216/254 EN 1.6 Technical data 1.7 Statement regarding noise emission The sound emission values have been obtained according to the noise test code given in EN 62841-1 and EN 62841-3-9. The noise for the operator may exceed 80 dB(A) and ear protection measures are necessary.

  • Page 19: Transport And Storing

    VERS. 04.12.2019 MAN CWM 216/254 EN 2 TRANSPORT AND STORING 2.1 Securing for transport Before transporting the machine, please follow the following instructions:  Switch the product off and disconnect it from the power supply.  Slide the cutting head fully forwards and tighten the slide locking knob (8) to avoid accidental sliding movement of the upper part.

  • Page 20: Operating The Machine

    VERS. 04.12.2019 MAN CWM 216/254 EN 3 OPERATING THE MACHINE 3.1 Installation 3.1.1 Information concerning the working site  Remove from the site anything, which might hinder the working procedure.  Make sure the site is sufficiently well lit.  Observe manufacturer's conditions for connecting to power supplies.

  • Page 21: Breakdown - Causes And Cures

    VERS. 04.12.2019 MAN CWM 216/254 EN 4 BREAKDOWN – CAUSES AND CURES 4.1 Breakdown-finding procedures Should any breakdown occur during the use of the machine, turn it off, and isolate it from the electrical supply. Any works dealing with the electrical system or supply of the machine can only be carried out by a qualified electrician.

  • Page 22: Customer Service

    Spare parts for the motor can be ordered with the manufacturer of the motor or with their dealer, which is often quicker and cheaper! This machine was sold by: Saint-Gobain Abrasives S.A.: 190, Bd. J. F. Kennedy L-4930 BASCHARAGE Grand-duché de Luxembourg Tel.

  • Page 23: Spare Parts

    VERS. 04.12.2019 MAN CWM 216/254 EN Spare parts In order to consult the spare parts lists, we invite you to visit the after-sales website of Norton Clipper by using the following address: https://spareparts.nortonabrasives.com For a quick access, you can also use the QR Code shown below using your mobile phone: This electronic catalogue provides exploded views and spare parts lists for different machines designed by Norton Clipper so you can find references you need.
  • Page 24 +47 63 87 06 01 SWEDEN GERMANY TEL: +46 8 580 881 00 TEL: +49 (0) 2236 703-1 SAINT-GOBAIN HPM POLSKA SP. Z O.O. FAX: +46 8 580 881 30 +49 (0) 2236 8996-0 UL. NORTON 1 +49 (0) 2236 8911-0 62-600 KOŁO...
