WARNING!
Read and understand the contents of this manual before attempting to service
Aramark Countertop or Refresh Center. Failure to follow the instructions in this manual
could result in death, serious personal injury, or severe property damage. Only trained and
qualified technicians should attempt to install, maintain, or service Waterlogic Equipment.
1. Visually inspect all electrical and water connections for signs of wear or damage.
DANGER!
HIGH VOLTAGE ELECTRICAL HAZARD. Unplug before inspection and service.
2. Waterlogic recommends changing the UV Lamp every 12 months.
NOTE:
When replacing the UV Lamp Assembly
wiring harness must also be replaced.
NOTE:
The Glow Starter shown to the right may appear blackened
which is normal.
*
If the Water Treatment System has an S2 Starter, it is fully interchangeable with the UV
Lamp with Glow Starter.

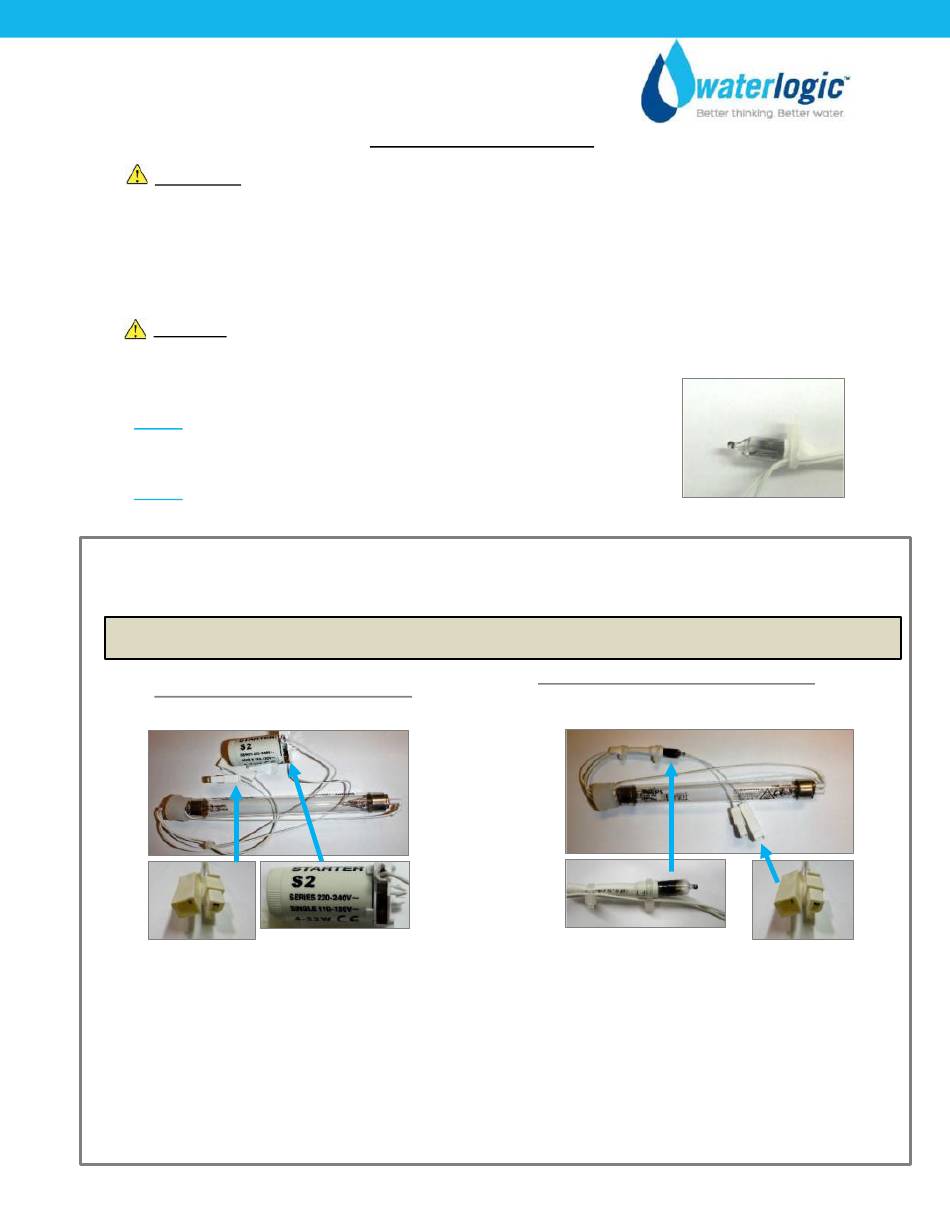

Switching from S2 Starter to existing Glow-Starter UV Lamp Assembly Instructions
UV Lamp Assembly with S2 Starter:
Not available as a repair part
UV Lamp Connectors
A. Disconnect Lamp Male and Female
Connection Clips from Ballast.
B. Remove the S2 Starter by pulling
upwards.
C. Remove UV Lamp.
ARAMARK Manual
SERVICE REQUIREMENTS
*
S2 Starter
, the UV Lamp
UV Lamp Assembly with Glow Starter Part #'s:
4-Watt Bulb 12-2350 (CT-2084)
8-Watt Bulb 10-2350 (CT-2083)
Glow Starter
D. Install Glow Starter UV Lamp.
E. Connect UV Lamp Male and Female
Connection Clips to Ballast.
Page 13 – Revision 10-31-21
UV Lamp Connectors
