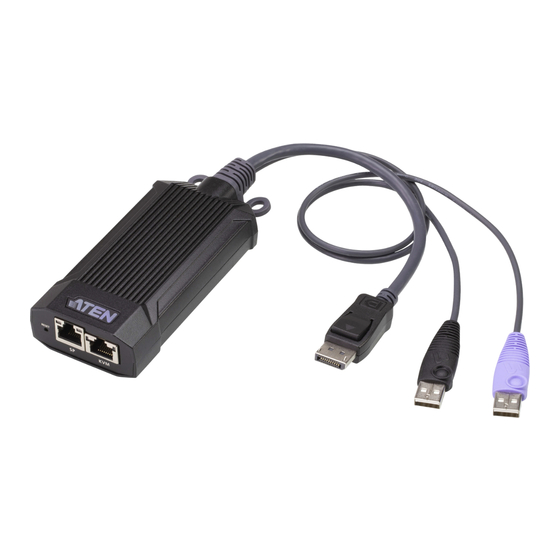

USB KVM DigiProcessor
KG9900T
Installation Guide
Package Contents
USB KVM DigiProcessor KG1900T / KG6900T / KG8900T / KG9900T
Qty
Description
1
USB KVM DigiProcessor KG1900T / KG6900T / KG8900T / KG9900T
1
user instructions
Installation
To connect a USB KVM DigiProcessor (KG1900T / KG6900T / KG8900T / KG9900T) to a KVM over IP OmniBus
Gateway (KG0016 / KG0032), follow the steps below.
Note: A KG8900T USB HDMI KVM DigiProcessor is used as an example to illustrate the procedure.
1.
Connect the USB and HDMI connectors of the USB KVM DigiProcessor to the corresponding ports on the PC you
are installing.
Connect the RJ-45 port (KVM port) of the USB KVM DigiProcessor to the KVM over IP OmniBus Gateway's
2.
(KG0016 / KG0032) KVM port via a Cat 5e/6 cable.
All information, documentation and specifications contained in this media are subject to change without prior notice by the manufacturer.
Please visit our website to find the most up-to-date version.
KG1900T / KG6900T / KG8900T /
1
Advertisement
Table of Contents
Related Manuals for ATEN DigiProcessor KG9900T
Summary of Contents for ATEN DigiProcessor KG9900T
- Page 1 KG1900T / KG6900T / KG8900T / USB KVM DigiProcessor KG9900T Installation Guide Package Contents USB KVM DigiProcessor KG1900T / KG6900T / KG8900T / KG9900T Description USB KVM DigiProcessor KG1900T / KG6900T / KG8900T / KG9900T user instructions Installation To connect a USB KVM DigiProcessor (KG1900T / KG6900T / KG8900T / KG9900T) to a KVM over IP OmniBus Gateway (KG0016 / KG0032), follow the steps below.
- Page 2 You can secure the USB KVM DigiProcessor to a rack using a cable tie, a screw and a cage nut, or a magic tape. ● Securing the USB KVM DigiProcessor using a cable tie Use a self-prepared cable tie, insert the tail through the SR mounting hanger, connect the tail to the strap channel and then tighten the strap to a rack.
- Page 3 Compliance Statements FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
