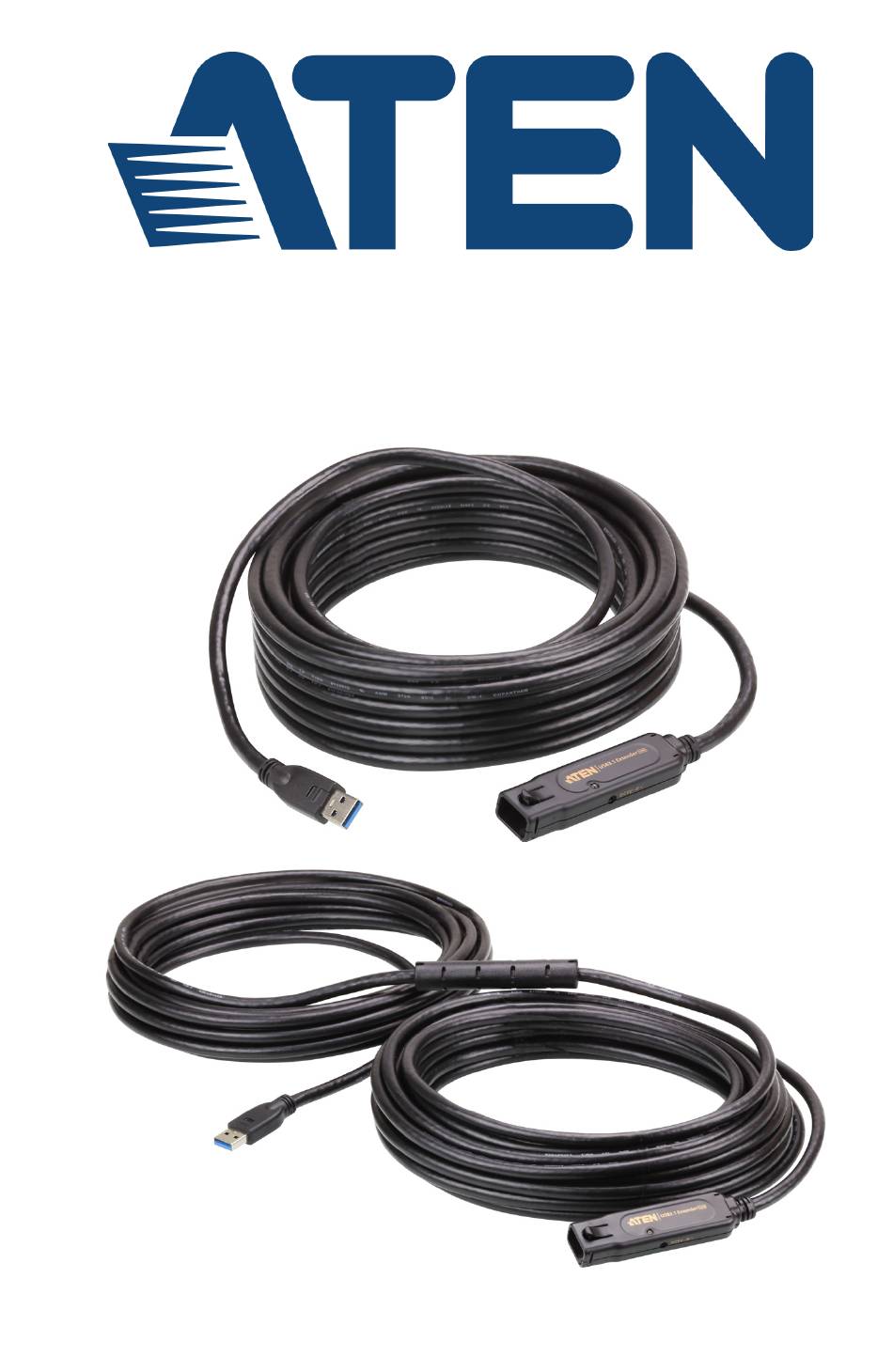

- Page 1 USB 3 Extender Cable UE3310 / UE3315A User Manual www.aten.com...
-
Page 2: Emc Information
UE3310 / UE3315A User Manual EMC Information FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT: This equipment has been tested and found to comply with the limits for a Class B digital service, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 3: User Information
UE3310 / UE3315A User Manual User Information Online Registration Be sure to register your product at our online support center: International http://eservice.aten.com Telephone Support For telephone support, call this number: International 886-2-8692-6959 China 86-400-810-0-810 Japan 81-3-5615-5811 Korea 82-2-467-6789 North America... -
Page 4: Package Contents
UE3310 / UE3315A User Manual Package Contents 1 UE3310 / UE3315A USB 3 Extender Cable 1 Power Adapter 1 Extension Cable 1 User Instructions Note: Make sure that ll of the components are present and in good order. If anything is missing or was damaged in shipping, contact your dealer. -
Page 5: Table Of Contents
Requirements ..........1 The UE3310 / UE3315A Top View ....... 2 The UE3310 / UE3315A Side View. -
Page 6: About This Manual
UE3310 / UE3315A User Manual About this Manual This user manual is provided to help you get the most from the UE3310 / UE3315A unit. It covers all aspects of installation, configuration, and operation. An overview of the information found in the manual is provided below. -
Page 7: Conventions
For information about all ATEN products and how they can help you connect without limits, visit ATEN on the Web or contact an ATEN Authorized Reseller. Visit ATEN on the Web for a list of locations and telephone numbers: International http://www.aten.com... - Page 8 UE3310 / UE3315A User Manual This Page Intentionally Left Blank viii...
-
Page 9: Introduction

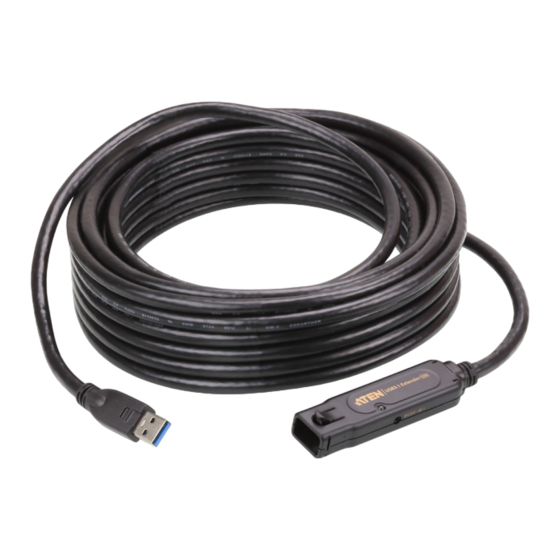

Introduction Overview The ATEN UE3310 / UE3315A USB 3 Extender Cable allows you to extend the distance between your computer and your USB peripherals by 10 / 15 meters. Unlike typical cables the UE3310 / UE3315A is an active extension cable. -
Page 10: The Ue3310 / Ue3315A Top View
TYPE DESCRIPTION USB Connector Connect the USB peripherals to the USB Connector. Power LED LED lights green when power is on and the UE3310 / UE3315A is connected. AC Power Use this port to connect a power adapter. Adapter Port USB lock Used to connect to the host device (computer). -
Page 11: Hardware Setup
Hardware Setup Please review the safety information regarding the placement of this device in Safety Instructions, page 5. Connecting the UE3310 / UE3315A Unit Follow the steps below to connect the UE3310 / UE3315A units. UE3310 Max. 50m UE3315A Max. 30m... -
Page 12: Daisy Chaining
The maximum number of cables that can be daisy chained together is dependent on cable model number. The UE3310 can connect a total of 5 cables and the UE3315A can connect a total of 2 cables. The UE3310 and UE3315A can be combined together using a daisy chain set up. -
Page 13: Appendix
Appendix Safety Instructions General This product is for indoor use only. Read all of these instructions. Save them for future reference. Follow all warnings and instructions marked on the device. Do not place the device on any unstable surface (cart, stand, table, etc.). If the device falls, serious damage will result. - Page 14 UE3310 / UE3315A User Manual If the following conditions occur, unplug the device from the wall outlet and bring it to qualified service personnel for repair. The power cord or plug has become damaged or frayed. Liquid has been spilled into the device.
-
Page 15: Technical Support
Support Documentation Software Updates Telephone Support 1-888-999-ATEN ext 4988 1-949-428-1111 When you contact us, please have the following information ready beforehand: Product model number, serial number, and date of purchase Your computer configuration, including operating system, revision level, expansion cards, and software ... -
Page 16: Specifications
UE3310 / UE3315A User Manual Specifications Function UE3310 UE3315A Connectors 1 x USB 3 Type A Male (Blue) 1 x USB 3 Type A Male (Blue) upstream 1 x USB 3 Type A Female (Blue) 1 x USB 3 Type A Female (Blue) -
Page 17: Limited Warranty
What is covered by the Limited Hardware Warranty ATEN will provide a repair service, without charge, during the Warranty Period. If a product is detective, ATEN will, at its discretion, have the option to (1) repair said product with new or repaired components, or (2) replace the entire product with an identical product or with a similar product which fulfills the same function as the defective product.
