ATEN Lok-u-Plug 2X-EA07 Installation Manual

Lok-u-Plug Cable Holder
Lok-u-Plug Installation Tool
Installation Guide
Package Contents
2X-EA07
Qty Description
10 Lok-u-Plug Cable Holder
1 installation instructions (printed on packaging)
The ATEN-patented Lok-u-Plug secures your power cables in place on an ATEN PDU device to prevent undesired
disconnection in events such as device repositioning and movement. For Lok-u-Plug securing, the Lok-u-Plug Cable
Holder (2X-EA07), must be used in conjunction with the Lok-u-Plug Installation Tool (2X-EA08).
Installation
To secure a power cable in place, using a Lok-u-Plug Cable Holder and Installation Tool, do the following:

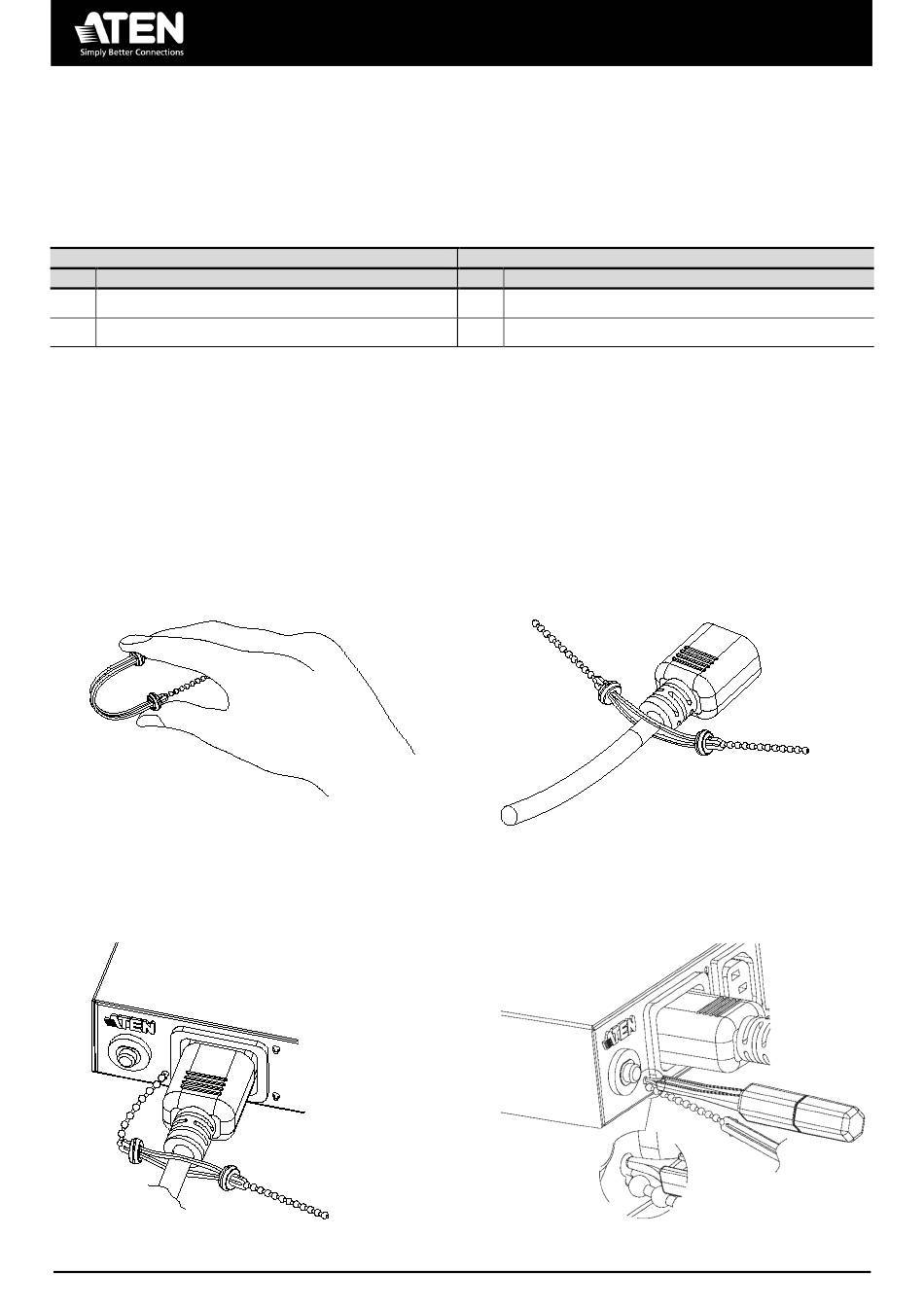

1. Bend a Lok-u-Plug Cable Holder, and put the power cord to be secured through the middle of the Cable Holder as
shown.
2. Plug the power cord into the PDU's power outlet,
and thread one end of the Lok-u-Plug Cable Holder
into the lower left hole next to the power outlet.
All information, documentation and specifications contained in this media are subject to change without prior notice by the manufacturer.
Please visit our website to find the most up-to-date version.
2X-EA07
2X-EA08
Qty Description
4 Lok-u-Plug Installation Tool
1 installation instructions (printed on packaging)
3. Using a Lok-u-Plug Installation Tool, lock the part of
the Cable Holder inserted into the hole by pushing it
towards the small part of the hole.
03/2021 V1.0
2X-EA08
