Summary of Contents for ATEN VS0102

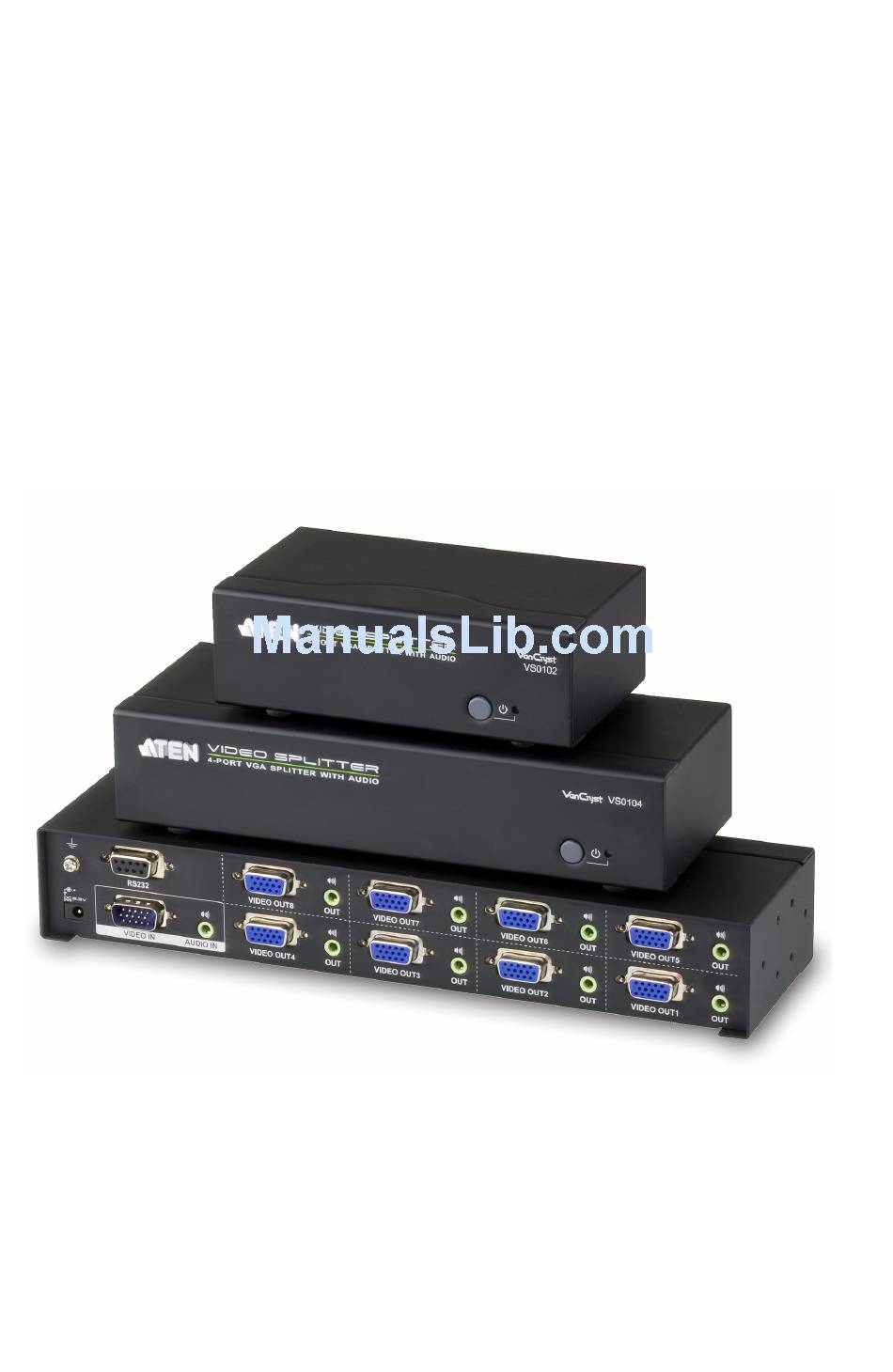

- Page 1 2/4/8-Port VGA Splitter with Audio VS0102 / VS0104 / VS0108 User Manual www.aten.com...
-
Page 2: Fcc Information
VS0102 / VS0104 / VS0108 User Manual FCC Information This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 3: User Information
VS0102 / VS0104 / VS0108 User Manual User Information Online Registration Be sure to register your product at our online support center: International http://support.aten.com North America http://www.aten-usa.com/product_registration Telephone Support For telephone support, call this number: International 886-2-8692-6959 China 86-10-5255-0110 Japan... -
Page 4: Package Contents
* Features may have been added to the VS0102 / VS0104 / VS0108 since this manual was published. Please visit our website to download the most up-to- date version. -
Page 5: Table Of Contents
VS0102 Rear View ........ - Page 6 VS0102 / VS0104 / VS0108 User Manual Verification ..........19 Powering Off and Restarting.
-
Page 7: About This Manual
An overview of the information found in the manual is provided below. Chapter 1, Introduction, introduces you to the VS0102 / VS0104 / VS0108 system. Its purpose, features and benefits are presented, and its front and back panel components are described. -
Page 8: Conventions
For information about all ATEN products and how they can help you connect without limits, visit ATEN on the Web or contact an ATEN Authorized Reseller. Visit ATEN on the Web for a list of locations and telephone numbers: International http://www.aten.com... -
Page 9: Introduction
Chapter 1 Introduction Overview The ATEN VS0102 / VS0104 / VS0108 2/4/8-Port VGA Splitter with Audio are VGA splitters that allow a single VGA video & audio signal to be distributed to two, four, or eight output displays with independent stereo control. -
Page 10: Features
RS-232 chain control – use RS-232 commands to control cascaded devices via VGA cable* Supports stereo audio Plug-and-play – no software installation required Note: The VS0102 / VS0104 / VS0108 AP and GUI operational instructions can be downloaded from the ATEN website (www.aten.com). -
Page 11: Requirements
Chapter 1. Introduction Requirements Source Device The following equipment must be installed on the source device or computer that acts as a source of VGA/Audio content: VGA video card with HDB-15 connector Audio source with stereo output Display Device A VGA, SVGA, UXGA, WUXGA or multisync monitor or multimedia projector with an HDB-15 connector Stereo and/or balanced audio speakers Cables... -
Page 12: Components

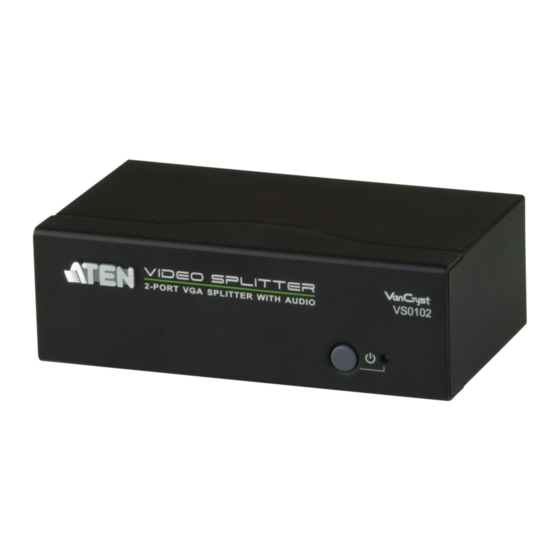

VS0102 / VS0104 / VS0108 User Manual Components VS0102 / VS0104 / VS0108 Front View Component Function Power Pushbutton Push this button to turn on / off the switch. Power LED The LED (green) lights up when the switch is pow- ered on. -
Page 13: Vs0104 Rear View
Chapter 1. Introduction VS0104 Rear View VS0108 Rear View Component Function Grounding Terminal The grounding wire used to ground the unit attaches here. RS-232 Serial Port This is the serial remote port for input source selection and high-end system control. Video / Audio Each video output section is comprised of a VGA Output... -
Page 14: Hardware Setup
Rack Mounting For convenience and flexibility, the VS0102 / VS0104 / VS0108 can be mounted on system racks. To rack mount a unit do the following: 1. Using the screws provided in the Rack Mount Kit, screw the mounting... -
Page 15: Grounding
To prevent damage to your installation it is important that all devices are properly grounded. 1. Use a grounding wire to ground the VS0102 / VS0104 / VS0108 by connecting one end of the wire to the grounding terminal, and the other end of the wire to a suitable grounded object. -
Page 16: Installation
VS0102 / VS0104 / VS0108 User Manual Installation Single Stage Installation of the VS0102 / VS0104 / VS0108 is simply a matter of plugging in the appropriate cables. To install the splitter, refer to the installation diagram on page 10 as you perform the following steps: 1. -
Page 17: Installing The Rs-232 Controller
In order to use the RS-232 serial interface to attach a high-end controller (such as a PC) to the splitter, use a RS-232 serial cable. The end connecting to the VS0102 / VS0104 / VS0108 should have a 9-pin male connector. Refer to step 5 on the diagram above. -
Page 18: Cascade
Source to VS0102 / VS0104 / VS0108: 1.8 m VS0102 / VS0104 / VS0108 to VS0102 / VS0104 / VS0108: 15 m VS0102 / VS0104 / VS0108 to monitor: 65 m Note: In the diagram above any output port not connecting the cascade is... -
Page 19: Operation
Operation Overview The VS0102 / VS0104 / VS0108 2/4/8-Port VGA Splitter with Audio offers simple plug and play operation. To use the splitter, simply connect your hardware as instructed in Chapter 2, power on all devices in your setup, and the splitter expands your source signal across two (VS0102), four (VS0104), or eight (VS0108) video displays. -
Page 20: Switch Port Commands
VS0102 / VS0104 / VS0108 User Manual Switch Port Commands The formula for Switch Port commands are as follows: 1. Switch Command + Output Command + Port Number + Control [Enter] For example, to turn on output port 02, type the following:... -
Page 21: Command For Cascaded Splitters
Chapter 3. Operation Command for Cascaded Splitters Serial port commands for cascaded splitters require identifying the chain of ports to which the target device is connected. The formula for Switch Port commands are as follows: Switch Command + Output Command + Port Number (at first stage) + Port Number (at second stage) + Port Number (at third stage) + Control [Enter] Target Output... -
Page 22: Edid Mode Selection Commands
Extended Display Identification Data (EDID) is a data format that contains a display's basic information and is used to communicate with the video source system. You can set up which EDID mode the VS0102 / VS0104 / VS0108 uses with the commands that follow. -
Page 23: Mute Commands
Chapter 3. Operation Mute Commands To enable or disable audio coming from the output port, use the following commands. The formula for the Mute commands are as follows: Mute Command + Output Command + Port Number + Control [Enter] For example, to turn mute on for port 04, type the following: mute o04 on [Enter] The following tables show the possible values and formats for the Output Command, Port Number, and Control command:... -
Page 24: Firmware Update Command
VS0102 / VS0104 / VS0108 User Manual Firmware Update Command The Firmware Update feature readies the VS0102 / VS0104 / VS0108 for a firmware upgrade. The formula for the Firmware Update command is as follows: Command [Enter] For example, to start the firmware upgrade process, input the following:... -
Page 25: Read Command
Chapter 3. Operation Read Command The Read command allows you to read information about the VS0102 / VS0104 / VS0108. The formula for the Read commands are as follows: Read Command + Output Command + Port Number + Control Command... -
Page 26: Reset Device Command
[Enter] Read all port audio on/off status Reset Device Command The Reset feature resets the VS0102 / VS0104 / VS0108 back to the factory default settings. The formula for the Rest commands are as follows: Command [Enter] For example, to reset port 02 back to the factory default settings, input the... -
Page 27: Verification
- indicates that the command has the wrong format and/or values. Powering Off and Restarting If you power off the VS0102 / VS0104 / VS0108, follows these steps before powering it on again: 1. Power off the attached devices. -
Page 28: Appendix
Appendix Safety Instructions General Read all of these instructions. Save them for future reference. Follow all warnings and instructions marked on the device. Do not place the device on any unstable surface (cart, stand, table, etc.). If the device falls, serious damage will result. Do not use the device near water. - Page 29 Appendix If an extension cord is used with this device make sure that the total of the ampere ratings of all products used on this cord does not exceed the extension cord ampere rating. Make sure that the total of all products plugged into the wall outlet does not exceed 15 amperes.
- Page 30 VS0102 / VS0104 / VS0108 User Manual Rack Mounting Before working on the rack, make sure that the stabilizers are secured to the rack, extended to the floor, and that the full weight of the rack rests on the floor. Install front and side stabilizers on a single rack or front stabilizers for joined multiple racks before working on the rack.
-
Page 31: Technical Support
Appendix Technical Support International For online technical support – including troubleshooting, documentation, and software updates: http://support.aten.com For telephone support, Telephone Support, page iii: North America Email Support support@aten-usa.com Online Troubleshooting http://www.aten-usa.com/support Technical Documentation Support Software Updates Telephone Support 1-888-999-ATEN ext 4988 When you contact us, please have the following information ready beforehand: Product model number, serial number, and date of purchase. -
Page 32: Specifications
VS0102 / VS0104 / VS0108 User Manual Specifications Function VS0102 VS0104 VS0108 Display Connections Connectors Input Video 1 x HDB-15 Male (Blue) Audio 1 x Mini Stereo Jack Female (Green) Output Video 2 x HDB-15 4 x HDB-15 8 x HDB-15... -
Page 33: Limited Warranty
Appendix Limited Warranty IN NO EVENT SHALL THE DIRECT VENDOR'S LIABILITY EXCEED THE PRICE PAID FOR THE PRODUCT FROM DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE PRODUCT, DISK, OR ITS DOCUMENTATION. The direct vendor makes no warranty or representation, expressed, implied, or statutory with respect to the contents or use of this documentation, and especially disclaims its quality, performance, merchantability, or fitness for any particular purpose.
