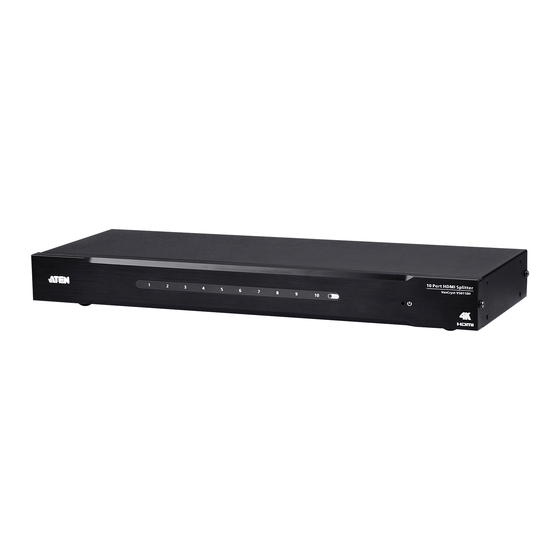

- Page 1 10-Port 4K HDMI Splitter VS0110HA User Manual www.aten.com...
-
Page 2: Emc Information
© Copyright 2020 ATEN® International Co., Ltd. Manual Date: 2020-12-16 ATEN and the ATEN logo are registered trademarks of ATEN International Co., Ltd. All rights reserved. All other brand names and trademarks are the registered property of their respective owners. The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. -
Page 3: User Information
VS0110HA User Manual User Information Online Registration Be sure to register your product at our online support center: International http://eservice.aten.com Telephone Support For telephone support, call this number: International 886-2-8692-6959 China 86-400-810-0-810 Japan 81-3-5615-5811 Korea 82-2-467-6789 North America 1-888-999-ATEN ext 4988... -
Page 4: Package Contents
VS0110HA User Manual Package Contents 1 VS0110HA 10-Port 4K HDMI Splitter 1 Power Adapter 1 Rack Mount Kit 1 User Instructions Note: Make sure that all of the components are present and in good order. If anything is missing or was damaged in shipping, contact... -
Page 5: Table Of Contents
Restarting the VS0110HA........13... -
Page 6: About This Manual
VS0110HA User Manual About this Manual This user manual is provided to help you get the most from the VS0110HA. It covers all aspects of installation, configuration, and operation. An overview of the information found in the manual is provided below. -
Page 7: Conventions
VS0110HA User Manual Conventions This manual uses the following conventions: Indicates text that you should key in. Monospaced Indicates keys you should press. For example, [Enter] means to press the Enter key. If keys need to be chorded, they appear together in the same bracket with a plus sign between them: [Ctrl+Alt]. -
Page 8: Product Information
VS0110HA User Manual Product Information For information about all ATEN products and how they can help you connect without limits, visit ATEN on the Web or contact an ATEN Authorized Reseller. Visit ATEN on the Web for a list of locations and telephone numbers: International http://www.aten.com... -
Page 9: Introduction
Chapter 1 Introduction Overview The VS0110HA 4K HDMI Splitter is a perfect solution for applications that require sending one source of high-definition 4K video to ten displays at the same time. The HDMI interface caters to most mainstream sources and sinks, such as DVD players, satellite set-top boxes, and any HDMI displays. -
Page 10: Features
Chapter 1. Introduction Features Connects one HDMI source to up to ten HDMI displays at the same time HDMI (3D, Deep color, 4K); HDCP 1.4 compliant Superior video quality – up to 4K resolutions (4096 x 2160 @ 60Hz; 4:2:0) ... -
Page 11: Planning The Installation
1 ~ 10 HDMI cables to connect the VS0110HA to the display devices Note: You can connect a DVI source to the VS0110HA via a DVI to HDMI adapter. ATEN strongly recommends that you use high-quality HDMI cables of appropriate length since this will affect the quality of the audio and video output. - Page 12 Chapter 1. Introduction This Page Intentionally Left Blank...
-
Page 13: Hardware Setup
Input Port LED Lights to indicate that there is a working connection to the source device (i.e., computer). Power LED Lights to indicate that the VS0110HA is receiving power and is up and running. -
Page 14: Rear View
Turn this switch to select the EDID mode (0~7). See “EDID Mode Selection” on page 10. Firmware Upgrade This port is reserved for ATEN Technical Support. If you Port would like to do a firmware upgrade yourself, please contact your dealer. -
Page 15: Rack Mounting
VS0110HA User Manual Rack Mounting The VS0110HA can be mounted in a 19” (1U) system rack. For the most convenient front panel pushbutton configuration and operation at the local site, mount the unit at the front of the rack, as follows: 1. -
Page 16: Installation
2. Do not power on the VS0110HA and the connected devices until all the necessary hardware is connected. Follow the steps below to safely connect the required devices to the VS0110HA. 1. Use a grounding wire to ground the unit by connecting one end of the wire to the grounding terminal, and the other to a suitable grounded object. -
Page 17: Operation
Chapter 3 Operation Overview You can operate the VS0110HA using the panel pushbuttons or an RS-232 serial controller. The availability of actions with the two methods is summarized in the table below. Operation Methods Action Rotary Switch Serial Controller Switch Port... -
Page 18: Edid
Modes (0~7) as follows: 0 (Port 1) - Implements the EDID of the connected display to Port 1, and passes it to the video source. The VS0110HA is able to copy the EDID of any connected display to the input source. ... -
Page 19: Serial Control Protocol Commands
3840 x 2160 @ 30 Hz, 2 ch audio 3840 x 2160 @ 60 Hz, 2 ch audio Serial Control Protocol Commands The VS0110HA’s built-in bi-directional RS-232 serial interface allows system control through a high-end controller or PC. Configuring the Serial Port The controller’s serial port should be configured as follows:... -
Page 20: Rs-232 Commands
Implement ATEN default edid defaultyy Implements the specified ATEN default EDID EDID configuration. yy: 00-09, default is 00 (see ATEN Default EDID, page 10) Baud Rate Setting Set up the baud rate baud <baud_rate_value> For example, to set the baud rate to 9600,... -
Page 21: Firmware Upgrade
EDID switch is not set to Mode 3 (see EDID Mode Selection, page 10). Firmware Upgrade Go to ATEN’s website and choose the model name of your device (VS0110HA) to download the latest firmware upgrade package to a computer, and then do the following steps: 1. - Page 22 Chapter 3. Operation This Page Intentionally Left Blank...
-
Page 23: Appendix
Appendix Safety Instructions General This product is for indoor use only. Read all of these instructions. Save them for future reference. Follow all warnings and instructions marked on the device. Do not place the device on any unstable surface (cart, stand, table, etc.). If the device falls, serious damage will result. - Page 24 Appendix Never push objects of any kind into or through cabinet slots. They may touch dangerous voltage points or short out parts resulting in a risk of fire or electrical shock. Do not attempt to service the device yourself. Refer all servicing to qualified service personnel.
-
Page 25: Rack Mounting
VS0110HA User Manual Rack Mounting Before working on the rack, make sure that the stabilizers are secured to the rack, extended to the floor, and that the full weight of the rack rests on the floor. Install front and side stabilizers on a single rack or front stabilizers for joined multiple racks before working on the rack. -
Page 26: Technical Support
Support Documentation Software Updates Telephone Support 1-888-999-ATEN ext 4988 When you contact us, please have the following information ready beforehand: Product model number, serial number, and date of purchase Your computer configuration, including operating system, revision level, expansion cards, and software ... -
Page 27: Specifications
VS0110HA User Manual Specifications Function Specifications Video Input Interfaces 1 x HDMI Type A Female (Black) Impedance 100 Ώ Max. Distance 5m (at 4K resolution) Video Output Interfaces 10 x HDMI Type A Female (Black) Impedance 100 Ώ Max. Distance... - Page 28 Appendix Function Specifications Video Output 10 x LED (Green) Power 1 x LED (Green) Power Consumption DC5V:4.34W:20BTU Environmental Operating Temperature 0 - 40°C Storage Temperature -20 - 60°C Humidity 0 - 80% RH, Non-Condensing Physical Properties Housing Metal Weight 2.10 Kg (4.63 lb) Dimensions (L x W x H) 43.72 x 15.78 x 4.40 cm (17.21 x 6.21 x 1.73 in.)
-
Page 29: Limited Warranty
ATEN will provide a repair service, without charge, during the Warranty Period. If a product is detective, ATEN will, at its discretion, have the option to (1) repair said product with new or repaired components, or (2) replace the entire product with an identical product or with a similar product which fulfills the same function as the defective product.
