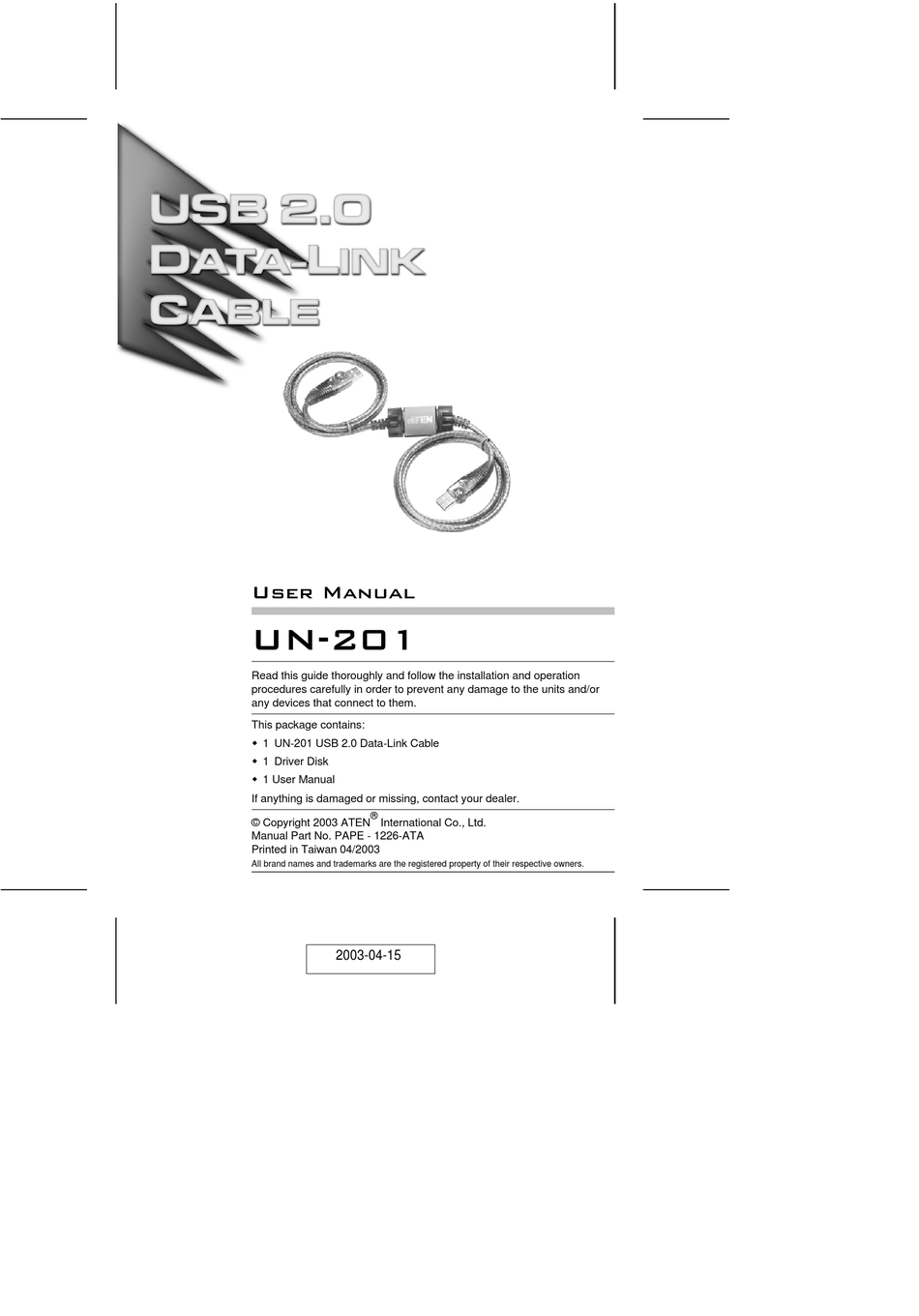

User Manual
UN-201
Read this guide thoroughly and follow the installation and operation
procedures carefully in order to prevent any damage to the units and/or
any devices that connect to them.
This package contains:
M 1 UN-201 USB 2.0 Data-Link Cable
M 1 Driver Disk
M 1 User Manual
If anything is damaged or missing, contact your dealer.
®
© Copyright 2003 ATEN
International Co., Ltd.
Manual Part No. PAPE - 1226-ATA
Printed in Taiwan 04/2003
All brand names and trademarks are the registered property of their respective owners.
2003-04-15
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ATEN UN-201
Summary of Contents for ATEN UN-201
-
Page 1: User Manual
This package contains: M 1 UN-201 USB 2.0 Data-Link Cable M 1 Driver Disk M 1 User Manual If anything is damaged or missing, contact your dealer. - Page 2 Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 3 Prior to the UN-201, this type of networking was carried out on a very limited basis through slow parallel port connections, or else required setting up an expensive network that involved the complicated installation and configuration of network expansion cards.
- Page 4 M Link up to 17 computers Requirements M IBM Compatible PC M Windows 98SE/Me/2000/XP M USB 2.0 Host Controller installed on the system* * The UN-201 will also work with USB 1.1 host controllers, but only at 1.1 speeds. - 2 - 2003-04-15...
-
Page 5: Driver Installation
2. In the left panel select Microsoft; in the right panel select Client for Microsoft Networks; Click on OK 3. Follow the on-screen instructions to complete the installation. Two peer networking drivers are provided with the UN-201 USB 2.0 Data-Link Cable: M SuperLink... - Page 6 SuperLink Driver Installation The SuperLink driver provides PC-to-PC file transfers between two computers. To install the SuperLink driver: 1. Unzip the driver file archive located on the driver disk that came with this package into a temporary directory on your system.
- Page 7 Transferring Files The installation program puts a SuperLink icon on the desktop. To initiate a file transfer, Click the SuperLink icon on each computer. A window with two panels, similar to the one below, appears: The Local computer’s drives and directories appear in the top panel;...
- Page 8 Basic Peer Networking: Basic peer networking allows the members of the Data-Link network to share resources among themselves. To set up your peer network, do the following: 1. Unzip the driver file archive located on the driver disk that came with this package into a temporary directory on your system.
- Page 9 5. When prompted, click on Finish to complete the installation. When the driver installation process has completed, the installation program directs you to reboot the computer. Remove the driver disk from the drive and restart Windows. 6. Repeat the above for each computer you want to install on the peer network.
- Page 10 Sharing Resources: To share resources, do the following: 1. Open Windows Explorer 2. Navigate to the drive, folder, file, or peripheral (printer, scanner, etc.), that you want to share; Right Click on it; select Sharing. 3. Select Shared As, and key in the Shared Name that the other computers will use to access it.
- Page 11 Peer Networking plus Bridging to an Ethernet LAN: Bridge Peer Network Peer networking plus bridging to an Ethernet LAN gives the members of the Data-Link network access all the services made available to the Ethernet LAN - such as file and print, company Intranet, and Internet.
- Page 12 To set up the Bridge computer: 1. Power up the computer you have chosen to serve as the Bridge, and log onto the Ethernet LAN. 2. Install the Virtual Network driver as described under Basic Peer Networking (p. 6, above), except that if asked whether you want to install the Network Bridge, Click on Yes.
- Page 13 M Win 2000: 1. Open the Control Panel: My Computer > Control Panel 2. Open Network and Dial-up Connections 3. Right click on Local Area Connection; select Properties 4. Select the Sharing tab; check Enable Internet Connection Sharing for this connection; Click OK. M Win Me: 1.
-
Page 14: Uninstalling The Drivers
Setup Complete: Once the setup of the Bridge computer has been completed, and it is logged into the Ethernet LAN, members of the Data-Link Workgroup can: M See all the computers on both networks (the Data-Link network and the Ethernet LAN), in the Network Neighborhood folder. -
Page 15: Specifications
Specifications Function Specification Connectors 2 x USB Type A plugs Cable Length 1.8m Windows 98/98SE/2000/Me/XP Data Transfer Rate Up to 480Mbps USB Specs. USB 2.0 compatible Power Mode Bus Powered Environment Operating Temp: 0 ~ 50 Storage Temp: -20 ~ 60 Humidity: 0 ~ 80% RH, Noncondensing Housing Plastic... - Page 16 Notes - 14 - 2003-04-15...
