ATEN VS0108H - 8-Port HDMI Splitter User Guide

Package Contents

1 VS 0108 H 8-Port HDMI Splitter
1 Power Adapter
1 Rack Mount Kit
1 User Guide

Requirements

Source Device

The following equipment must be installed on the device or computer that acts as the source of HDMI content:

• HDMI Type A output connector(s)

Display Device

• A display device or receiver with an HDMI Type A input connector for each output port you will be installing

Cables

• HDMI cable for the source device
• HDMI cables for each output port you will be installing

Notes:

1. A DVI/HDMI adapter is required when connecting to a DVI source or display device.
2. If a DVI/HDMI adapted is used, audio is not supported.
3. We recommend using high-quality cables when cascading HDMI splitters to maintain a strong signal.

Hardware Review

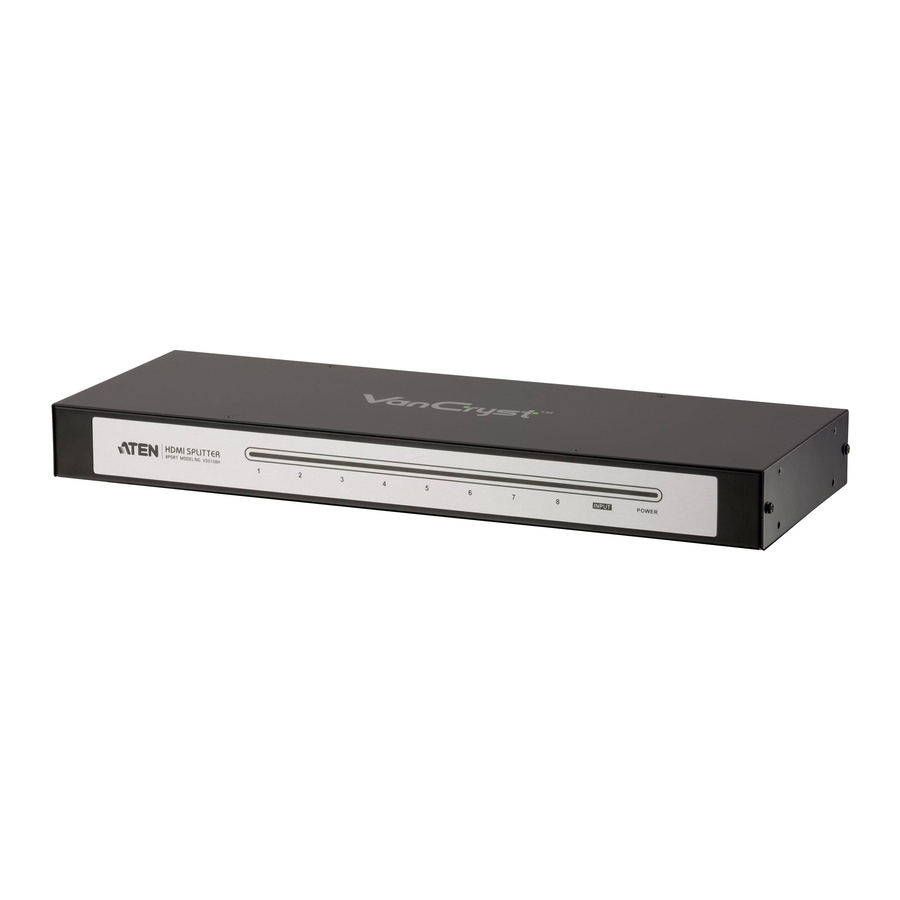

Front View

1. Port Output LEDs
2. Input LED
3. Power LED

Rear View

4. HDMI Input Port
5. Power Jack
6. HDMI Output Ports

Hardware Installation

Single Stage Installation

Refer to the installation diagram and do the following:

1. Use a Male-to-Male Type A HDMI cable to connect your computer or HDMI source device to the VS0108H's HDMI Input port.
2. Use up to eight Male-to-Male Type A HDMI cables to connect up to eight HDMI display devices to the VS0108H's Output ports.
3. Plug the power adapter that came with the VS0108H package into an AC power source, the plug the power adapter cable into the splitter's Power Jack.

Note: The VS0108H will automatically detect the lowest resolution of any monitor in the installation.

Cascading

To provide even more HDMI displays, additional units can be cascaded from the VS0108H's Output ports. Simply use additional Male-to-Male Type A HDMI cables to connect an Output port on the parent splitter to the Input port on the child splitter.

Recommended distances between devices in all cascade levels for transmitting a high resolution signal are as follows:

Source to VS0108H - 1.8 m
VS0108H to VS0108H - 15m
VS0108H to display - 20 m

HDCP Limitation in Cascade

If your HDMI content is HDCP-enabled, the VS0108H will only support the number of displays that there are HDCP keys available (127 displays). If your HDMI content is not HDCP-enabled, the VS0108H supports a full three-level cascade (512 displays).

Specifications

FCC Information

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instruction manual, may cause interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna;
• Increase the separation between the equipment and receiver;
• Connect the equipment into an outlet on a circuit different from that which the receiver is connected;
• Consult the dealer/an experienced radio/television technician for help.

Online Registration

International:
http://support.aten.com

North America:
http://www.aten-usa.com/product_registration

Technical Phone Support

International:
886-2-86926959

North America:
1-888-999-ATEN (ATEN TECH)
1-732-356-1703 (ATEN NJ)

© Copyright 2009 ATEN^® International Co., Ltd.
ATEN and the ATEN logo are trademarks of ATEN International Co., Ltd. All rights reserved. All other trademarks are the property of their respective owners.

This product is RoHS compliant.

Part No. PAPE-1285-W00G Printing Date: 05/2009
