USB KVM DigiProcessor
KG1900T / KG6900T / KG8900T / KG9900T
USB 4K KVM DigiProcessor
KG8950T / KG9950T
Installation Guide
Package Contents
Qty
Description
USB KVM DigiProcessor KG1900T / KG6900T / KG8900T / KG9900T
1
or
USB 4K KVM DigiProcessor KG8950T / KG9950T
1
user instructions
Installation

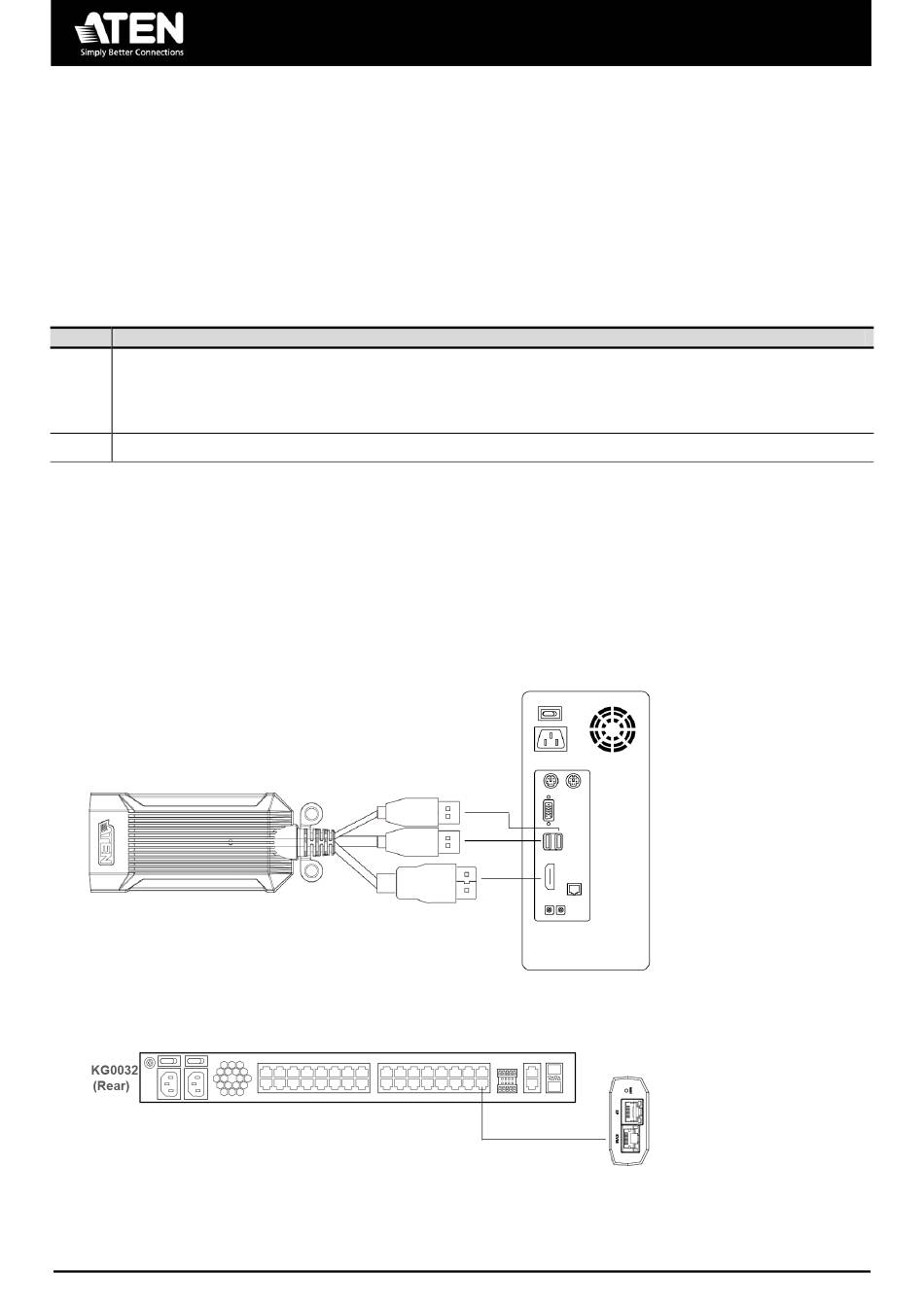

To connect a USB KVM DigiProcessor (KG1900T / KG6900T / KG8900T / KG9900T) / USB 4K KVM DigiProcessor
(KG8950T / KG9950T) to a KVM over IP OmniBus Gateway (KG0016 / KG0032), follow the steps below.
Note: A KG8900T USB HDMI KVM DigiProcessor is used as an example to illustrate the procedure.
1.
Connect the USB and HDMI connectors of the USB KVM DigiProcessor / USB 4K KVM DigiProcessor to the
corresponding ports on the PC you are installing.
2.
Connect the RJ-45 port (KVM port) of the USB KVM DigiProcessor / USB 4K KVM DigiProcessor to the KVM over
IP OmniBus Gateway's (KG0016 / KG0032) KVM port via a Cat 5e/6 cable.
All information, documentation and specifications contained in this media are subject to change without prior notice by the manufacturer.
Please visit our website to find the most up-to-date version.
