Defender EL00174 Manual

WINDOW ALERT ALARM - 2 PACK
Shock Sensor Alarm for Windows

Introduction

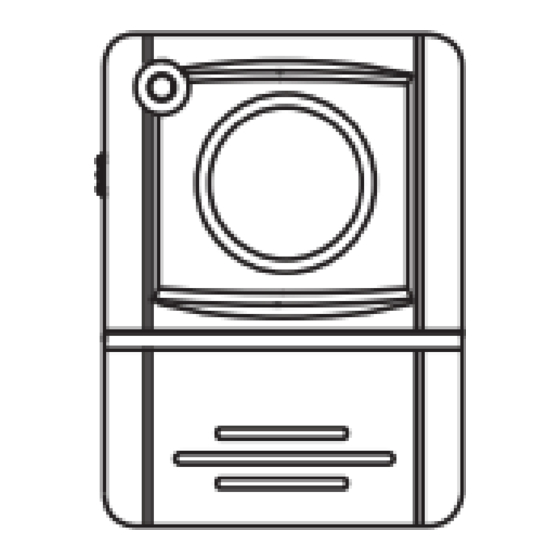

The Defender Window Alert Alarm is a convenient, easy to use alarm designed to increase the
safety of your home. The alarm is intended to provide both a visible deterrent by the use of an
adhesive warning sticker and an audible deterrent should there be an attempted forced entry.

Operation of the alarm

Please note: Remove the battery tab before first use.
1. Using the double sided adhesive sticker mount the Defender Window Alert Alarm on the
glass of the window (or door) to be protected. Ensure the surface is clean, dry and flat.

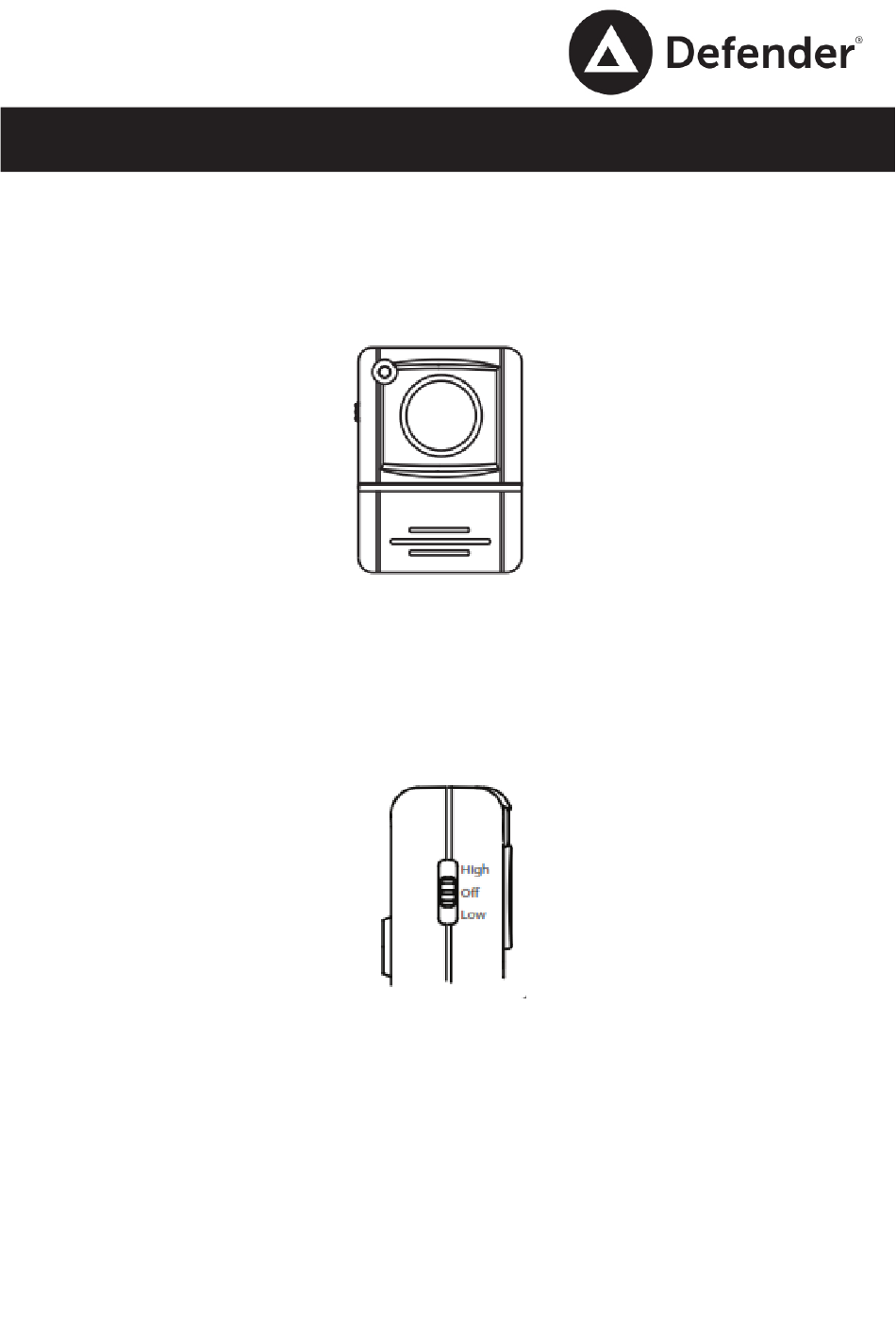

2. To arm the unit, position the switch located at the side of the unit to 'High' or 'Low' sensitivity,
as preferred. There will be a 5-7 second delay before the unit is armed.
3. Once set, the siren will be activated if the glass or door is hit or knocked. The siren will sound
45-48 seconds and will then automatically reset after 3-5 seconds. The next time the alarm is
activated, the siren will sound for 25-35 seconds.
4. Each time the unit is reset (i.e. the switch is moved between 'High' and 'Low' sensitivity), there
will be a 5-7 second delay before unit is active and will on first activation produce a 45-48
second alarm.
5. To test, gently knock on the window in several places. The Window Alert Alarm will sound.
Note:
When testing a cloth can be used to cover the alarm siren to reduce the risk of hearing damage.
defendersecurityproducts.co.uk
Product Code: EL00174
