Defender DX-500 SOLAR Quick Start Manual

DX-500 SOLAR WIRELESS PERIMETER SECURITY KIT
Long Range Detection Kit with Solar Power

Introduction

The DX-500 Solar is a long range detection kit designed to protect the perimeter of properties, ranging from
residential areas to large commercial or industrial environments. The solar-powered, wireless nature of the sensors
means the kit is also suitable for use in rural environments with no access to electricity. The DX-500 Solar has an
operating range of 150m and each system can be added to with multiple sensors and receivers. The PIR sensors
are solar powered, fully waterproof and easy to install. Perfect for use on driveways, construction sites, rural
properties and entry points of any kind. The receiver is alkaline battery powered and suitable for indoor use only.

Contents

1 x DX-500 Solar Wireless Outdoor PIR Sensor
1 x DX-500 Wireless Indoor Receiver
3 x AAA batteries

Battery Installation/Replacement

Wireless Indoor Receiver - Open the rear cover on the Wireless Receiver and insert the 3 x AAA batteries provided,
noting the correct polarity. Replace the cover securely. Please note: when the battery is low, the blue LED will be
constantly showing. There is no need to re-pair units after changing batteries.

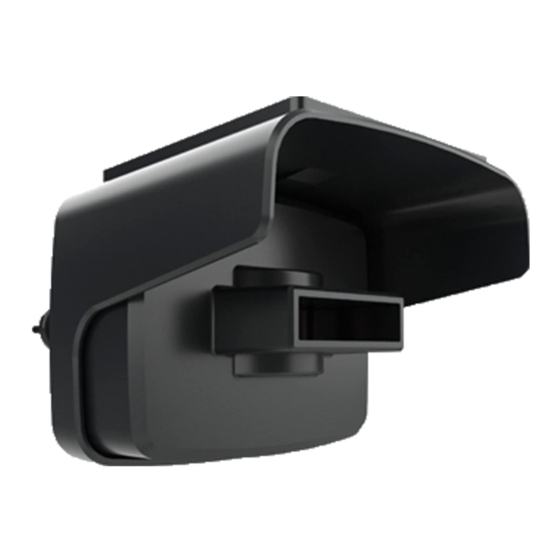

Solar Wireless Outdoor PIR Sensor - This is solar powered via the top charging panel and a 3.7v lithium battery.
The battery does not need replacing. To activate, simply unscrew the rear cover and slide the switch to ON.
Before first use you should charge your unit; with the switch set to OFF leave it in direct sunlight for 6-8 hours. You
should then switch back to ON and install the unit; it will then take charge constantly during daylight hours, as long
as the switch is ON. Turning the switch OFF deactivates the motion sensor.

Volume Control

The volume button on your receiver allows you to select from four different volume levels. Simply press the
volume button to hear the various sound level options. This level can be changed as and when you wish by
pushing the volume button.
Operation & Pairing

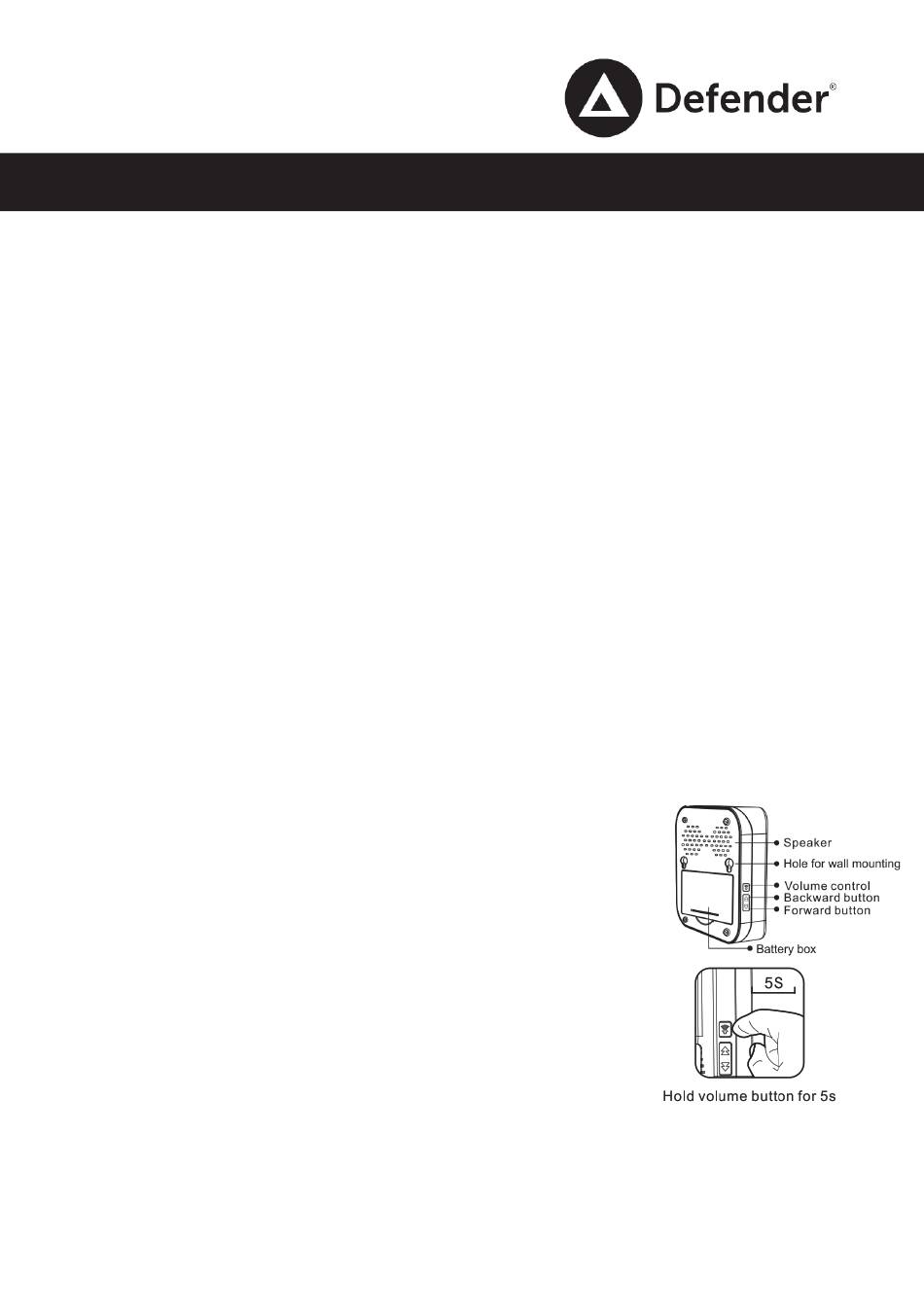

Before pairing with the sensor, choose your preferred melody by using the
backward and forward buttons to cycle through the options. Each Receiver has 50
different melodies to choose from. This allows you to set different melodies for up to
50 different PIR Sensors (sold separately), making it easy to identify which zone has
been triggered.
Once you have chosen your desired tone you are ready to pair the Receiver with a
PIR Sensor.
Press and hold the volume button for five seconds, until you hear a noise and the blue
LED starts flashing. The Receiver is now in pairing mode and you simply need activate
the PIR sensor whilst the Receiver is within range (150m).
To activate, simply wave your hand infront of the PIR Sensor. The desired melody
should trigger, indicating pairing was successful.
Pairing mode lasts five seconds and will automatically end after this time, or when a
pairing is successful.
To reset the Receiver and remove all pairings, press and hold the forward button for
five seconds until you hear a noise and the blue LED flashes once. The Receiver has
now been reset and all existing pairings have been deleted.
defendersecurityproducts.co.uk
1 x Small screwdriver
Screws and fixings
Instruction manual
Product Code: EL00224
