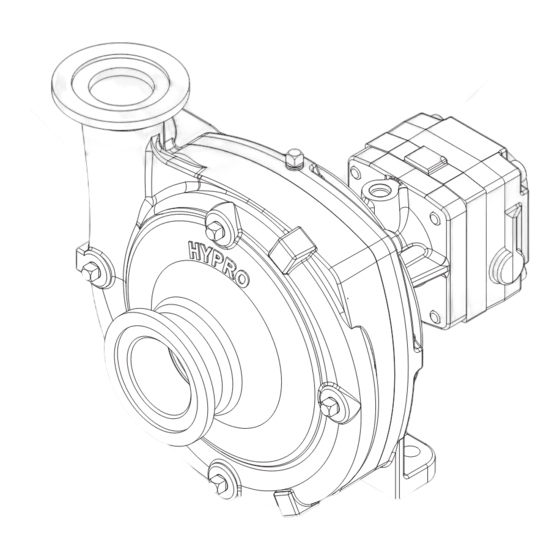

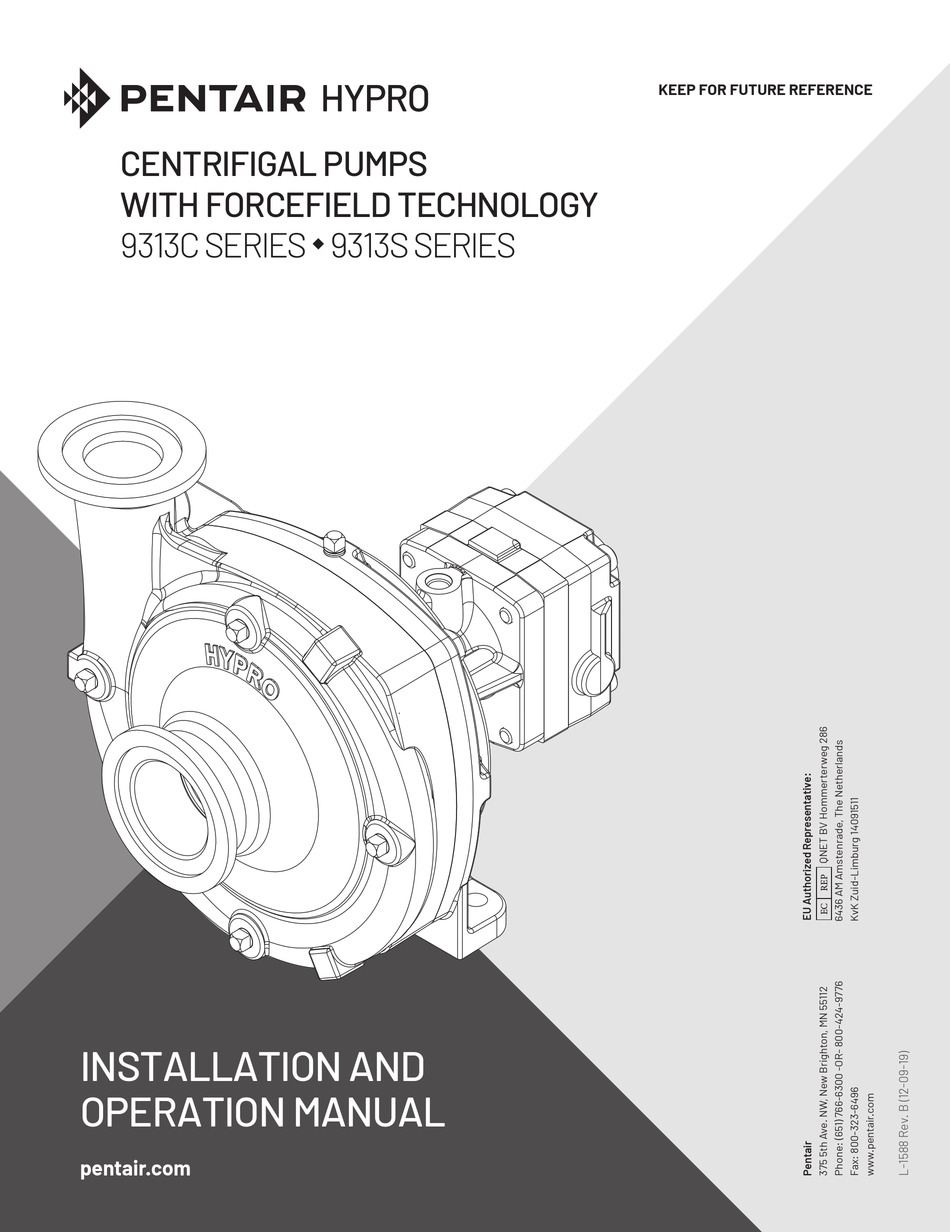

- Page 1 KEEP FOR FUTURE REFERENCE CENTRIFIGAL PUMPS WITH FORCEFIELD TECHNOLOGY 9313C SERIES 9313S SERIES INSTALLATION AND OPERATION MANUAL pentair.com...
-
Page 2: Table Of Contents
Contents EU Language Manuals ................................3 Introduction ....................................4 Description ................................... 4 Intended Uses..................................4 Purpose of Manual ................................4 Misuses ....................................5 Pump I dentification ................................ 5 Pump Technical Data ................................6 Dimensional S pecification .............................. 6 Pump S pecifications . - Page 3 EU Languages DO NOT attempt to install or operate your pump before reading the manual. Original copies of the manual for Hypro pumps are provided in English. To find a copy in your native language, go to www.hypropumps.com. Vor dem Ablesen des Handbuches versuchen Sie NICHT, Ihre Pumpe zu installieren. Originale des Handbuches fur Hypro-Pumpen werden auf englisch zur Verfugung gestellt. Zu eine Kopie in Ihrer Muttersprache finden, zu www.hypropumps.com zu gehen (German) N’essayez pas d’installer votre pompe avant de lire le manuel.
-
Page 4: Introduction
Introduction Description Pentair’s Line of Hypro centrifugal pumps are designed for agricultural and industrial spraying and transfer of a variety of fluids: water,insecticides, herbicides, wettable powders, emulsives, liquid fertilizers, etc. Hypro Series 9313 hydraulic motor-driven centrifugal pumps provide smooth performance. They can be conveniently mounted on the tractor or sprayer, becoming part of the vehicle’s hydraulic system and freeing the PTO for other uses. -
Page 5: Misuses
Misuses Pentair’s line of Hypro centrifugal pumps are designed to operate effectively within the speed, pressure, and environmental ranges specified in this manual. Operating a pump outside of these ranges will void the warranty and could cause damage to property, serious personal injury, or death. You must observe the following safety guidelines: • DO NOT run the pump faster than the maximum recommended speed • DO NOT run the pump or hydraulic motor higher than the maximum recommended pressure •... -
Page 6: Pump Technical Data
Pump Technical Data 9313C(S)-M04, -M05, -M05Y, -M08, -M08Y, M10, -M10Y, and -M16 Pump Dimensions Motor Dim. Inch 9.44 8.76 (all) 4.76 3.81 2X Ø K 3.63 11.52 M05, M05Y 11.57 9313C- M08, M08Y 11.77 9313S- M10, M10Y 11.89 12.27 5.50 5.25 133.4 2.63 66.7 (all) 1.60... -
Page 7: Pump Specifications
Pump Specifications Hydraulic Hydraulic Flow Hyd. Motor Motor Rate Pressure Flow Inlet Max Outlet Max (GPM) (PSI) (GPM) Pump Hydraulic Mounting Pump PSI [BAR] PSI [BAR] [LPM] [BAR] [LPM] Ports Ports Weight Bolts 9313C-M04 140 [530] 90 [6.2] 7 [26.5] 9313S-M04 9313C-M05 155 [587] 100 [6.9] 8 [30.3] 9313S-M05 SAE -8... -
Page 8: Performance Charts
Performance Charts All specifications and performance data are based on water as a carrier fluid. Note: The dashed portion of the pump curves is outside the recommended operating range, and can only be achieved with sufficient NPSHa. Refer to Installation Instructions. - Page 9 All specifications and performance data are based on water as a carrier fluid. Note: The dashed portion of the pump curves is outside the recommended operating range, and can only be achieved with sufficient NPSHa. Refer to Installation Instructions.
-
Page 10: Fluid Pumping Applications
Fluid Pumping Applications Pump Materials Compatibility Application Impeller Pump Housing Noryl GTX Cast Iron Stainless Steel Weed Control Chemicals Insect Control Brush Control Pest Control Chemicals and Fumigants Liquid Fertilizers Powdered Fertilizers Fluid Transfer Acids Flammable liquids, sewage, and clean water should never be pumped through a Hypro pump. Hypro pumps are not designed to be used as clean water pumps as defined in 10CFR Parts 429 and 431. -
Page 11: Assembly And Installation
• Pumping systems must be installed in accordance with Pentair installation instructions. Failure to do so will void your warranty and could cause damage to property, serious personal injury, or death. •... - Page 12 • The working pressure in the hydraulics system must be controlled by a pressure relief valve that is adjusted to operate at 10% of the maximum system pressure. • When installing, adjusting or removing a Hypro centrifugal pump, ensure that there are no objects which can fall on the installer and make certain that all machinery to which the pump is to be attached is turned off. • Pumps must be installed in a location where they are accessible for any necessary maintenance. • When hydraulic power is used, the system should contain a quick disconnect coupling that can be disconnected to isolate the pump. Standard Mounting • In order to prevent injury or damage to property, all Hypro pumps should be properly mounted to a solid base where there is no danger of the pump falling or breaking loose. All Hypro pumps come with mounting holes which allow bolts to be put into the pump so it can be secured to a sturdy base. When mounting your Hypro centrifugal pump, be sure to use bolts and nuts which are compatible with any chemicals that may come into contact with them as well as choosing the correct grade of bolt based on the pump weight and any expected loads.
- Page 13 Ref. Description Tank Lid Vent Line Jet Agitator Shut-off Ball Valves Centrifugal Pump Spray Control Console Centrifugal Pump Control Manifold Boom Valve Flowmeter Jet Turret Nozzle Body Hydraulic Installation • Prior to installation, refer to the tractor or sprayer manual and determine what type of hydraulic system is being used. The three types of systems include: •...
-
Page 14: Control Systems
• Hydraulic back pressure in the return line must be less than 100 psi [6.9 bar] to prevent reduced seal life. Pressures under 50 psi [3.4 bar] are ideal. • The motor case drain, available on “Y” series pumps, is recommended to minimize the pressure acting on the hydraulic motor oil seal, and extend the life of the oil seal. The case drain line must be connected directly to the hydraulic reservoir with no restrictions, and the case drain port on the motor must always be oriented upward. THE CASE DRAIN PORT ON HYDRAULIC MOTORS MUST NEVER BE PLUGGED. -
Page 15: Commissioning, Start-Up, Operation, Shutdown
Commissioning, Start-Up, Operation, Shutdown Before attempting to start your pump, the following must be understood and followed to ensure safe operation. Information • When running Hypro centrifugal pumps, it is essential that operators use hearing protection as the sound levels can reach levels of 80 decibels. • When handling Hypro pumps, one should wear steel-toed shoes and protective gloves in order to protect the feet in the event the pump is dropped and protect the hands from any sharp surfaces on the pump or chemicals. - Page 16 Starting, Operation and Shutdown of the Pump (Hydraulic) Open Center Systems - All Models Adjusting Centrifugal Pump Output ATTENTION M08, M10, and M16 motors have bypass screw fully closed from the factory. M04 and M05 motors have bypass screw set at 1-1/2 turns from fully closed from the factory. 1.
-
Page 17: Maintenance And Servicing
Maintenance and Servicing Information • All maintenance should be done when machinery is stationary and has been isolated from its energy sources. It is dangerous to perform maintenance while machinery is still connected to its power source. Machinery should be isolated from its electrical, hydraulic or gas engine power source. -
Page 18: Troubleshooting
Troubleshooting If the proper Hydraulic Pump Unit has been selected according to Pentair recommendations, and the unit has been correctly plumbed into the hydraulic system, operation should be quite satisfactory. If spraying performance is unsatisfactory or hydraulic system heat is excessive, check the following troubleshooting guide for possible problems and solutions. Troubleshooting Guide Symptom Probable Cause(s) -
Page 19: Replacement Parts
The following drawings show the pumps and their replacement parts. Only genuine replacement parts should be used. Failure to follow this warning can result in damage to property, serious injury or death. If the pump malfunctions or is defective, it should be sent back to Pentair for service. Model 9313 Part Illustrations and Repair Kits... - Page 20 Pump Repair Kit No. 3430-0948 NOTE: When ordering parts, give quanti- Contains: O-rings (Ref. 5 & 8), mechanical seal ty, part number, description and complete (Ref. 10), Membrane (Ref. 9), Pump Chamber model number. Reference numbers are Fluid, and seal installation tool used ONLY to identify parts in the drawing Pump Repair Kit No.
- Page 21 EC DECLARATION OF INCORPORATION EC Declaration of Incorporation Manufacturers Name: Pentair Flow Technologies, LLC Manufacturers’ Address: 375 Fifth Avenue NW, New Brighton, MN 55112, USA Declare that the partially complete machinery described below conforms to applicable health and safety requirements of Emission Directive 2010/26/EU and of Parts 1 of Annex I of Machinery Directive 2006/42/EC.
- Page 22 Notes...
- Page 23 Notes...
- Page 24 Check with your shipping company for specific instructions. For a detailed list of where Pentair trademarks are registered, please visit www.pentair.com/en/registrations.html. Pentair trademarks and logos are owned by Pentair PLC. or its affiliates. Third party registered and unregistered trademarks and logos are the property of their respective owners. Because we are continuously improving our products and services, Pentair reserves the right to change specifications without prior notice.
