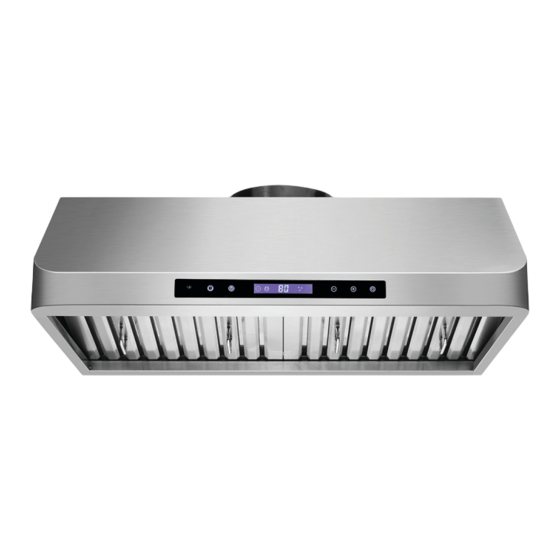

- Page 1 Range Hoods installation manual for all models...
- Page 2 1-877-901-5530 (Toll Free) Hours: Monday-Friday 7am-5pm Mountain Standard Time Thank you for buying PROLINE! We are dedicated to delivering you quality hoods at amazingly low prices. We are confident you’ll enjoy your new PRO- LINE hood for many years to come.
-
Page 3: Table Of Contents
Table of Contents Saftey Notice Diagrams Filters Venting . Installation 6-13 Preparation Wall Hood . Island Hood .10-11 Undercabinet or Insert . .12-13 Care & Cleaning 14-15 Troubleshooting Purchase Information 17-19 Warranty Returns . Exchanges . - Page 4 Use common sense and caution when installing, maintaining or operating this or any other appliance. Always contact the PROLINE Customer Support Team (1-877-901-5530) with any prob- lems or situations that you do not understand.
-
Page 5: Saftey Notice
IMPORTANT SAFETY NOTICE warning If you receive a damaged product, immediately contact PROLINE Customer Support. Do not ♦ install or use a damaged hood. Do not install, repair or replace any part of the range hood unless specifically recommend- ♦... -
Page 6: Diagrams
PROLINE RANGE HOODS grease filters baffle filter The baffle filter is equipped with a spring loaded handle. To remove from the hood, pull back toward the wall and down. The baffle filter can also be opened for easy cleaning. To open unscrew the cylin- drical handle and separate the layers to clean.. - Page 7 USER MANUAL | ductless filters charcoal filter (not always avaliable. check website for hood compatability) We recommend venting your hood directly outdoors if at all possible. If you do not have the option to vent your hood outside, charcoal filters are a convenient alternative.
-
Page 8: Venting
PROLINE RANGE HOODS venting options horizontal wall venting Option 1 Option 2 vertical roof venting... - Page 9 USER MANUAL | venting requirements height & venting requirements For best operation, we recommend you: allow 28-36” between the top of your ♦ cooking surface and the bottom of hood vent vertically through the roof if ♦ possible vent through a side wall if you can- ♦...
-
Page 10: Installation
♦ 2. Test plug in and test controls, lights, fan ♦ inspect for any damage during shipping ♦ you must report any damage to Proline within 7 days for a refund ♦ tools you’ll need: power drill ♦ screwdrivers ♦... -
Page 11: Wall Hood
USER MANUAL | wall hood installation Plan where the ductwork will be located. Install proper-sized duct work, and roof or wall cap, depending on where you will be venting your hood. Recommended and most com- mon installations are shown in the venting diagrams above. Adjust your measurements to accomodate heights of ceilings, cabinets, or rangetops. - Page 12 PROLINE RANGE HOODS wall hood installation step 2 Install ceiling bracket Place the chimney bracket against the ceiling ♦ Find the center point of the bracket and mark ♦ Line the bracket center point with the center ♦ point on the wall Mark the locations of bracket holes on wall ♦...
- Page 13 USER MANUAL | wall hood installation step 4 Install chimney Take off protective laminate coating ♦ Place the chimney on top of range hood base ♦ Make sure the chimney is facing the correct ♦ direction (the vertical vent should be on the top) Secure the lower portion of the chimney to the ♦...
- Page 14 10 | PROLINE RANGE HOODS island hood installation step 1 Mark ceiling find and mark the center point directly above your ♦ cooktop place the ceiling bracket on the ceiling around ♦ the center point. (Make sure it is square with your cooktop).
-
Page 15: Island Hood
USER MANUAL | 11 island hood installation step 4 Install Chimney slide inner chimney sleeve over support brackets, ♦ covering the ceiling bracket screw into place at the top of ceiling bracket ♦ slide outer chimney sleeve to the bottom portion ♦... -
Page 16: Undercabinet Or Insert
12 | PROLINE RANGE HOODS hood insert installation step 1 Mark the leveling point of the hood. Position two mounting screws on the wall leaving 1/8” space between the wall and your hood. If you are installing under a cabinet, the hood should be flush with the front of the cabinet. - Page 17 USER MANUAL | 13 hood insert installation step 4 Align hood-mounting bracket to the screws on the wall and hook hood into place. Additional mount- ing fasteners may be used to further secure your hood. step 5 Use 6” or 8” round steel pipe to connect the exhaust on the hood to the ductwork above.
-
Page 18: Care & Cleaning
All PROLINE hoods come with either an aluminum mesh or stainless steel baffle filter. Both types of filters are dishwasher safe for easy cleaning. If handwashing your filter,... - Page 19 USER MANUAL | 15 15 | PROLINE RANGE HOODS Care & Cleaning replacing the light bulb Make sure the range hood is unplugged or turn OFF breaker ♦ Place a flat-head screwdriver between light cover and housing to remove cover ♦...
-
Page 20: Troubleshooting
16 | troubleshooting NOTHING WORKS (Control Panel not lit, Blower not working) Solution 1: Turn on power at circuit breaker panel or fuse box. Check for tripped breaker or blown fuse. Solution 2: Make sure hood main power switch is on. LIGHTS NOT TURNING ON Solution 1: see “nothing works”... -
Page 21: Purchase Information
USER MANUAL | 17 Warranty All PROLINE range hoods come with a Two Year Warranty on Parts, and a One Year Warranty on Labor. Who is Covered: Only the original purchaser for residential products purchased in the continental United States (limited warranty in Canada, Hawaii, and Alaska). -
Page 22: Returns
Damaged Returns 1. You must report damage directly to PROLINE within 7 days to receive a full refund. 2. Send a photo showing the damage. We need this before we can approve your damage claim. - Page 23 Exchanges exchanges 1. You must request an exchange directly to PROLINE within 14 days. 2. Notify us of your reason for the exchange. Provide a photo if your hood is damaged. 3. We will help arrange for returned shipping of your hood.
- Page 24 PROLINE Range Hoods 1750 S 500 W Salt Lake City, UT 84115 • 1-877-901-5530 • www.prolinerangehoods.com...
