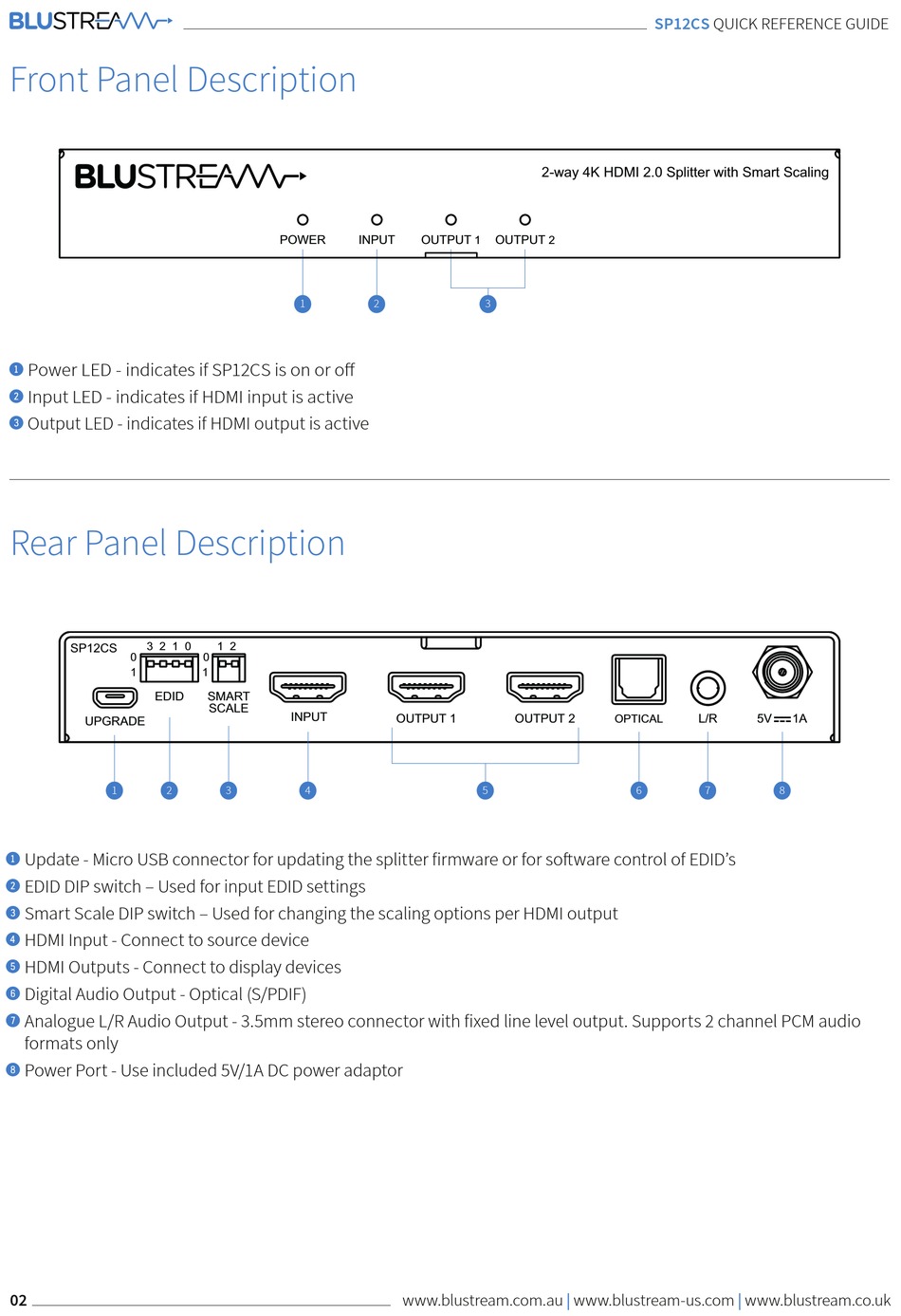

Front Panel Description

1 Power LED - indicates if SP12CS is on or off
2 Input LED - indicates if HDMI input is active
3 Output LED - indicates if HDMI output is active

Rear Panel Description

3 2 1 0
SP12CS
0
1
EDID
UPGRADE
1 2
1 Update - Micro USB connector for updating the splitter firmware or for software control of EDID's
2 EDID DIP switch – Used for input EDID settings
3 Smart Scale DIP switch – Used for changing the scaling options per HDMI output
4 HDMI Input - Connect to source device
5 HDMI Outputs - Connect to display devices
6
Digital Audio Output - Optical (S/PDIF)
7 Analogue L/R Audio Output - 3.5mm stereo connector with fixed line level output. Supports 2 channel PCM audio
formats only
8 Power Port - Use included 5V/1A DC power adaptor
02
POWER INPUT
1
1 2
0
1
SMART
SCALE
INPUT
3 4
2-way 4K HDMI 2.0 Splitter with Smart Scaling
OUTPUT OUTPUT
1
2 3
OUTPUT 1 OUTPUT 2
5
www.blustream.com.au
SP12CS
QUICK REFERENCE GUIDE
2
L/R
OPTICAL
6 7
|
www.blustream-us.com
5V 1A
8
|
