ASSEMBLY INSTRUCTIONS

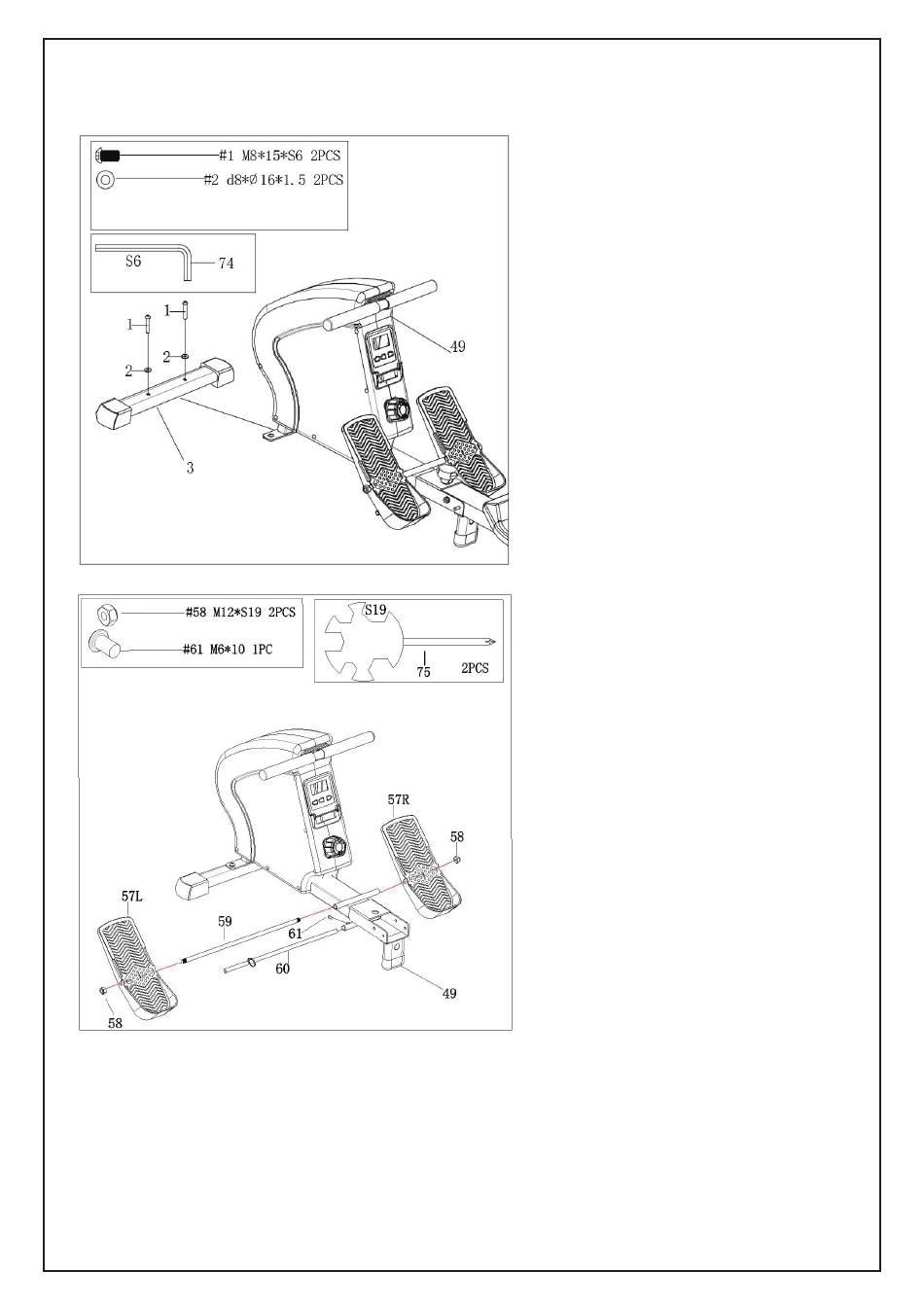

STEP 1:
Attach Front Stabilizer (No. 3) to Main
Frame (No. 49) using 2 Screws (No.
1) and 2 Washers (No. 2). Tighten
and secure with Allen Wrench (No.
74).
STEP 2:
Attach Bolt (No. 59) into the upper
hole of Main Frame (No. 49) through
Pedals (No. 57L/R), screw Pedals
(No. 57L/R) into Bolt (No. 59) using 2
Nuts (No. 58). Use 1 Spanner (No.
75) to hold one of Nut (No. 58), then
use the other Spanner (No. 75) to
tighten the other Nut (No. 58).
Attach Bolt (No. 60) into the bottom
hole of Main Frame (No. 49) and
screw Bolt (No. 60) using Screw (No.
61), tighten with Spanner (No. 75).
NOTE: The Bolt (No. 60) should be
attached into the middle position of
Main Frame (No. 49).
