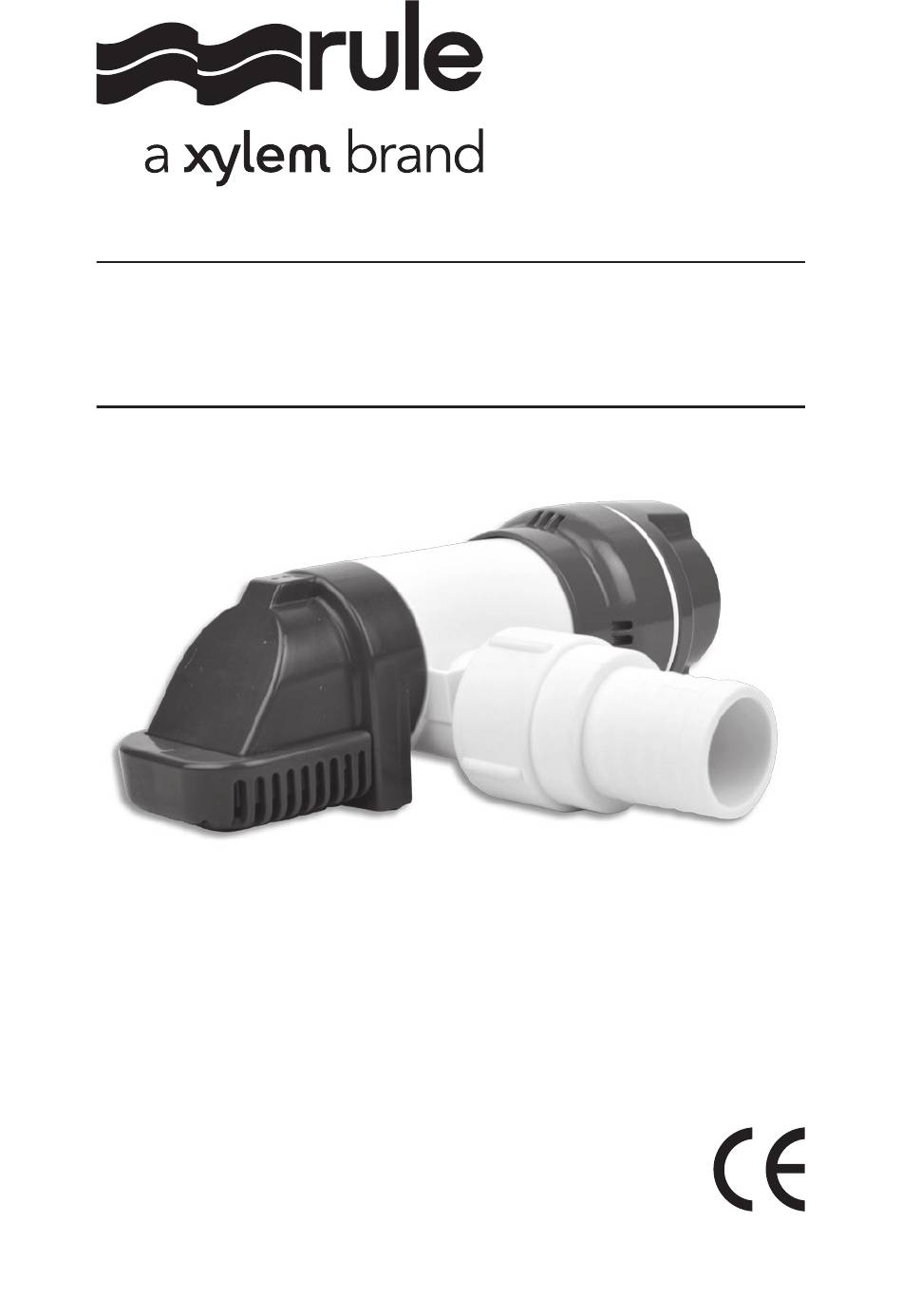

- Page 1 Manual Bilge Pump INSTRUCTION MANUAL...
- Page 2 Purpose of this manual The purpose of this manual is to provide necessary information for product installation, operation and maintenance. CAUTION: Read this manual carefully before installing, using or servicing this product. Failure to follow the instructions within this manual could result in explosion, property damage, severe personal injury and/or death.
- Page 3 Bilge pumps shall be mounted in accordance with the pump manufacturer instructions, and in an accessible location to permit servicing and cleaning of the intake and/or screening. On boats with an enclosed accommodation compartment, an audible alarm shall be installed indicting that the bilge water is approaching the maximum bilge water level.
- Page 4 Float switch & MANUAL Panel switch AUTO 7.5 Amp Brown Fuse Black-Ground Float switch Positive only 7.5 Amp Fuse Brown Black-Ground Panel switch only 7.5 Amp Brown positive Fuse Black-Ground...
- Page 5 Installation: We recommend using #8 Stainless Steel screws of an adequate length as to secure the pump but not penetrate the entire thickness of the hull. Use a exible sealant in the screw holes to prevent water from penetrating the screw holes. Screws Disassembly and reassembly...
- Page 6 Plumbing: This bilge pump has been designed to be used with exible hose. Rigid piping or tubing may damage the pump or the pump’s discharge. actors that reduce the ow of a bilge pump may include but are not limited to the following: •...
- Page 7 Dimensional Drawing 7"/17.8cm 3"/7.6cm 4"/10.2cm 1.14"/2.9cm - Mounting Holes 4.86"/12.3cm 2.35"/5.9cm 1.8"/4.5cm Mounting Holes Flow Curves Performance at 12.0 Volts 1-1/8" Adapter 1" Adapter 3/4" Adapter Flow (GPH)
- Page 8 All mounting holes must be sealed with a marine grade sealant to prevent water intrusion. Install to ABYC H-22 and E-11 We hereby declare, under our sole responsibility, that our product to which this declaration relates has been designed to comply in accordance with the following Directives: Electromagnetic Compatibility Directive 2 /1 8/EC...
