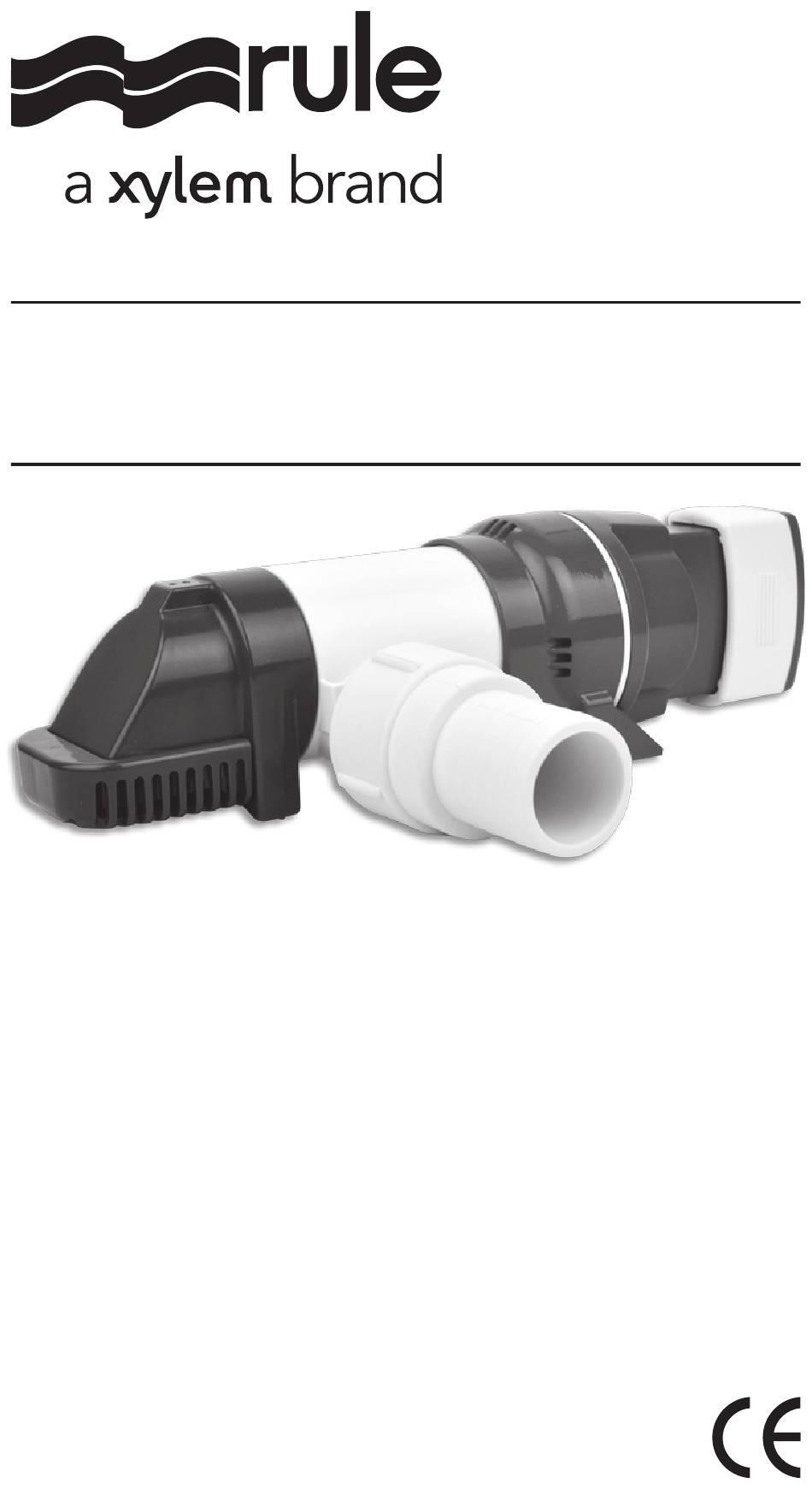

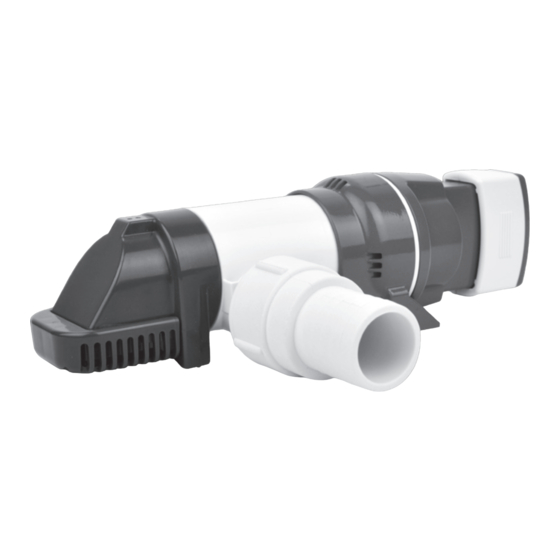

- Page 1 Fully Automatic Bilge Pump INSTRUCTION MANUAL...
-
Page 2: Purpose Of This Manual
Purpose of this manual The purpose of this manual is to provide necessary information for product installation, operation and maintenance. CAUTION: Read this manual carefully before installing, using or servicing this product. Failure to follow the instructions within this manual could result in explosion, property damage, severe personal injury and/or death. - Page 3 Bilge pumps shall be mounted in accordance with the pump manufacturer instructions, and in an accessible location to permit servicing and cleaning of the intake and/or screening. On boats with an enclosed accommodation compartment, an audible alarm shall be installed indicting that the bilge water is approaching the maximum bilge water level.
- Page 4 Two position 7.5 Amp switch Fuse Brown-Automatic ON-OFF Switch Brown/white-Manual Black-Ground No switch 7.5 Amp Fuse Brown-Automatic Seal closed Brown/white-Manual Black-Ground Pumps with automatic controls shall be provided with a visual indication that power is being supplied to the pump. Pump will cycle every 2.5 minutes to sense for water.
-
Page 5: Installation
Installation: We recommend using #8 Stainless Steel screws of an adequate length as to secure the pump but not penetrate the entire thickness of the hull. Use a flexible sealant in the screw holes to prevent water from penetrating the screw holes. Screws Disassembly and reassembly Best practice: Periodically clean the sensor housing with a mild detergent to remove any build-up that may interfere with... - Page 6 Plumbing: This bilge pump has been designed to be used with flexible hose. Rigid piping or tubing may damage the pump or the pump’s discharge. Factors that reduce the flow of a bilge pump may include but are not limited to the following: •...
-
Page 7: Dimensional Drawing
Dimensional Drawing 8.9"/22.6cm 5.9"/15.0cm 3"/7.6cm 3"/7.6cm Mounting Holes 4.86"/12.3cm 2.35"/5.9cm 1.8"/4.5cm Mounting Holes Flow Curves Performance at 12.0 Volts 1-1/8" Adapter 1" Adapter 3/4" Adapter Flow (GPH) - Page 8 All mounting holes must be sealed with a marine grade sealant to prevent water intrusion. Install to ABYC H-22 and E-11 We hereby declare, under our sole responsibility, that our product to which this declaration relates has been designed to comply in accordance with the following Directives: Electromagnetic Compatibility Directive 2004/108/EC Recreational Craft Directive 2003/44/EC RoHS 2011/65/EU.
