69926-001 Rev 01
Required tools
Additional tools
(if needed)
wood block
1
Prepare door and check dimensions
2
Adjust the backset of the latch (if needed)
A
Hold the latch in front of the door hole, with
the latch face flush against the door edge.
B
If the latch holes are centered in the door hole,
no adjustment is required. Proceed to step 3.
If the latch holes are NOT centered, adjust
latch. See "Latch Adjustment" (step 2C).
C
Latch Adjustment (only if needed)
Move the pin to
extend the latch.
3
Install latch
Instale el pestillo
slant of latch bolt
faces door frame
Drilling Template
Edge of the door
Do not use harsh chemicals or
solvents to clean your lock.
Mechanical lock
Use a damp cloth to wipe away
any excess dirt or debris.

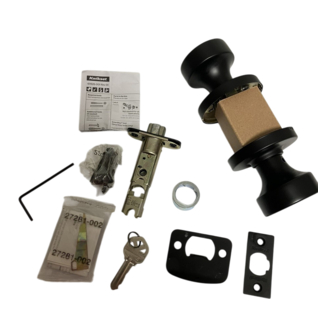

Parts in the box
Latch
A
Not required for all
applications
SmartKey® tool
(SmartKey locks only)
2-3/8" (60 mm)
2-3/4" (70 mm)
54 mm
Door edge chiseled
A
door frame
L (x2)
Template is only needed if a new hole must be drilled in the door.
Face of the door
Fold
Centerline
2-3/8" (60 mm)
2-3/4" (70 mm)
Backset •
Electronic lock
Use a damp cloth on the lock's exterior to wipe
away any excess dirt or debris. Use a dry cloth
to clean interior components.
Strike
B
C
Keys
D
or
2-1/8"
or
Remove plates.
Install drive-
in collar.
Instructions continue on reverse
Installation Guide
Knobs
G
F
Optional
J
E
H
1-3/8"–2-1/4"*
35 mm–57 mm*
1"
25 mm
*Call Kwikset to order
a service kit for 2-1/4"
(57 mm) thick doors.
A
Door edge NOT
chiseled
A
B
slant of latch bolt
faces door frame
wood block
Allen wrench
K
Screws
L
M
N
centered
not centered
door frame

Advertisement

loading
Need help?

Need help?

Do you have a question about the 69926-001 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Kwikset 69926-001

  • Page 1 Do not use harsh chemicals or solvents to clean your lock. Mechanical lock Electronic lock 69926-001 Rev 01 Use a damp cloth on the lock’s exterior to wipe Use a damp cloth to wipe away away any excess dirt or debris. Use a dry cloth any excess dirt or debris.
  • Page 2 Install knobs Press latch SmartKey knobs: OK if flipped bolt to install exterior knob. exterior Remove interior Knob. Loosen the pre-installed set screw. counterclockwise G2/J2 Install interior knob base. Align round edges. G 1/J1 If knob won’t sit flush, rotate turnbutton to align.
