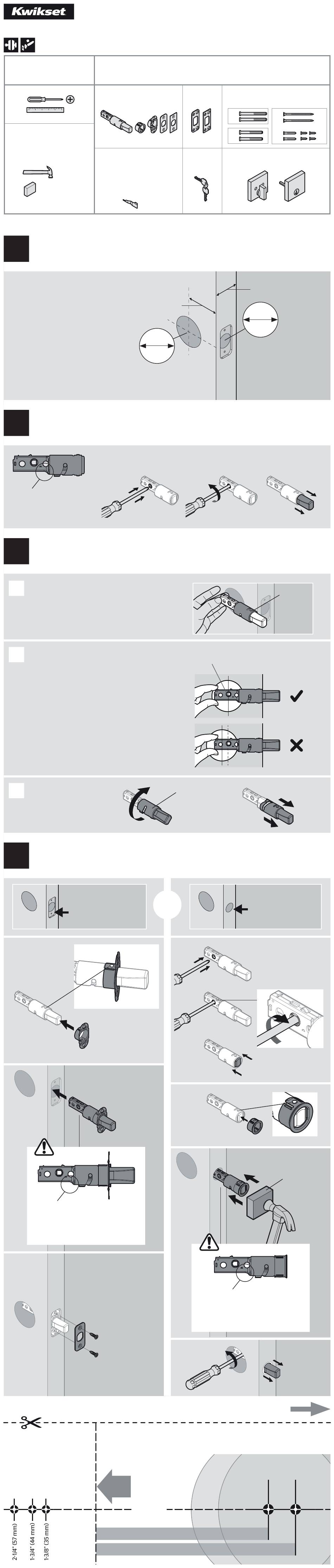

Kwikset 62842/01 Installation Manual

62842 / 01
258
Required tools
Additional tools
(if needed)
wood block
1
Prepare door and check dimensions
2
Extend latch bolt
A
Make sure the curve is on
the bottom of the latch.
3
Adjust the backset of the latch (if needed)
A
Hold the latch in front of the door hole, with
the latch case flush against the door edge.
B
If the D-shaped hole is centered
in the door hole, no adjustment is
required. Proceed to step 4.
If the D-shaped hole is NOT centered, adjust
latch. See "Latch Adjustment" (step 3C).
C
Latch Adjustment
(only if needed)
4
Install latch
Install backplate.
A
Make sure the curve is on
the bottom of the latch.
Install
faceplate.
Drilling Template
Edge of the door
Parts in the box
Latch
A
SmartKey® tool
(SmartKey locks only)
2-3/8" (60 mm)
2-3/4" (70 mm)
Use a screwdriver to extend the latch bolt.
Door edge chiseled
C
D / E
P (2x)
Template is only needed if a new hole must be drilled in the door.
Face of the door
Fold
Centerline
2-3/8" (60 mm)
2-3/4" (70 mm)
Backset
Strikes
B C D E F G
Keys
R
Q
or
2-1/8"
54 mm
180°
D-shaped hole
180°
Rotate the front of the
latch to extend it.
o
Install
drive-in
collar.
Make sure the curve is on
the bottom of the latch.
Instructions continue on reverse
Installation Guide
Screws
H
M
J N
Deadbolt
S
1-3/8"–2-1/4"*
35 mm–57 mm*
1"
25 mm
*Call Kwikset to order
a service kit for 2-1/4"
(57 mm) thick doors.
latch case
A
centered
not centered
Door edge NOT
chiseled
Use a screwdriver to
A
retract the latch bolt.
B
wood block
P
T
Extend the
latch bolt.
