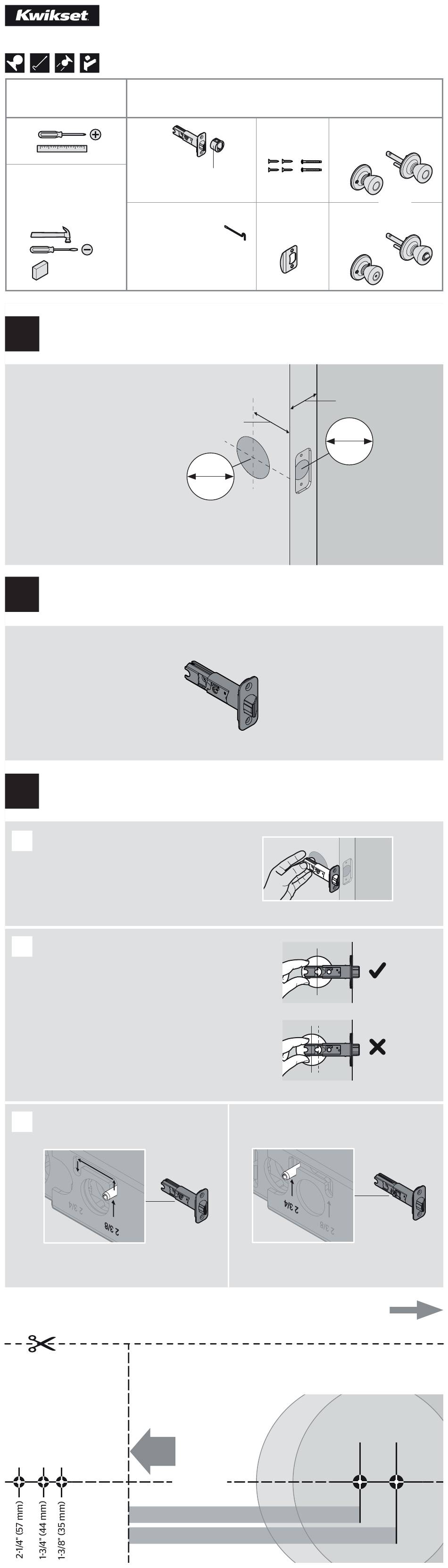

62822 / 01
Required tools
Additional tools
(if needed)
wood block
1

Prepare door and check dimensions

If drilling a new door, use
the supplied template and
the complete door drilling
instructions.
2

Locate latch

Note: Knobs will not be
installed until step 5.
3

Adjust the backset of the latch (if needed)

A
Hold the latch in front of the door hole, with
the latch face flush against the door edge.
B
If the latch holes are centered in the door hole,
no adjustment is required. Proceed to step 4.
If the latch holes are NOT centered, adjust
latch. See "Latch Adjustment" (step 3C).
C

Latch Adjustment (only if needed)

Move the pin to extend the latch.
Drilling Template
Edge of the door
Do not use harsh chemicals or
solvents to clean your lock.
Mechanical lock
Use a damp cloth to wipe away
any excess dirt or debris.
Parts in the box
Latch
A
Not required for all applications
Emergency Unlock tool
2-3/8" (60 mm)
2-3/4" (70 mm)
54 mm
Template is only needed if a new hole must be drilled in the door.
Face of the door
Fold
Doble
Centerline
2-3/8" (60 mm)
2-3/4" (70 mm)
Backset
Electronic lock
Use a damp cloth on the lock's exterior to wipe away
any excess dirt or debris. Use a dry cloth to clean
interior components.
Screws
B
C
Strike
G
or
2-1/8"
A
Instructions continue on reverse
Installation Guide
Passage Knobs
E
D
Privacy
Knobs
H
J
1-3/8"–1-3/4"*
35 mm–44 mm*
1"
25 mm
*Passage knobs only: Call
Kwikset to order a service kit
for 2-1/4" (57 mm) thick doors.
A
centered
not centered
F
or
K
