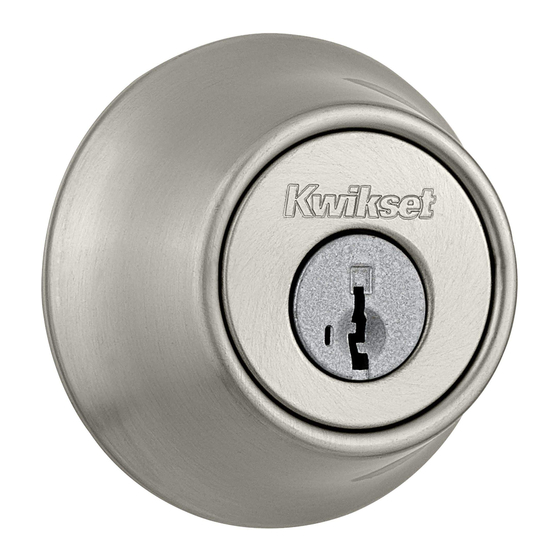

Kwikset 665 Installation Manual

61876 / 01
665
Required tools
Additional tools (if needed)
wood block
1
Prepare door and check dimensions
2
Extend latch bolt
3
Adjust the backset of the latch (if needed)
A
Hold the latch in front of the
door hole, with the latch face
flush against the door edge.
B
If the D-shaped hole is centered
in the door hole, no adjustment
is required. Proceed to step 4.
If the D-shaped hole is NOT
centered, adjust latch. See "Latch
Adjustment" (step 3C).
C
Latch Adjustment (only if needed)
Drilling Template
Edge of the door
Parts in the box
Latch
or
o
A
SmartKey® tool
(SmartKey locks only)
2-3/8" (60 mm)
2-3/4" (70 mm)
A / K
180°
Rotate the front of the
latch to extend it.
Template is only needed if a new hole must be drilled in the door.
Face of the door
Fold
Centerline
2-3/8" (60 mm)
2-3/4" (70 mm)
Backset
Strike
B
K
G
or
2-1/8"
54 mm
D-shaped hole
Instructions continue on reverse

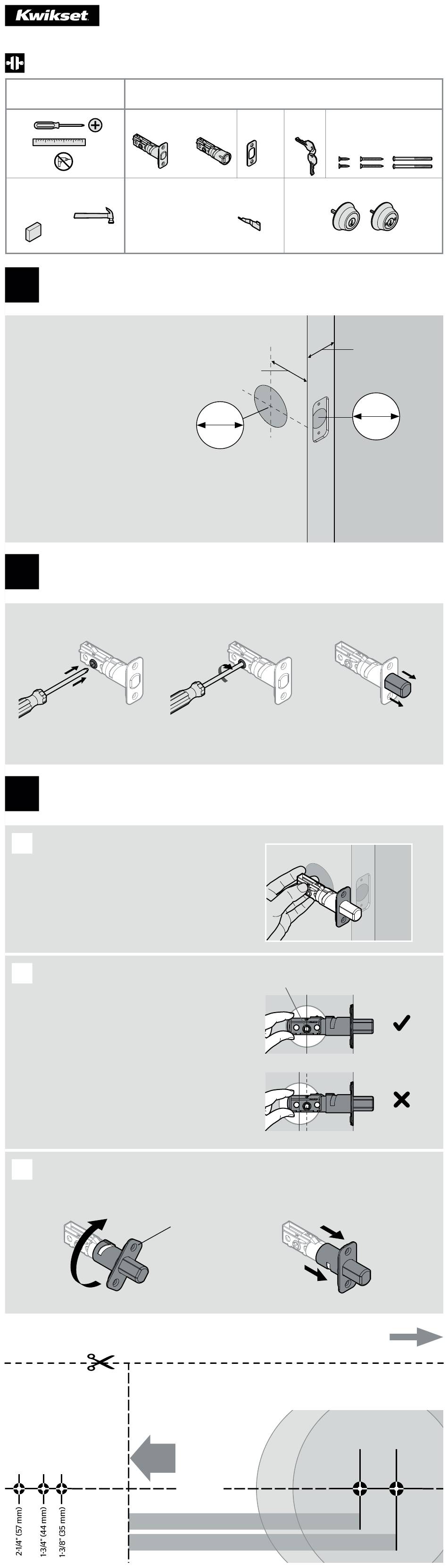

Installation Guide
Keys Screws
D E
C
Deadbolt
H
1-3/8"–2-1/4"*
35 mm–57 mm*
1"
25 mm
*Call Kwikset to order
a service kit for 2-1/4"
(57 mm) thick doors.
A / K
F
J
centered
not centered
