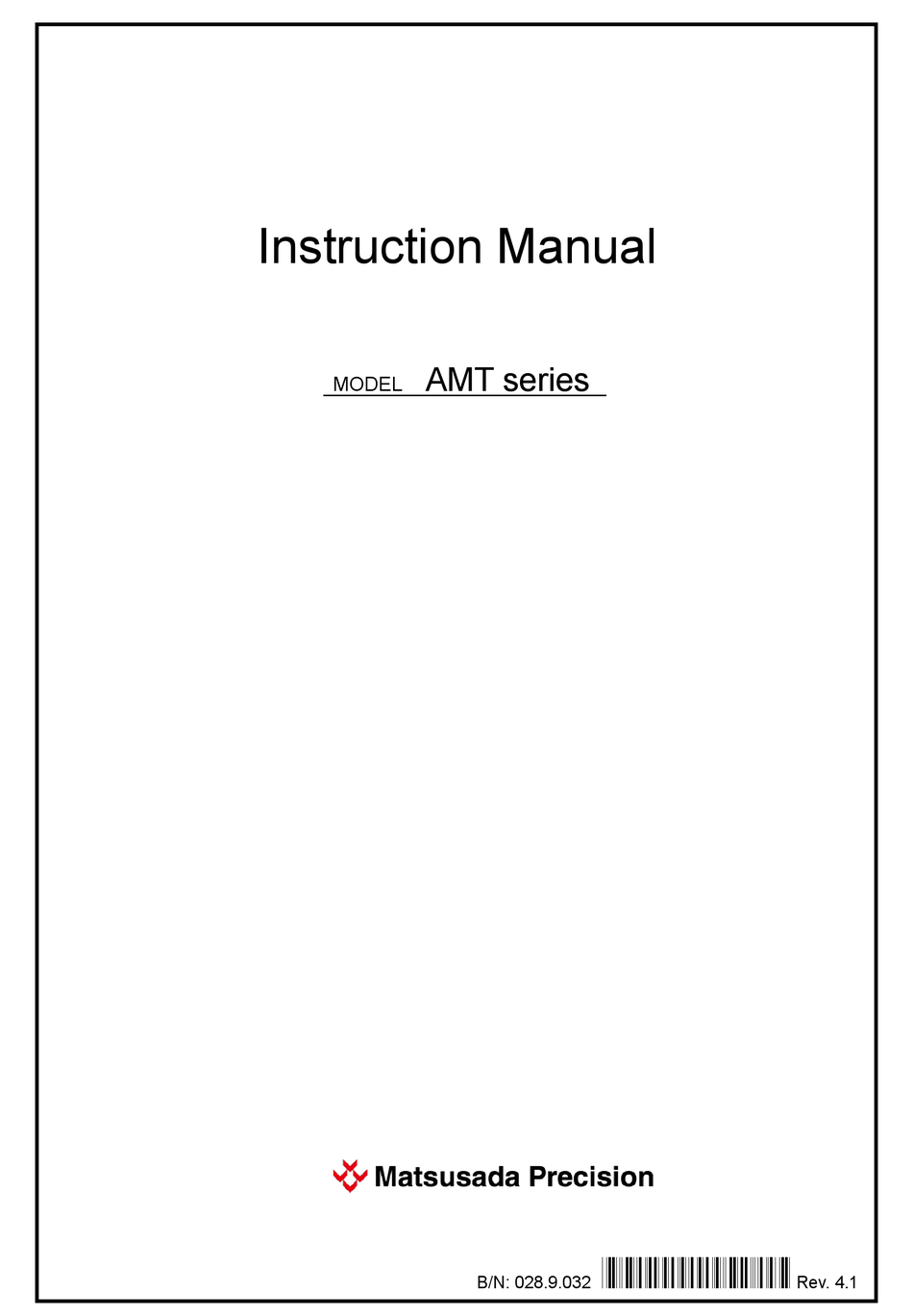

- Page 1 Instruction Manual AMT series MODEL *028.9.032* B/N: 028.9.032 Rev. 4.1...
- Page 2 ◆ No patent liability is assumed with respect to the use of the information contained herein. Moreover, because Matsusada Precision is constantly striving to improve its high-quality products, the information contained in this manual is subject to change without notice.
- Page 3 Bistable push button switch for preventing electric shock) Indicates the possible danger of death if Bistable push button switch you drink it and burns or blindness if it attaches. Indicates the possible danger of exposure Alternative Current to radiation. AMT series Matsusada Precision...
- Page 4 It may result in electric shock or fire. ◆ Regarding the input voltage Check the page describing the input terminals and input voltage in the instruction manual. Do not provide any voltage out of the specifications. AMT series Matsusada Precision...
- Page 5 In order to avoid electric shock, ground the terminals to discharge using a short-circuit grounding apparatus and check the voltage again. The terminals here mean all terminals like input and output terminals and terminals for communications and remote controls. AMT series Matsusada Precision...
- Page 6 It requires to be replaced at regular intervals to extend the lifetime. For the replacement, contact us. (It requires a replacement charge separately. Do not replace it by yourself, as there is a risk of electric shock.) AMT series Matsusada Precision...
-
Page 8: Table Of Contents
High-Voltage Output Cable 5m: -L(5m) ··················································································· 19 Conform to CE Marking, Input 100 Vac to 240 Vac: -CE ····························································· 19 8 Troubleshooting ······················································································································ 20 Troubleshooting Steps ········································································································ 20 No Output Voltage ········································································································ 20 Replacing Fuse on Rear Panel ······················································································· 20 Matsusada Precision AMT series... -
Page 9: Introduction
Before wiring, thoroughly check the unit for abnormalities. Check the panel and chassis for dents and other obvious impacts caused by transportation prior to operation. If any abnormalities should be found, contact both Matsusada Precision and the carrier. Transportation Method When carrying the product, carry it by two or more people. -
Page 10: Installation
Secure enough space around the product to get good ventilation. When installing the unit in a closed cabinet, take measures such as forced ventilation to prevent exhaust heat from the exhaust port returning to the intake port. As for repairs or modification, contact us. Matsusada Precision AMT series... -
Page 11: Specifications
The voltage, current, and power shown in the table are output to the output terminals of the unit. Never touch the output and sense terminals while the unit is running or just after turning it off. Matsusada Precision AMT series... -
Page 12: Specifications
*3: DC voltage display at DC output, Average voltage display at output 10 Hz or more *4: Over Voltage Category OVC II: Energy-consuming devices that are supplied with power from fixed equipment *5: Pollution degree Pollution degree 2: Only non-conductive pollution, except for temporary conductivity due to condensation. Matsusada Precision AMT series... -
Page 13: External Appearance
Bias setting dial (10-turn potentiometer) Output current monitor terminal (option) Output voltage monitor terminal External output ON/OFF terminal (10) Air intake (11) (12) (13) FUSE (14) (11) OUTPUT connector (12) GROUND (GND) terminal (13) FUSE (14) AC inlet Matsusada Precision AMT series... -
Page 14: Input/Output Connection
Be sure to electrically ground the product with the AC input terminal. Otherwise, it is dangerous for the user. Do not use the supplied AC input cable in any other purposes. Matsusada Precision AMT series... -
Page 15: Installation Procedure
3. If the other end which is not equipped with a plug, attach cramp terminals there, and then, connect them to a breaker. Connect L (Live line), N (Neutral line), and (Ground). The product has the AC fuse in the L. Wrong connection may cause electric shock or fire. Matsusada Precision AMT series... -
Page 16: Connecting Output Cable
Be sure to ground the GND terminal as mentioned above. Inappropriate grounding could cause electric shock or damage to the product. In case a short circuit or discharge of the load is expected, make the GND cable thicker and shorter. Matsusada Precision AMT series... -
Page 17: Use Precautions About High Voltage Amplifier
(1) The maximum rated voltage/current is not reached. (2) The waveform in the rated current operation / current monitoring is distorted or deformed. Concept diagram of leak current of high voltage amplifier Vout AMT series Vcon Output cable High voltage Current monitor... - Page 18 (=frequency bandwidth) fc [Hz] is given by a formula below. tr ≒ 0.35/fc The rise time tf is equal to tr. Vcon-in 100％ 90％ HVout 0％ 10％ 0％ ｔｒ ｔｆ (Fig.2) Matsusada Precision AMT series...
- Page 19 2. When operating the product or load, use the right hand and keep the left hand in a pocket to avoid touching other objects. 3. Immediately after turning off the voltage or long after turning off, ground the output more than 10 seconds before you touch the load. Matsusada Precision AMT series...
-
Page 20: Connecting Bnc Terminal
It is for -L1 option. Refer to [7-3 Output Current Monitor Terminal]. ・ Output voltage monitor terminal (Vmoni) Refer to [5-4 Output Voltage Monitor Terminal]. ・ External output ON/OFF terminal Refer to [5-5 External Output ON/OFF]. Matsusada Precision AMT series... -
Page 21: Operation
5 Operation Summary The AMT series a high-speed, high-voltage amplifier of the bipolar output voltage, taking advantage of Matsusada’s technology and expertise of high voltage. With the all-solid state design, the product provides the high performance and precise control. Operation Procedure 1. -
Page 22: Bias Setting
When the output voltage is set to the maximum, 10 V (+10 V for positive output, -10 V for negative output) is output from the output voltage monitor terminal on the front paneｌ. The output impedance is 1 KΩ. Matsusada Precision AMT series... -
Page 23: External Output On/Off
When using the open collector for the external output ON/OFF, follow the definition below. DEFINITION OF OPEN COLLECTOR Output Switch Open collector Short 0.4 V or less (10mA) 2 V or more (Open 5 V) Open Matsusada Precision AMT series... -
Page 24: Protections
This could cause malfunction or deterioration. In the case, it is strongly recommended to lower the frequency or install a resistor in series with the load. Matsusada Precision AMT series... -
Page 25: Output Range
DC Operation range Avoid continuous use at high frequencies that that would reduce the output amplitude of the unit. If not, internal losses will increase and cause malfunctions. For safety, be sure to ground GROUND terminal. Matsusada Precision AMT series... -
Page 26: Options
(Standard length: 1.5 meters) Conforms to CE marking safety standards with the input Conform to CE marking, voltage 100 to 240 Vac. Input 100 to 240 Vac ★Available model: AMT-5B20, AMT-10B10 *1: Selecting -L(230V) and -CE together is unavailable. Matsusada Precision AMT series... -
Page 27: Option Outline
Conform to CE Marking, Input 100 Vac to 240 Vac: -CE ★Available model: AMT-5B20, AMT-10B10 Conforms to CE marking safety standards with the input voltage 100 Vac to 240 Vac±10%. Refer to [2-2 Specifications] for details. Matsusada Precision AMT series... -
Page 28: Troubleshooting
After the replacement, push the cap until it is locked in place, and turn it clockwise. If nothing meets the above case, or if the problem is not solved after checking, please contact our sales office where you purchased the product. Matsusada Precision AMT series... - Page 30 Revision History Rev. No. Rev. Date Revision Contents 2023/01 Applied new format and corrected descriptions. 2023/04 Added an option and changed descriptions.
