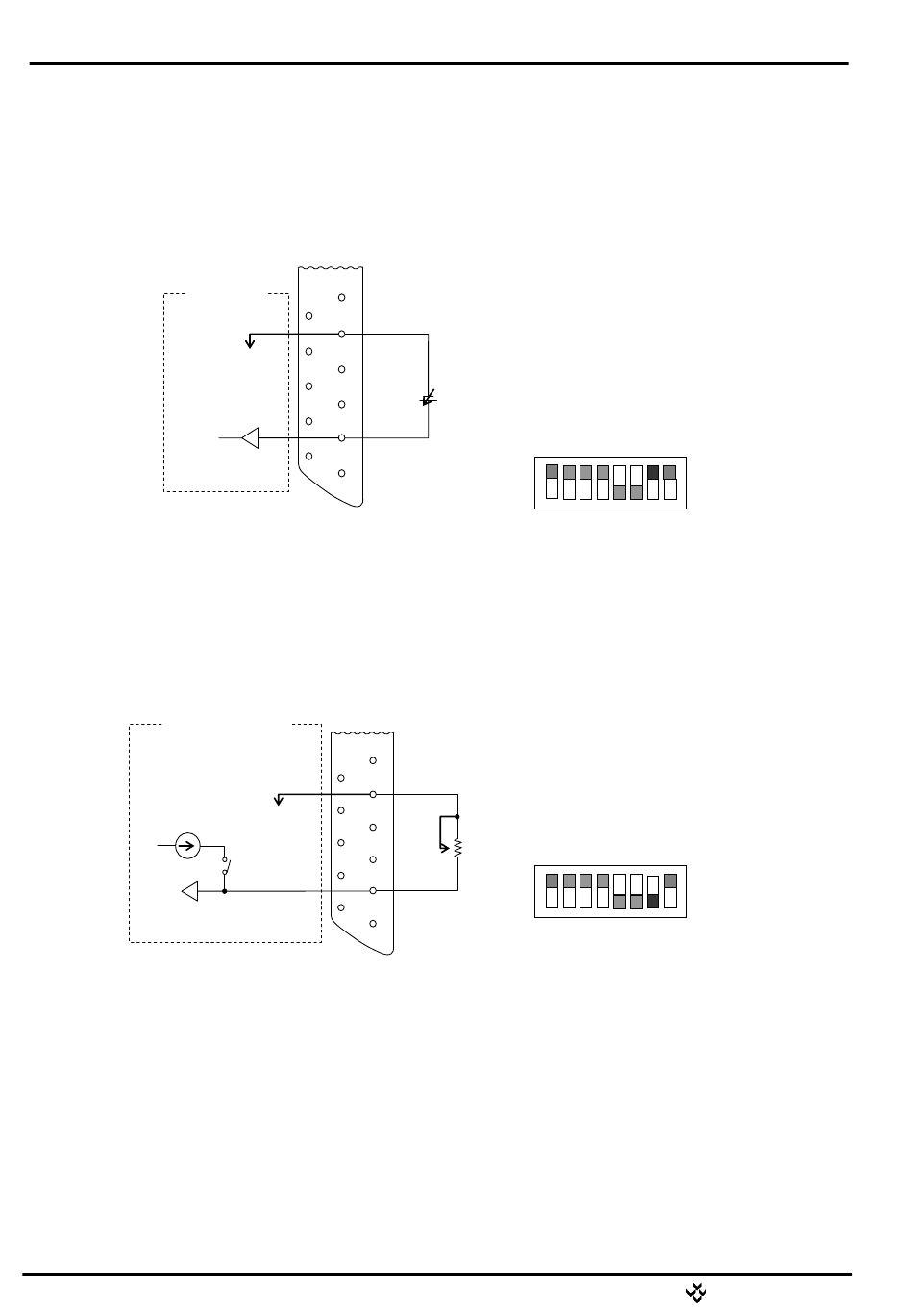

６-５-３ Setting the current program with external voltage
External voltage can control the output current.
Turn SW1-2 OFF.
(Input voltage of 0 to 10Vdc for 0 to rated output current)
* When there is no function-settings switch in a rear panel,
Set "E.Cur" in Start menu "Ext Cont" to "Volt".
Power supply unit
Internal circuit
６-５-４ Setting the current program with external resistance
External resistance can control the output current.
Turn SW1-2 ON.
(Resistor 0 to 10kΩ for 0 to rated output current)
* When there is no function-settings switch in a rear panel,
Set "E.Cur" in Start menu "Ext Cont" to "reSi"
Power supply unit
Internal circuit
- +
1mA
TB1
5
-S
( )
common
2
TB1
5
-S
( )
common
2
User connection
0-10VDC
+
8 7 6 5 4 3 2 1
User connection
0-10kΩ
8 7 6 5 4 3 2 1
70
６ Advanced Operation
SW1
RKT(1600W) Series
ON
SW1
RKT(1600W) Series
ON
