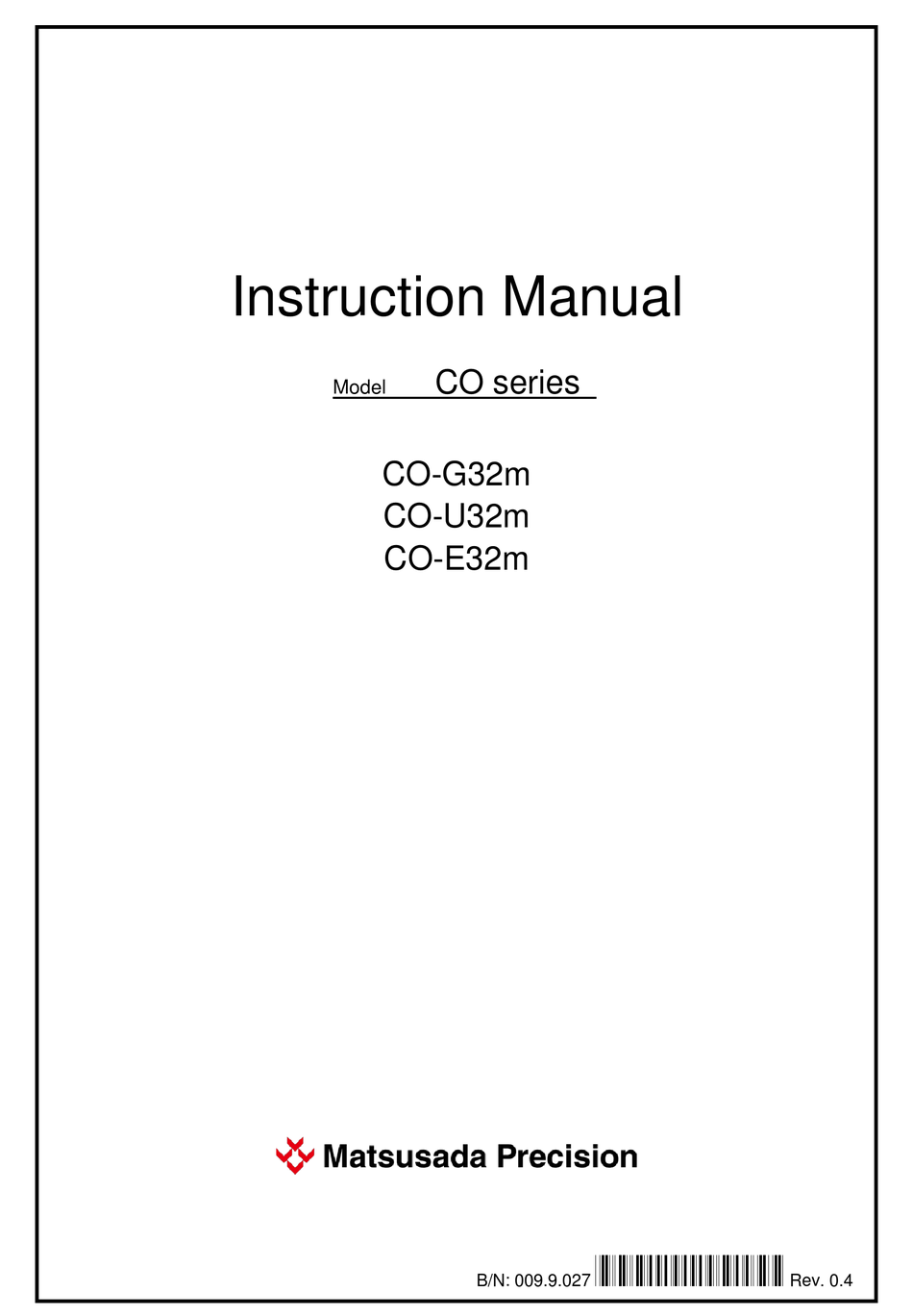

  • Page 1 Instruction Manual CO series Model CO-G32m CO-U32m CO-E32m *009.9.027* B/N: 009.9.027 Rev. 0.4...
  • Page 2 ◆ No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form, or by any means, mechanical, electronic, photocopying, recording, or otherwise, without the prior written permission of Matsusada Precision. ◆ No patent liability is assumed with respect to the use of the information contained herein.

  • Page 3: For Safe Use Of The Product

    Bistable push button switch for preventing electric shock) Indicates the possible danger of death if you Bistable push button switch drink it and burns or blindness if it attaches. Indicates the possible danger of exposure to Alternative Current radiation. CO series CO-G32m/CO-U32m/CO-E32m...
  • Page 4 In this case, do not open the case or panel of the product and contact us. ◆ Designed for indoor use. Use the product indoors only, not outdoors. Even indoors, do not use it if there is a possibility of water leakage, flooding, or snow covering. CO series CO-G32m/CO-U32m/CO-E32m...
  • Page 5 In order to avoid electric shock, ground the terminals to discharge using a short-circuit grounding apparatus and check the voltage again. The terminals here mean all terminals like input and output terminals and terminals for communications and remote controls. CO series CO-G32m/CO-U32m/CO-E32m...
  • Page 6 It requires to be replaced at regular intervals to extend the lifetime. For the replacement, contact us. (It requires a replacement charge separately. Do not replace it by yourself, as there is a risk of electric shock.) CO series CO-G32m/CO-U32m/CO-E32m...

  • Page 7: Table Of Contents

    5 Sample Program ............................. 17 5-1 GPIB Sample Program ..........................17 5-2 USB Sample Program （CO-U32m） ......................19 5-3 LAN Sample Program （CO-E32m） ......................20 5-3-1 VB Sample Program .......................... 20 5-3-2 VC Sample Program ......................... 22 CO series CO-G32m/CO-U32m/CO-E32m...

  • Page 8: 1 Introduction

    1 Introduction Introduction Thank you for purchasing our CO series. We have taken all possible measures to control the quality of our products. In order to get the full benefit of its superior performance and use it long and safe, handle it properly according to this manual.

  • Page 9: Handling Precautions

    (no condensation) Altitude 2,000m or lower *1 100 to 240 Vac for -L(U) option *2 OVCⅡ: Energy-consuming equipment supplied from fixed equipment. *3 Pollution degree 2: Only nonconductive pollution occurs except for temporary conductivity due to condensation. CO series CO-G32m/CO-U32m/CO-E32m...

  • Page 10: External View

    POWER LED ADDRESS setting switch POWER ON/OFF switch IEEE-488 connector CO-M cable connector (OUT) GROUND terminal AC input CO-U32m Front Panel Rear Panel POWER LED USB connector POWER ON/OFF switch CO-M cable connector (OUT) GROUND terminal AC input CO series CO-G32m/CO-U32m/CO-E32m...

  • Page 11: Co-E32M

    2 External View CO-E32m Front Panel Rear Panel POWER LED LAN reset switch POWER ON/OFF switch LAN connector CO-M cable connector (OUT) GROUND terminal AC input CO series CO-G32m/CO-U32m/CO-E32m...

  • Page 12: Dimensions [Mm]: Co-G32M

    2 External View Dimensions [mm]: CO-G32m Dimensions [mm]: CO-U32m CO series CO-G32m/CO-U32m/CO-E32m...

  • Page 13: Dimensions [Mm]: Co-E32M

    2 External View Dimensions [mm]: CO-E32m CO series CO-G32m/CO-U32m/CO-E32m...

  • Page 14: Connection

    Attach a crimped terminal or the like to the end of the input cable of the product, and ground the green/yellow wire. Connect the brown wire (L) and blue wire (N) to the power supply line via a circuit breaker or other circuit breaker. Brown: L Blue: N Green/Yellow: CO series CO-G32m/CO-U32m/CO-E32m...

  • Page 15: Connecting Interface

    Connecting Interface When connecting the product, turn off the power to all devices consisting of the system. Connecting CO-G32m (Example) GPIB cable CO-G32m Rear panel GPIB controller CO-M cable Connectable up to 16 units R4K-36 Rear panel CO series CO-G32m/CO-U32m/CO-E32m...

  • Page 16: Co-U32M (Example)

    3 Connection CO-U32m (Example) USB cable CO-U32m Rear panel USB controller CO-M cable Connectable up to 16 units R4K-36 Rear panel CO series CO-G32m/CO-U32m/CO-E32m...

  • Page 17: Co-E32M (Example)

    3 Connection CO-E32m (Example) LAN cable CO-E32m Rear panel LAN controller CO-M cable Connectable up to 16 units R4K-36 Rear panel CO series CO-G32m/CO-U32m/CO-E32m...

  • Page 18: Functional Description

    Be sure to turn off power before setting them as they are loaded when the unit starts up. USB Setting (CO-U32m) Download the USB driver from our website and install it. To install the USB Driver, refer to “USB Driver Installation Guide”. Delimiter is CR(0D ) fixed. CO series CO-G32m/CO-U32m/CO-E32m...

  • Page 19: Lan Setting (Co-E32M)

    In order to initialize the network, turn the power on while pressing the "LAN reset switch" on the CO-E32m's rear panel. The network address and other settings will be set to the initial values above. LAN reset switch CO series CO-G32m/CO-U32m/CO-E32m...

  • Page 20: Web Manager

    The setting screen appears. * If the proxy setting is enabled in your browser, deactivate it, or exclude the set IP address. * When Internet Explorer 11 is used, add the IP address to the compatibility view setting. CO series CO-G32m/CO-U32m/CO-E32m...
  • Page 21 Setting "Enable" enables the Dynamic Host Configuration Protocol (DHCP) to DHCP automatically assign IP addresses. Setting 'Enable' enables IP creation in the address range of class B subnet AutoIP 169.254.x.x. DHCP Host Name Name the host providing IP addresses. CO series CO-G32m/CO-U32m/CO-E32m...
  • Page 22 3. Set the "IP Address", "Subnet Mask", "Default Gateway", and "DNS Server" according to your network status. 4. Click the [OK] button when you have completed the settings. 5. Click the "Apply Settings" button in the setting screen. CO series CO-G32m/CO-U32m/CO-E32m...

  • Page 23: Delimiter

    2. Select "Auto Negotiate" in "Ethernet Configuration". 3. Click the "OK" button when you have completed the settings. 4. Click the "Apply Settings" button in the setting screen. Delimiter The delimiter is CR (0D ) and fixed. CO series CO-G32m/CO-U32m/CO-E32m...

  • Page 24: Sample Program

    Call ibdev(0, gpib_address, 0, T1s, 0, &H1C0A, udGP) ' Address=1, EOI + LF If udGP = -1 Then 'Error checking GoTo ErrorHandler End If Label5.Caption = "Com OK!" Exit Sub ErrorHandler: Label5.Caption = "Com NG!" End Sub CO series CO-G32m/CO-U32m/CO-E32m...
  • Page 25 ' Send commands from the power supply unit via CO-G32m. If ibcntl = 0 Then GoTo ErrorHandler End If rdata = Left(strReadBuffer, ibcntl) rdata = rdata Label3.Caption = rdata 'Indicate the data received Label5.Caption = "Read OK!" Exit Sub ErrorHandler: Label5.Caption = "Read NG!" End Sub CO series CO-G32m/CO-U32m/CO-E32m...

  • Page 26: Usb Sample Program （Co-U32M

    For I = Forms.Count - 1 To 1 Step -1 Unload Forms(I) Next End Sub USB Sample Program （CO-U32m） Download the USB driver from our website. Refer to “USB Driver Installation Guide” regarding the USB sample program. CO series CO-G32m/CO-U32m/CO-E32m...

  • Page 27: Lan Sample Program (Co-E32M)

    Label5.Caption = "" ‘Get the word data from Text1. wdata = Text1.Text & Chr(&HD) ‘Send data to remote computer (power supply unit). Winsock1.SendData wdata Label5.Caption = "Write OK!" Exit Sub ErrorHandler: Label5.Caption = "Write NG!" End Sub CO series CO-G32m/CO-U32m/CO-E32m...
  • Page 28 Private Sub Winsock1_DataArrival(ByVal bytesTotal As Long) ‘Winsock1 Dim rdata As String ‘Get data. Winsock1.GetData rdata strReadBuffer = strReadBuffer & rdata ‘Add the data to buffer. End Sub Private Sub Form_Unload(Cancel As Integer) ‘Close Winsock1. Winsock1.Close End Sub CO series CO-G32m/CO-U32m/CO-E32m...

  • Page 29: Vc Sample Program

    (struct sockaddr *)&sockaddr, sizeof(sockaddr) ) == SOCKET_ERROR) { Connection error Sent process char buf[256]; CString strbuf; strbuf = "ren¥r"; REN command to power supply setting strcpy(buf, strbuf); if (send(sock, buf, lstrlen(buf), 0) == SOCKET_ERROR) { Send command Send error CO series CO-G32m/CO-U32m/CO-E32m...
  • Page 30 (tmp == SOCKET_ERROR) { Error generated(Receive fail). // Receive fail return; else if (tmp <= 0) { Socket abort // Socket abort return; else { buf[tmp] = '¥0'; Set NULL at the end of buffer. strbuf.Format( "%s", buf); return; CO series CO-G32m/CO-U32m/CO-E32m...
  • Page 31 Revision History Rev. No. Rev. Date Revision Contents 2003/11 First edition 2023/07 Applied a new format, etc.
