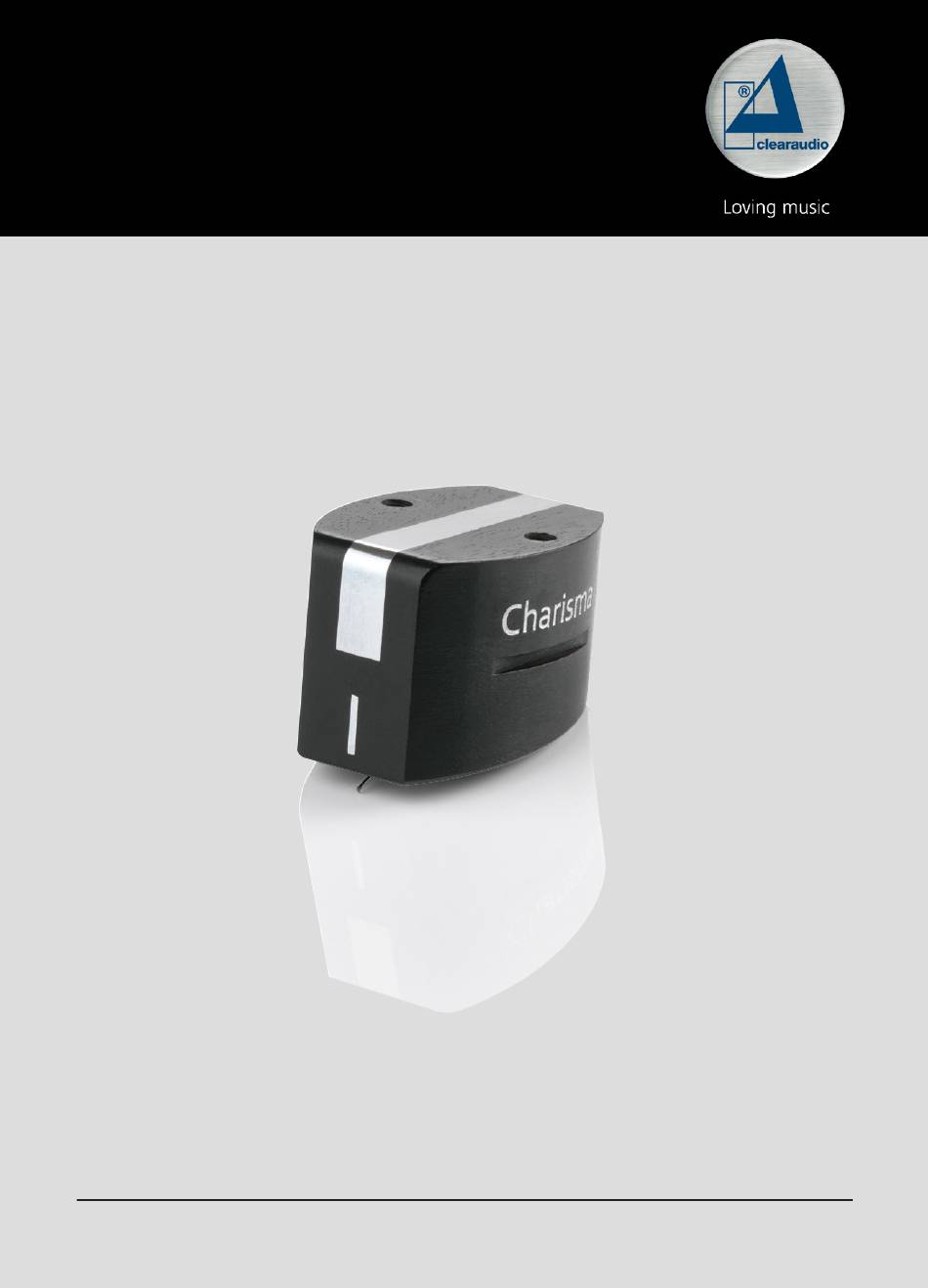

- Page 1 Charisma V2.1 MM User manual Bedienungsanleitung © clearaudio electronic GmbH Made in Germany...
- Page 2 User manual ........2 – 11 Bedienungsanleitung ...... 12 - 20 Dear audio enthusiast, each component part that makes up a Clearaudio V2.1 MM cartridge is measured several times, analysed and hand-selected, as is the final, completed cartridge. Every cartridge is 100% “Made in Clearaudio’s own dedicated in-house team, thus...
- Page 3 For fine adjustment, however, we can only provide general guidelines, since the optimal adjustment depend primarily on your specific tonearm and turntable. Many thanks again for choosing Clearaudio. Charisma V2.1 We wish you much musical enjoyment with your new cartridge.
- Page 4 Important - please note: Do not try to remove the stylus assembly yourself. Any damage caused by failure to follow the advice given in the Clearaudio user manual will invalidate the product warranty. Clearaudio will assume no liability for any such damage.
- Page 5 Otherwise serious damage could occur. 3. Service If any servicing or repair of a Clearaudio product is necessary, please first contact your dealer or distributor. Alternatively contact Clearaudio directly and we will inform you about your nearest service location.
- Page 6 Contents 1. Included accessories ......7 2. Mounting procedure .......8 - 9 3. Adjustment of the tracking force ...10 4. Technical data ........11 Warranty information .........22 - 23 Page / Seite 6 © clearaudio electronic GmbH...
- Page 7 • Allen key 2mm • Cartridge mounting screws (2pcs. M2.5 x 10mm; 2 pcs. M2.5 x 8mm) • User manual Additional analogue accessories are available at: www.analogshop.de. The following are recommended: Test Record Clearaudio • (Art. No. LP43033) Break-In Test Record Clearaudio •...
- Page 8 Be careful not to over-tighten the screws as they may strip the threaded holes. Now connect the pins of your Clearaudio cartridge to the jacks of the headshell or tonearm cable, taking care not to use too much force. If necessary, you can use suitable precision pliers or tweezers for assistance.
- Page 9 User manual / Bedienungsanleitung We recommend the following order of assembly: Charisma V2.1 1. Mount the MM cartridge into the tonearm. 2. Connect the tonearm or turntable ground with the preampli ier ground (before plugging in the electrical power supply). 3.
- Page 10 Clearaudio importer/dealer. Further valuable information for the correct adjustment of your cartridge can be found in the respective user manual of the turntable and/or tonearm manufacturer. Page / Seite 10 © clearaudio electronic GmbH...
- Page 11 Coil impedance (1kHz): 0.66kΩ Coil inductance: 400mH Load resistance: 47kΩ Load capacitance: 100pF Cantilever / stylus shape: Boron / Clearaudio Prime Line Compliance: 17μ/mN Cartridge body: Ebony wood with German Silver inlay Manufacturer’s warranty: 2 years Made in Germany Page / Seite 11...
- Page 12 Handmade in Germany Clearaudio Electronic accepts no liability for any misprints. Technical specifications are subject to change or improvement without prior notice. Product availability is as long as stock lasts. Copies and reprints of this document, including extracts, require written consent from Clearaudio Electronic GmbH, Germany.
