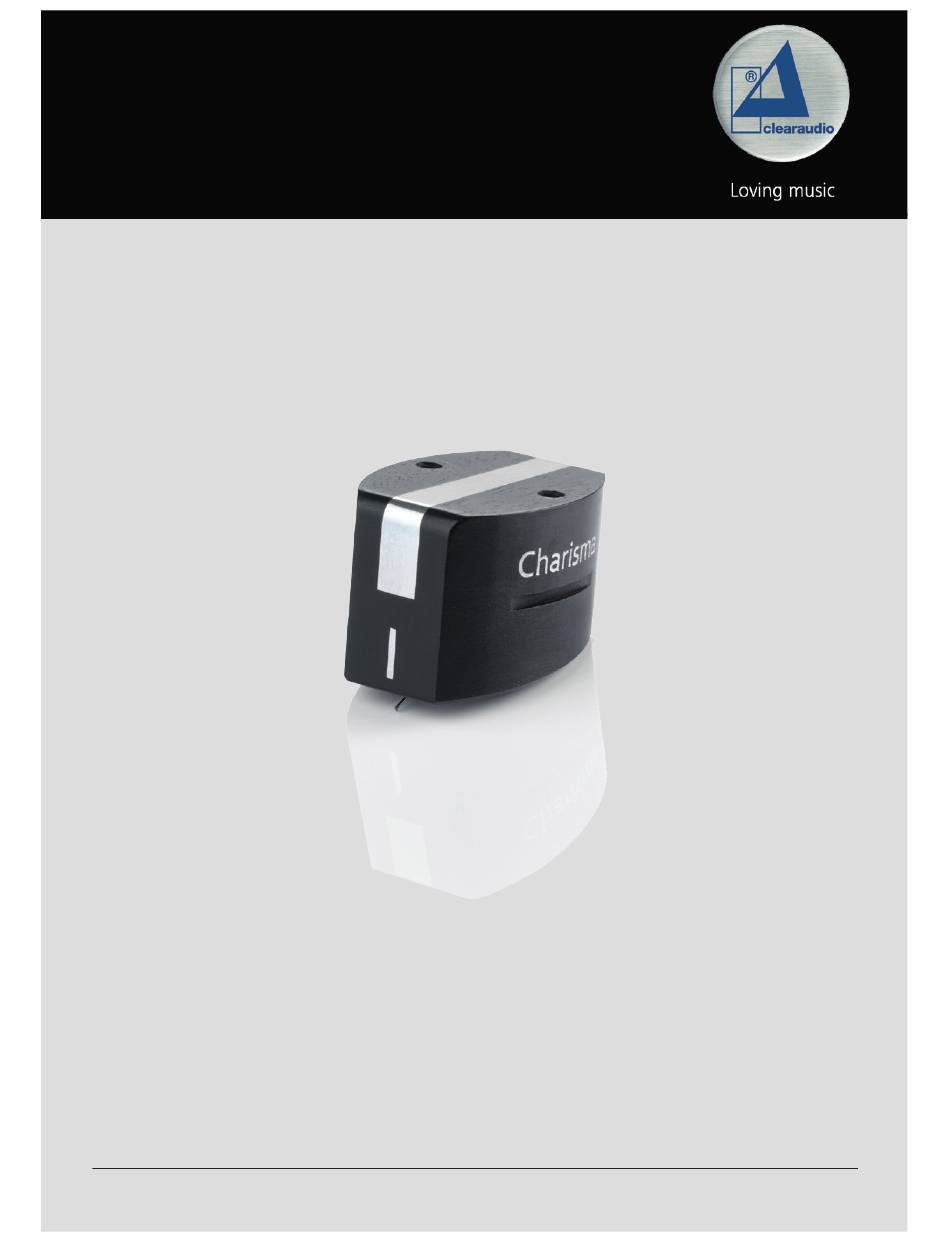

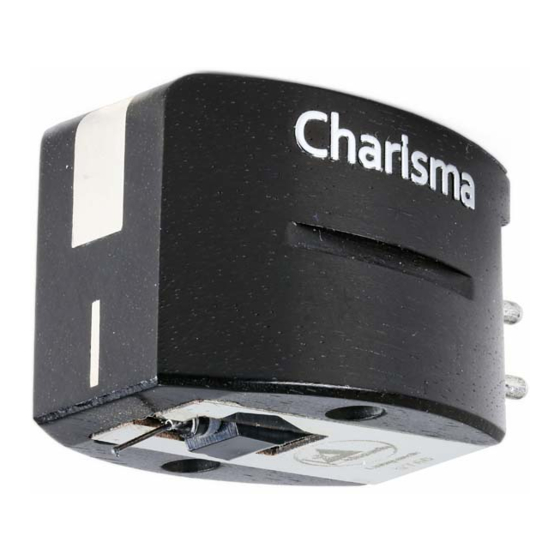

- Page 1 Charisma V2 MM User manual Bedienungsanleitung © clearaudio electronic GmbH Made in Germany...
- Page 2 User manual ........2 – 11 Bedienungsanleitung ...... 12 - 21 Dear audio enthusiast, each component part that makes up a Clearaudio V2 MM cartridge is measured analysed and hand-selected, as is the final, completed cartridge. Every cartridge is 100% “Made in Germany” by Clearaudio’s own dedicated in-house team, thus ensuring its uniqueness and quality.
- Page 3 For fine adjustment, however, we can only provide general guidelines, since the optimal adjustment depend primarily on your specific tonearm and turntable. Many thanks again for choosing Clearaudio. Charisma V2 MM We wish you much musical enjoyment with your new cartridge.
-
Page 4: Table Of Contents
User manual / Bedienungsanleitung Contents 1. Included accessories ......5 2. Mounting procedure .......6 - 7 3. Adjustment of the tracking force ...8 4. Special instructions ........9 - 10 5. Technical data ........11 Warranty information .........22 - 23 Page 4 © clearaudio electronic GmbH... -
Page 5: Included Accessories
• Cartridge mounting screws (2pcs. M2.5 x 10mm; 2 pcs. M2.5 x 8mm) • User manual Additional analogue accessories are available at: www.analogshop.de The following are recommended: Test Record • Clearaudio (Art. No. LP43033) Break-In Test Record • Clearaudio (Art. No. BIN070904) Setting Template •... -
Page 6: Mounting Procedure
Be careful not to over-tighten the screws as they may strip the threaded holes. Now connect the pins of your Clearaudio cartridge to the jacks of the headshell or tonearm cable, taking care not to use too much force. If necessary, you can use suitable precision pliers or tweezers for assistance. - Page 7 User manual / Bedienungsanleitung We recommend the following order of assembly: Charisma V2 1. Mount the MM cartridge into the tonearm. 2. Connect the tonearm or turntable ground with the preamplifier ground (before plugging in the electrical power supply). 3. Plug the tonearm cable into the phono inputs of your preamplifier.
-
Page 8: Adjustment Of The Tracking Force
Clearaudio importer/dealer. Further valuable information for the correct adjustment of your cartridge can be found in the respective user manual of the turntable and/or tonearm manufacturer. Page 8 © clearaudio electronic GmbH... -
Page 9: Special Instructions
Use a high quality cleaning brush or Clearaudio cleaning fluid to clean the stylus tip. Be extremely careful and always brush only from back to front. When using a liquid e.g. from Clearaudio or other organic cleaner, always take care not to spill any on the cartridge body. - Page 10 Do not try to remove the stylus assembly yourself. Please contact your dealer / distributor. Any damage caused by failure to follow the advice given in the Clearaudio user manual will invalidate the product warranty. Clearaudio will assume no liability for any such damage.
-
Page 11: Technical Data
User manual / Bedienungsanleitung 5. Technical data Total mass: 9.0g (± 1g) Frequency response: 20Hz - 20kHz Output voltage (1kHz, 5cm/s): ~ 3.6mV Channel separation (1kHz): 30dB Channel balance (1kHz): 0.2dB Tracking ability: 90μm Recommended tracking force: 2.4g (± 0.3g) Coil impedance (1kHz): 0.66kΩ...
