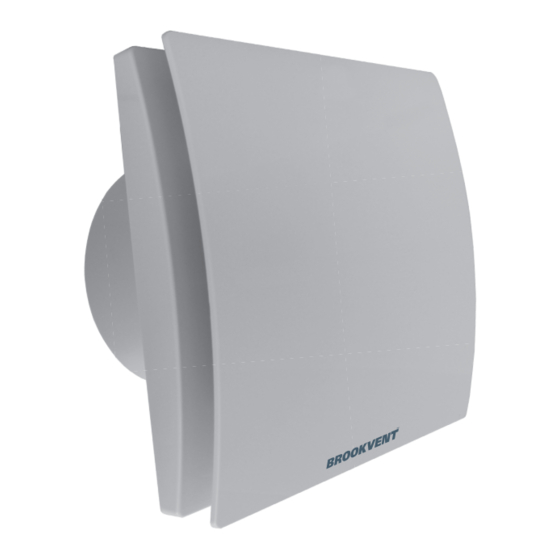

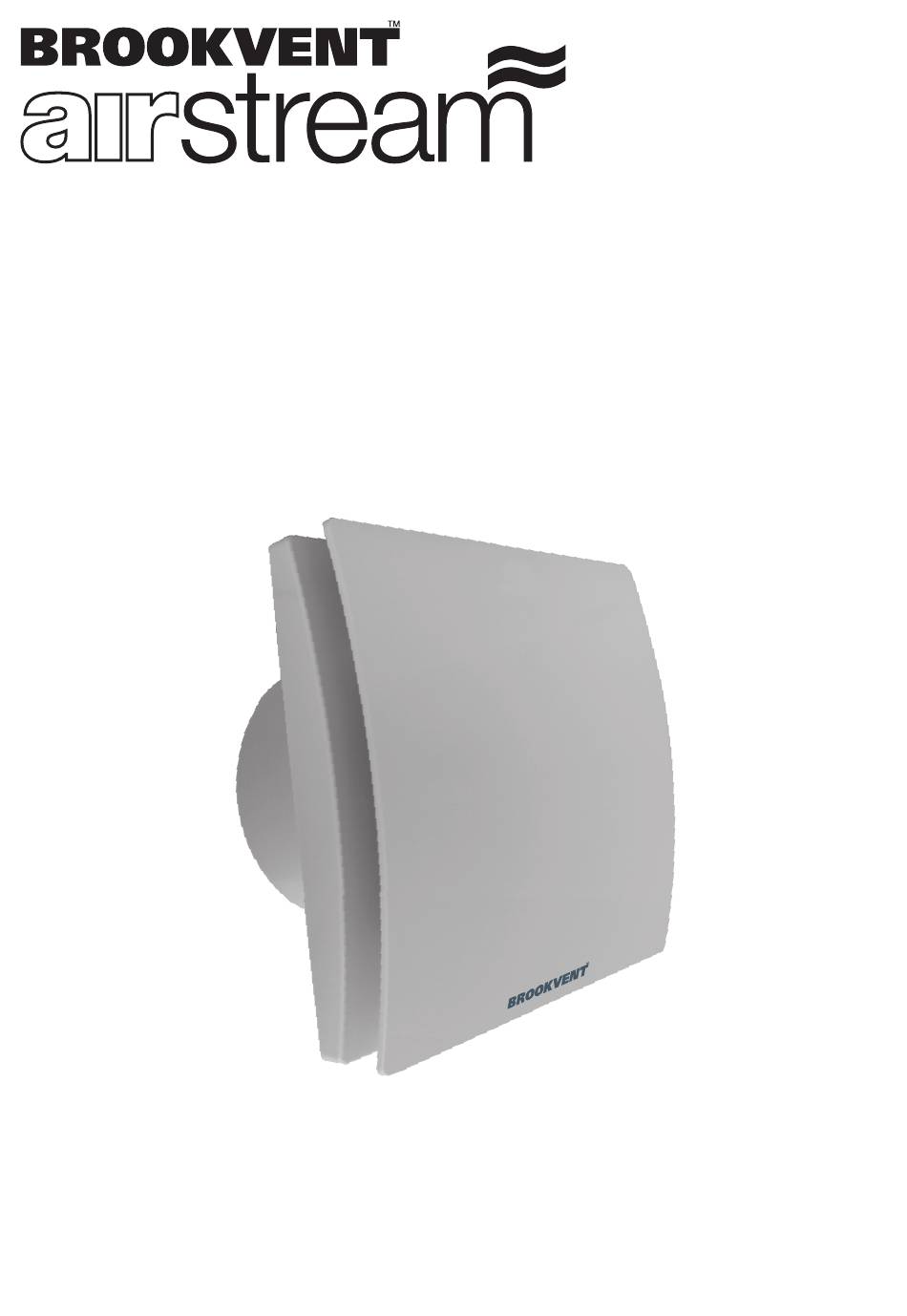

- Page 1 DMEV HT SINGLE FLOW DECENTRALISED MECHANICAL VENTILATION UNIT FOR CONTINUOUS RUNNING Installation, maintenance & user manual PRODUCT CODE DESCRIPTION AF 90-DMEV-100HT airstream DMEV 100 HT brookvent.co.uk...
-
Page 2: Table Of Contents
CONTENTS PLEASE KEEP THESE INSTRUCTIONS WITH THE PRODUCT. Please read this manual fully prior to installing the MVHR unit. Introduction ..........................Model Variations ..........................Product Guarantee ..........................Safety ............................Technical specifications ..........................Operation ............................. Minimum continuous speed ........................Intermediate speed ..........................Maximum speed .......................... -
Page 3: Introduction
In the instance of a defect, Brookvent may repair the product, replace the product free of charge or refund the cost of the product at Brookvent’s own discretion. In terms of installation, operation and maintenance please follow all instructions provided. -
Page 4: Safety
2.0 Safety The device should not be used for applications other than those specified in this manual. After removing the product from its packaging, verify its condition. In case of doubt, contact a qualified technician. Do not leave packaging within the reach of small children or people with disabilities. ... -
Page 5: Technical Specifications
2.1 Technical specifications Material: high quality, impact and UV-resistant ABS colour RAL 9010. Design front cover removable for cleaning without the use of tools. High efficiency aerodynamic fan with “winglet” blades to optimise quietness and efficiency. Single phase EC Brushless motor for energy saving, with integral thermal protection. ... -
Page 6: Minimum Continuous Speed
3.1 MINIMUM CONTINUOUS SPEED Upon power-up, the unit runs at the minimum continuous speed settable from 0 to 58m /h (i.e. from 0 to 16l/s) by means of the switches as per table Dip Switch A. 3.2 INTERMEDIATE SPEED The unit runs automatically at the intermediate speed settable from 29 to 72m3/h (i.e. from 8 to 20l/s) by means of the switches as per table Dip Switch A. -
Page 7: Constant Flow Operation
3.5 CONSTANT FLOW OPERATION DIP SWITCH B When the constant flow operation in enabled, the unit speeds up or slows down depending on costant flow the variations of the resistances caused by long length ducting or external windy conditions. enabled The constant flow operation can be enabled/ disabled by means of switch 1 of Dip Switch B. -
Page 8: Installation
4.0 INSTALLATION (Pic.1) wall ceiling (accessory on demand) direct exhausting ducted 5.0 MOUNTING AND WIRING DIAGRAM FIG.2: CONTENUTO IMBALLO QDMEV click! 2 NUOVE FIGURE: ASSEMBLAGGIO STATORE (DA INSERIRE TRA LE FIG. 5 E 6) DETAIL B DETAIL A... - Page 9 click! 2 NUOVE FIGURE: ASSEMBLAGGIO STATORE (DA INSERIRE TRA LE FIG. 5 E 6) click! DETAIL B LAGGIO STATORE 5 E 6) DETAIL B DETAIL A DMEV 100 = ø99mm IMMAGINE 7 CAVO A PARETE IMMAGINE 8A - 9A OK! AX 150 IMMAGINE 12A IMMAGINE 1:...
- Page 10 CAVO A PARETE ød d IMMAGINE 8A - 9A OK! ø10mm IMMAGINE 12A IMMAGINE 12B RECESSED CABLE ENTRY 4 x ø 5 mm H03VV-F ; H05VV-F 2 X 0,5 ÷ 1,5mm 3 X 0,5 ÷ 1,5mm...
- Page 11 IMMAGINE 12B IMMAGINE 11B IMMAGINE 12B IMMAGINE 11B • When wiring to the PCB terminals, do not overtighten the screws: maximum torque 0,15Nm. CLICK...
-
Page 12: Maintenance/Cleaning
6.0 MAINTENANCE / CLEANING... -
Page 13: Erp Directive - Regulations 1253/2014 - 1254/2014
7.0 ErP Directive - Regulations 1253/2014 - 1254/2014 Mark BROOKVENT Model DMEV 100 HT SEC class SEC warm climates kWh/m -11,1 SEC average climates kWh/m -25,5 SEC cold climates kWh/m -50,6 Energy label Unit typology Residential - unidirectional Type of drive... -
Page 14: Disposal And Recycling
Customer Support At Brookvent we pride ourselves on providing Gold Standard after sales and support to all customers. Please feel free to contact one of our specialist team about any query you may have and we will be more than happy to assist you. - Page 15 DMEV HT V1 24.05.2023 UK brookvent.co.uk...
