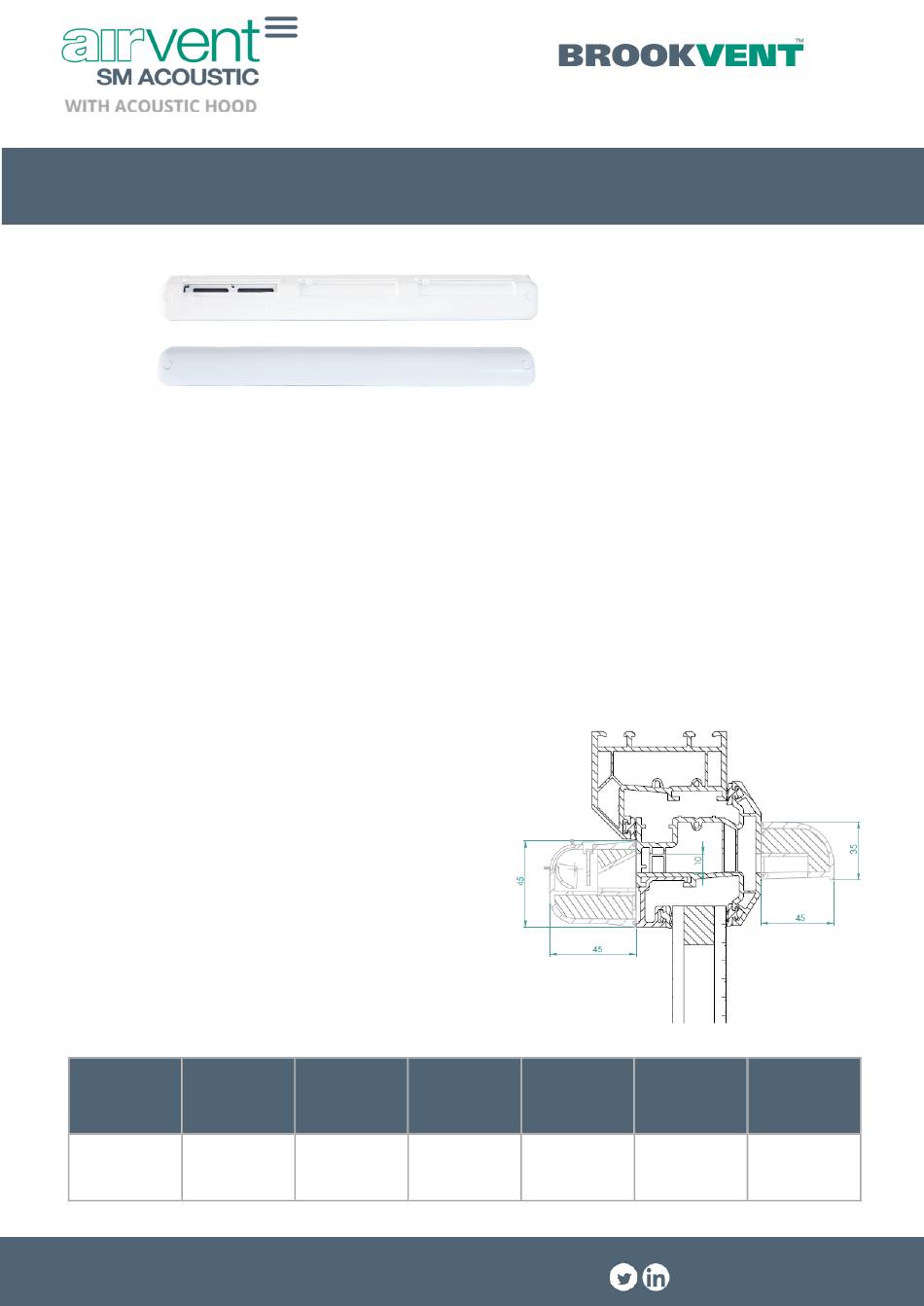

BrookVent AIRVENT SM ACOUSTIC Installation And Operation Manual

WITH ACOUSTIC HOOD
Installation and Operation Guide

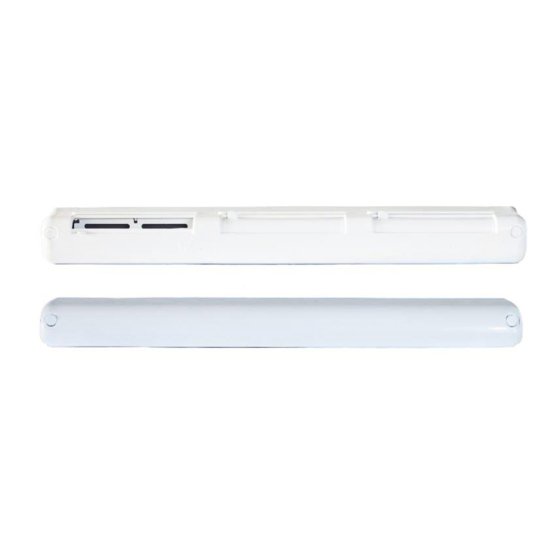

Internal Vent
External hood
FITTING THE INTERNAL VENT (See Table 1):
1. Ensure that the vent is in the closed position.
2. Line the screw holes on the vent or hood over the screw
holes in the frame.
3. Screw the vent to the frame (care should be taken not
to over tighten the screws).
4. Insert the vent screw cap covers.
FITTING THE EXTERNAL HOOD (See Table 1):
1. Place the hood over the slot ensuring that the slot is
completely covered.
2. Screw the hood to the frame (care should be taken not
to over tighten the screws).
3. Insert the hood screw cover caps.
INSTALLATION DIMENSIONS:
Table 1
Min Geometric
Open Area
(sq.mm)
3000
V1 25.06.20 UK
O/A Slot O/A Slot
Height Length
(mm) (mm)
10 350
INSTALLATION INSTRUCTIONS:
1. Prepare the slots and pre drill the holes
as per Table 1 avoiding glazing rebates.
2. For added weather performance silicon
sealant should be used on the top of
the hood.
3. Included are: KDH screws
45mm – 4 pcs.), caps (diameter: 9mm –
4 pcs.), O-rings – 4 pcs.
4. The screw should be suitable for the
material it is being used in.
* These screws are designed for use on wooden
frames. If using a PVC or Aluminium frame, please use
an apropriate alternative.
CROSS SECTION DIMENSIONS [mm]:
O/A Vent Vent Hole
Length Centres
(mm) (mm)
399 377
*
PVC Frame
O/A Hood Hood Hole
Length Centre
(mm) (mm)
399 377
brookvent.co.uk
(3.5 x
