User Guide

Installation Instructions

1. Prepare the slots and pre drill the holes as per Table 1 (overleaf) avoiding glazing rebates.
2. For added weather performance silicon sealant should be used in the groove in the top of the hood.
3. Screws should be Pan-head screws (e.g. No.6 x 5/8 self-tap Pan Pozi S/S A2). Do not use Countersunk screws.
4. The screw should be suitable for the material it is being used in.
Fitting the Internal Vent
1. Ensure that the vent is in the closed position (check that the hole in the fixing wedge is concentric with the hole in
the vent body).
2. Screw the vent to the frame (care should be taken not to over tighten the screws).
3. Insert the vent screw cover caps.
Fitting the External Hood
1. Place the hood over the slot ensuring that the slot is completely covered.
2. Screw the hood to the frame (care should be taken not to over tighten the screws).
3. Insert the hood screw cover caps.
(See Table 1)
(See Table 1)

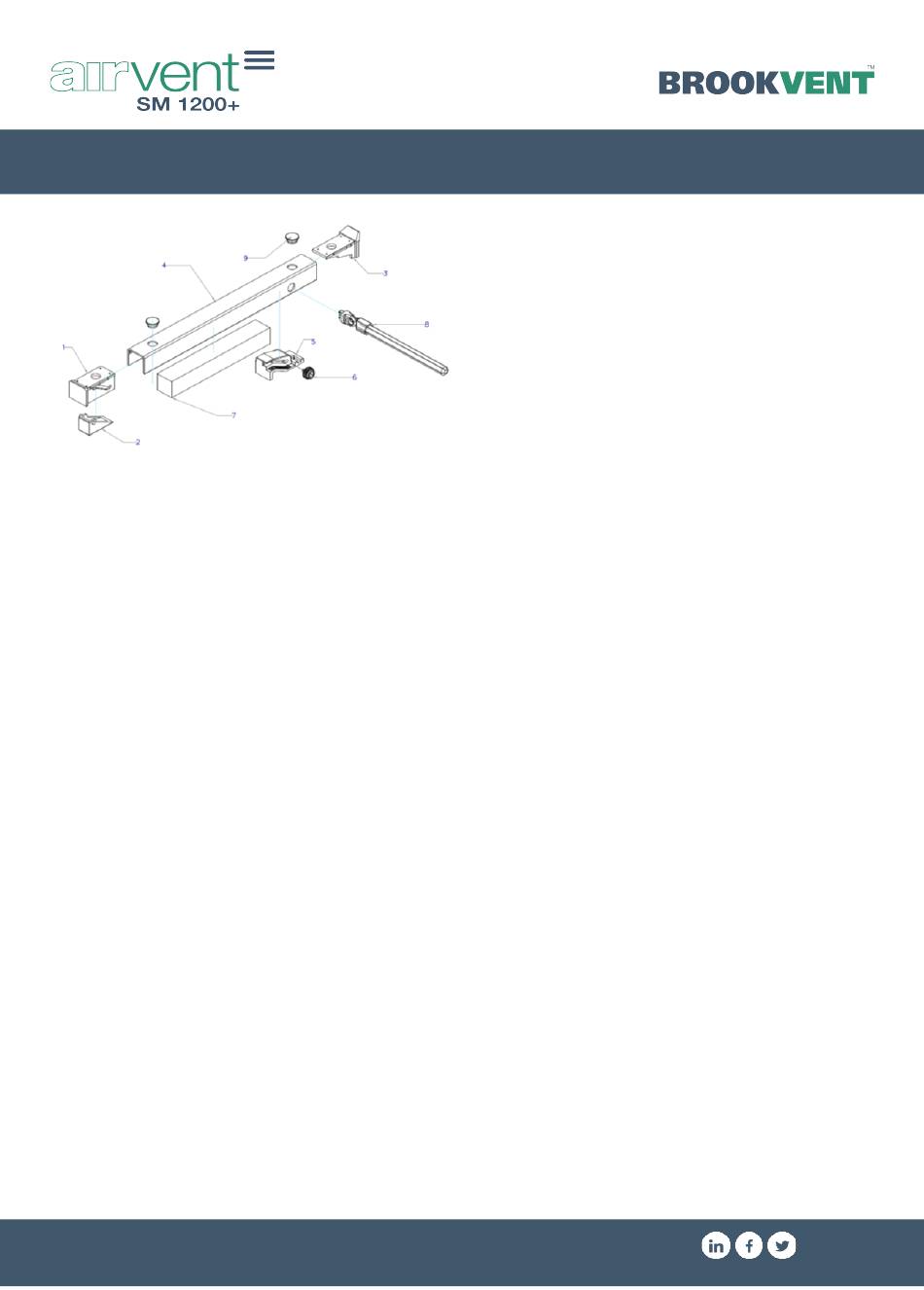

1. Endcap Blank
2. Endcap Wedge
3. Endcap Control
4. Vent Body
5. SM1200+ RH Rack
6. Pinion
7. Foam Seal
8. Rod Sub Assembly
9. Vent screw cover caps
brookvent.co.uk

Advertisement

loading
Need help?

Need help?

Do you have a question about the AirVent SM 1200+ and is the answer not in the manual?

Questions and answers

Related Manuals for BrookVent AirVent SM 1200+

Summary of Contents for BrookVent AirVent SM 1200+

  • Page 1: Installation Instructions

    (See Table 1) 1. Place the hood over the slot ensuring that the slot is completely covered. 2. Screw the hood to the frame (care should be taken not to over tighten the screws). 3. Insert the hood screw cover caps. brookvent.co.uk...
  • Page 2 3. Do not block the internal vent or external hood For the ventilation to work effectively the vent should be left in the open position as much as possible to maintain the indoor air quality and a healthy indoor environment. brookvent.co.uk...
  • Page 3 Wipe the ventilator with a clean damp cloth. The frequency at which this needs to be done is dependent on local conditions. Clean away blockages with a soft brush or cloth. Do not lubricate. Where there is access and it is safe to do so; the above instructions also apply to the hood. brookvent.co.uk...
