single flow decentralised
mechanical ventilation unit
for continuous running
Installation, maintenance & user manual
Applicable to the following airstream DMEV models:
PRODUCT CODE
AF 90-DMEV-100
AF 90-DMEV-100CF
AF 90-DMEV-100HT
AF 90-DMEV-150HT
DESCRIPTION

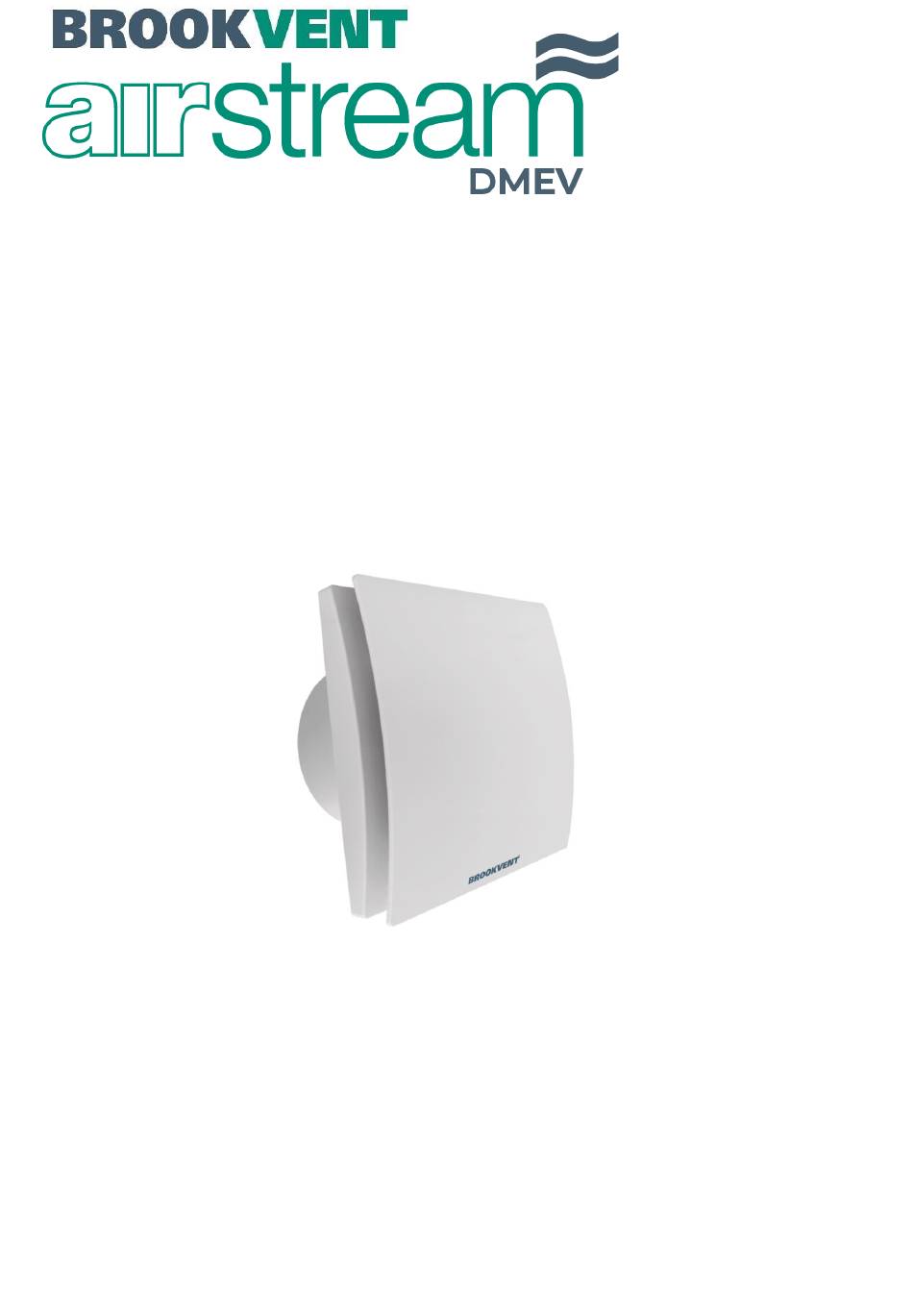

airstream DMEV 100
airstream DMEV 100 CF
airstream DMEV 100 HT
airstream DMEV 150 HT
brookvent.co.uk
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for BrookVent AF 90-DMEV-100

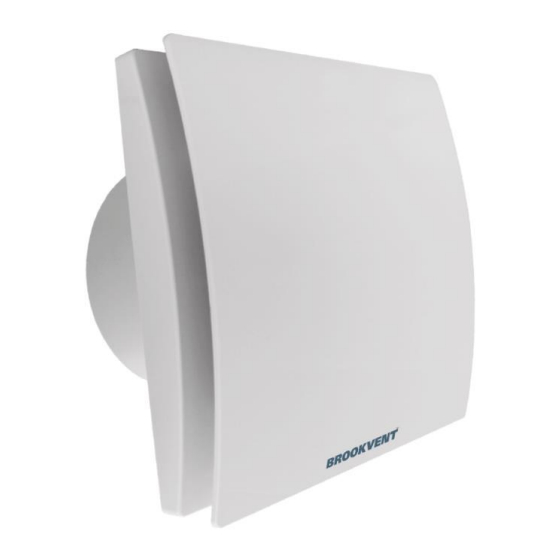

Summary of Contents for BrookVent AF 90-DMEV-100
- Page 1 Installation, maintenance & user manual Applicable to the following airstream DMEV models: PRODUCT CODE DESCRIPTION AF 90-DMEV-100 airstream DMEV 100 AF 90-DMEV-100CF airstream DMEV 100 CF AF 90-DMEV-100HT airstream DMEV 100 HT AF 90-DMEV-150HT airstream DMEV 150 HT brookvent.co.uk...
-
Page 2: Table Of Contents
ErP Directive – Regulations 1253/2014 – 1254/2014 ............8 SAP Appendix Q Results ....................11 Airflow: Pressure/ Performance Curve ................12 Mounting ........................... 13 Electrical Connections/ Wiring ..................16 Wiring Schematic ......................16 Controls and Settings ......................18 Maintenance ........................21 Customer Support ......................... 23 IMPORTANT 1/23 brookvent.co.uk... -
Page 3: Introduction
In the instance of a defect, Brookvent may repair the product, replace the product free of charge or refund the cost of the product at Brookvent’s own discretion. -
Page 4: Safety
Safety The following information must be read carefully to ensure safe installation and operation of the Brookvent airstream DMEV unit. General Safety It is important that the full installation of this system is carried out by competent persons, including all electrical works and connections being completed by a qualified electrician. -
Page 5: Responsibility Of The Installer
Explanation of the ventilation system to the user. ✓ All the above, as set out in the latest edition of the Domestic Ventilation ✓ Compliance Guide and the SAP Appendix Q – Installation Guide and Checklist specific to the UK market. 4/23 brookvent.co.uk... -
Page 6: Responsibility Of The Occupant
To ensure that the system is functioning properly on a regular basis ✓ To use manual boost switches (where provided) to prevent build-up of pollutants ✓ or mould growth. Specifications/ Dimensions Product Version Weight airstream DMEV 100 0,6 kg airstream DMEV 150 1,2 kg 5/23 brookvent.co.uk... -
Page 7: Installation
Installation Perimetrical exhausting Wall Window kit (on demand) Ceiling (accessory on demand) Direct exhausting Short ducting 6/23 brookvent.co.uk... -
Page 8: Detailed Specification
Option to boost from trickle (or from off) through LS connection ✓ Installation type selection available (through wall or ducted) ✓ IPX4 degree of protection ✓ Power supply 220-240V~ 50Hz ✓ Standards: airstream DMEV 100CF SAP Appendix Listed ✓ Guarantee period: 2 years ✓ 7/23 brookvent.co.uk... -
Page 9: Erp Directive - Regulations 1253/2014 - 1254/2014
ErP Directive – Regulations 1253/2014 – 1254/2014 8/23 brookvent.co.uk... - Page 10 9/23 brookvent.co.uk...
- Page 11 10/23 brookvent.co.uk...
-
Page 12: Sap Appendix Q Results
SAP Appendix Q Results Results for rigid duct applications Results for flexible duct applications 11/23 brookvent.co.uk... -
Page 13: Airflow: Pressure/ Performance Curve
Airflow: Pressure/ Performance Curve 12/23 brookvent.co.uk... -
Page 14: Mounting
Mounting In case of surface cable installation 13/23 brookvent.co.uk... - Page 15 12 please look at Electrical Connections / Wiring – section 5.1 Wiring Schematic; page 16 In case of recessed cable installation 14/23 brookvent.co.uk...
- Page 16 12 please look at Electrical Connections / Wiring – section 5.1 Wiring Schematic; page 16 15/23 brookvent.co.uk...
-
Page 17: Electrical Connections/ Wiring
IEE regulations (UK), local or appropriate regulations (applying to other countries). Electrical Details: Voltage: 230 V AC ~ Earth connection is not required. Wiring Schematic Without humidistat / timer With humidistat / timer 16/23 brookvent.co.uk... - Page 18 Constant flow version 17/23 brookvent.co.uk...
-
Page 19: Controls And Settings
In some jumper switch combinations the “constant flow” mode is activated. In these cases, the airflow detection system will detect the installation duct resistance and also react to external wind conditions to ensure the fan maintains a constant extraction rate. 18/23 brookvent.co.uk... - Page 20 29m3/h – 8l/s ✓ ✓ through wall 47m3/h – 13l/s ✓ in room ✓ ✓ in room 21m3/h – 6l/s ✓ ✓ in room 29m3/h – 8l/s ✓ ✓ ✓ in room 47m3/h – 13l/s (default) ✓ =Jumper present 19/23 brookvent.co.uk...
- Page 21 ✓ ✓ constant flow 21m3/h - 6l/s ✓ in room 47m3/h - 13l/s ✓ ✓ in room 29m3/h - 8l/s ✓ ✓ through wall 47m3/h - 13l/s ✓ ✓ ✓ through wall 29m3/h - 8l/s ✓ =Jumper present 20/23 brookvent.co.uk...
-
Page 22: Maintenance
Maintenance Warning: Dangerous Voltage. Before completing any form of maintenance, ensure to isolate the unit from the mains and ensure all supply circuits are disconnected. 21/23 brookvent.co.uk... - Page 23 Notes 22/23 brookvent.co.uk...
-
Page 24: Customer Support
Customer Support At Brookvent we pride ourselves on providing Gold Standard after sales and support to all customers. Please feel free to contact one of our specialist team about any query you may have and we will be more than happy to assist you.
