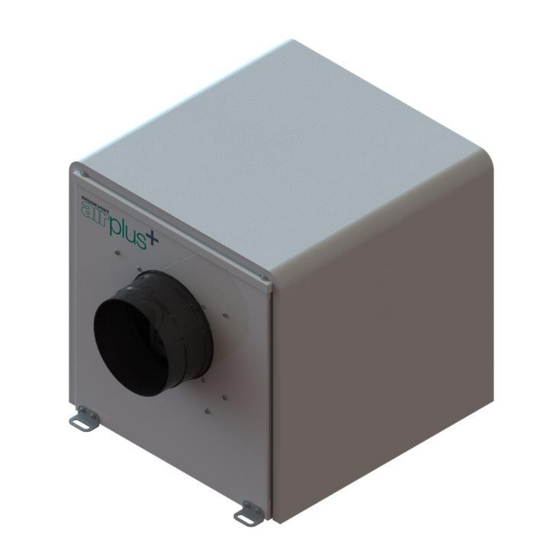

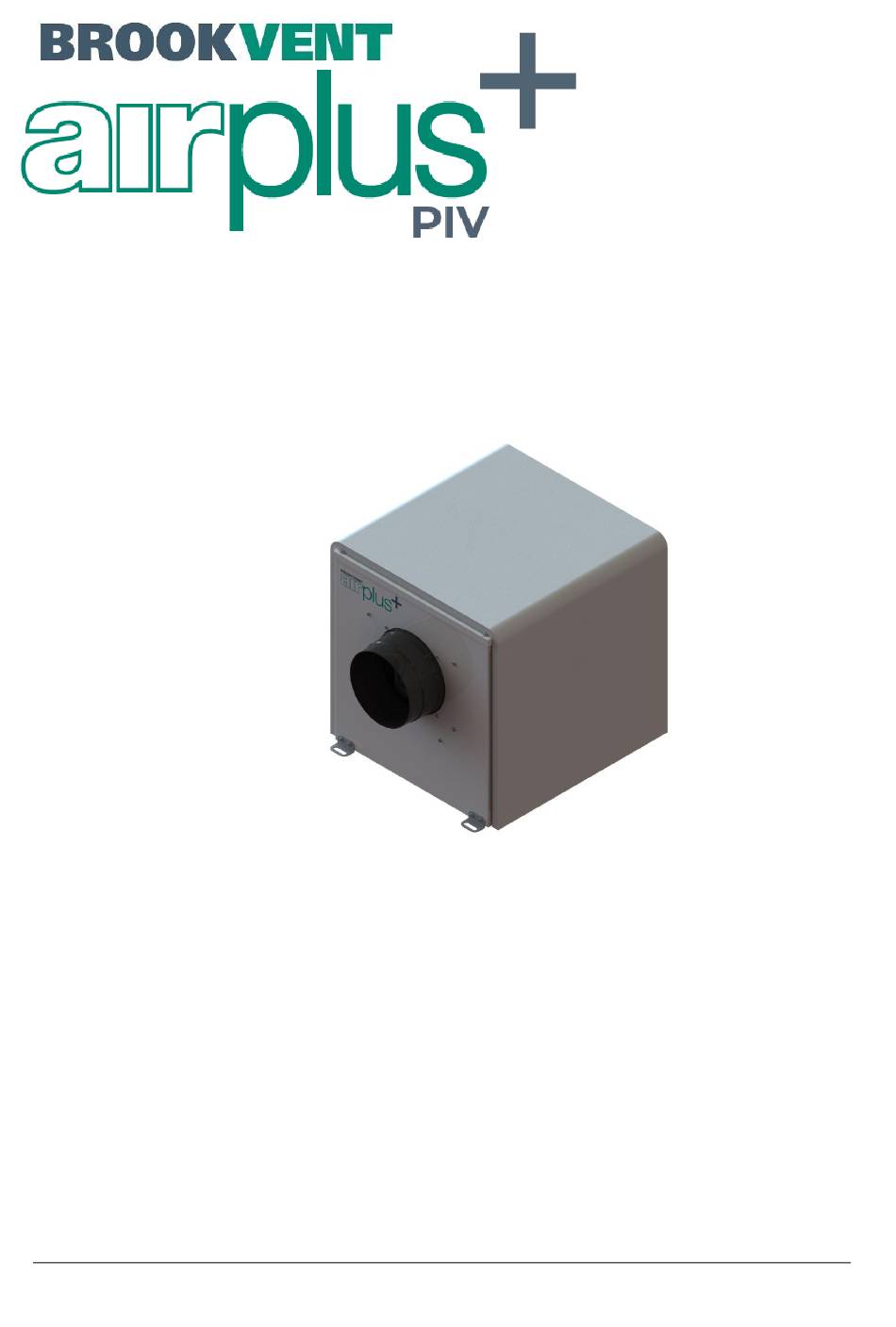

- Page 1 Effective condensation Control With Positive Input Ventilation Installation, maintenance & user manual Applicable for the following AIRPLUS PIV models: PRODUCT CODE DESCRIPTION AF 90-AP-STD AIRPLUS AF 90-AP-EHB AIRPLUS PH 1/20 brookvent@co.uk...
-
Page 2: Table Of Contents
2 speed operation via the AIPLUS PH controller ..............16 7.2.7. Modbus control .......................... 16 8. MAINTENANCE ............................17 9. MAINTENANCE/CLEANING REGISTER ....................18 10. ErP Directive - Regulations 1253/2014 - 1254/2014 ..............19 11. Notes ..............................20 2/20 brookvent@co.uk... -
Page 3: Warnings And Precautions
The device is designed to intake clean air only, i.e. without grease, soot, chemical or corrosive agents, or flammable or explosive mixtures. Do not use the product in the presence of inflammable vapors, such as alcohol, insecticides, gasoline, etc. 3/20 brookvent@co.uk... -
Page 4: Maintenance
Even if the mains supply to the unit has been disconnected there remains a risk of injury due to rotating parts that have not come to a complete standstill. Beware of sharp edges. Use protective gloves. Use original spare parts only for repairs. 4/20 brookvent@co.uk... -
Page 5: Product Information
Another benefit of PIV systems is that they do not require any additional ducting. The AIRPLUS and AIRPLUS PH units are suitable for floor or ceiling installation. 3.2. Dimensions [mm] and Weight [kg] Dimensions: AIRPLUS and AIRPLUS PH share the same external dimensions: Weight: AIRPLUS- 9kg; AIRPLUS PH- 9kg 5/20 brookvent@co.uk... -
Page 6: Space Required
This section describes how to install the unit correctly. The unit must be installed according to these instructions. 5.1. Unpacking Verify that the unit (and accessories) delivered is according to order before starting the installation. Any discrepancies from the ordered equipment must be reported to the supplier. 6/20 brookvent@co.uk... -
Page 7: Where/How To Install
AIRPLUS unit. When installing AIRPLUS and AIRPLUS PH models the flexible duct should be the shortest possible. Alternatively, a thermal insulated duct can be used. 7/20 brookvent@co.uk... -
Page 8: Installation
The unit needs to be secured using screws suitable for the material the units is being mounted on. Secure the flexible ducting to the unit and the diffuser using strapping provided. Ensure that flexible ducting is pulled tight and is not damaged. This might affect the unit’s performance. 8/20 brookvent@co.uk... -
Page 9: Airplus Wiring, Commissioning And Operations
The installation and service of the unit and complete ventilation system must be performer by an authorized installer and in accordance with local rules and regulations. The AIRPLUS unit is delivered wired (see below). The unit must be earthed. 9/20 brookvent@co.uk... -
Page 10: Electric Wiring Diagrams
The unit runs continuously at the speed set by turning the “V1” trimmer in the terminal box and can be boosted to a higher speed which is set using the “V2” trimmer also located in the terminal box. Boost speed is activated by means of a remote two-position switch (not supplied). 10/20 brookvent@co.uk... -
Page 11: Speed Setting. Trimmer And Dip Switches
6.2.3. Speed setting. Trimmer and Dip Switches 11/20 brookvent@co.uk... -
Page 12: Airplus Ph Wiring, Commissioning And Operations
The installation and service of the unit and complete ventilation system must be performer by an authorized installer and in accordance with local rules and regulations. The AIRPLUS PH unit is delivered wired (see below). The unit must be earthed. 12/20 brookvent@co.uk... -
Page 13: Internal Wiring Diagram
7.2. Internal wiring diagram The units must be earthed. The units are wired internally by the manufacturer Graphs below presents the wiring diagram. AIRPLUS PH internal wiring diagram Above: Electrical connections on the motherboard fitted in the terminal box. 13/20 brookvent@co.uk... -
Page 14: Continuous Running Speed
To set the continuous running speed use dip switches 1-2-3. 7.2.2. Maximum speed The maximum speed can be activated by means of a controller (for example the dedicated AIRPLUS PH controller provided with that version of the unit) To set the maximum speed use dip switch 4. 14/20 brookvent@co.uk... -
Page 15: Heat Recovery Mode (Intermediate Speed And Temperature Threshold)
When the air temperature in the loft raises above a trigger temperature threshold, the unit will switch off to prevent the undesirable warm air being introduced unnecessarily to the home. The trigger temperature threshold can be set using the dip switches 9-10. 15/20 brookvent@co.uk... -
Page 16: Heater (Threshold)
S3 switch : it activates the automatic operation of the heating element (AUTO) or deactivate it completely (O). 7.2.7. Modbus control The unit can be controlled via Modbus (Modbus RTU over RS485). For specification, contact our customer service. 16/20 brookvent@co.uk... -
Page 17: Maintenance
Filter needs to be checked annually and cleaned with vacuum cleaner. Their maintenance may differ per situation depending on the environmental conditions. Filters must be replaced according to the “filter change period” indication below. Cleaning the diffuser 17/20 brookvent@co.uk... -
Page 18: Maintenance/Cleaning Register
MAINTENANCE/CLEANING REGISTER 18/20 brookvent@co.uk... -
Page 19: Erp Directive - Regulations 1253/2014 - 1254/2014
ErP Directive - Regulations 1253/2014 - 1254/2014 Mark BROOKVENT Model AIRPLUS AIRPLUS PH SEC class SEC warm climates kWh/m2.a -10,6 -10,5 SEC average climates kWh/m2.a -25,0 -24,8 SEC cold climates kWh/m2.a -50,1 -49,9 Energy label Unit typology Residential - unidirectional... -
Page 20: Notes
Notes Brookvent Brook House, Dunmurry Industrial Estate, Dunmurry, Belfast Northern Ireland, BT17 9HU T: +44 (0) 28 9061 6505 20/20 brookvent@co.uk...
