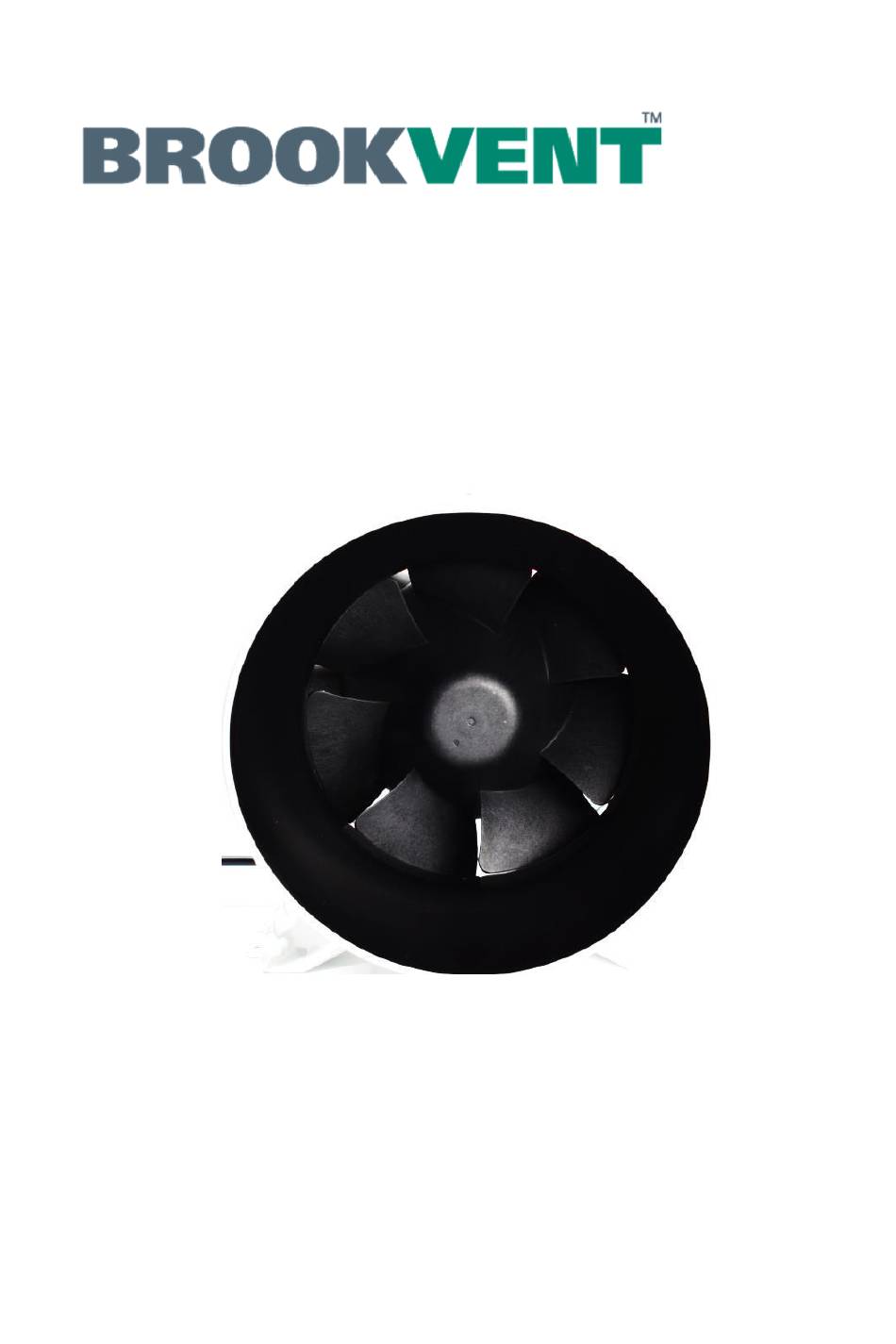

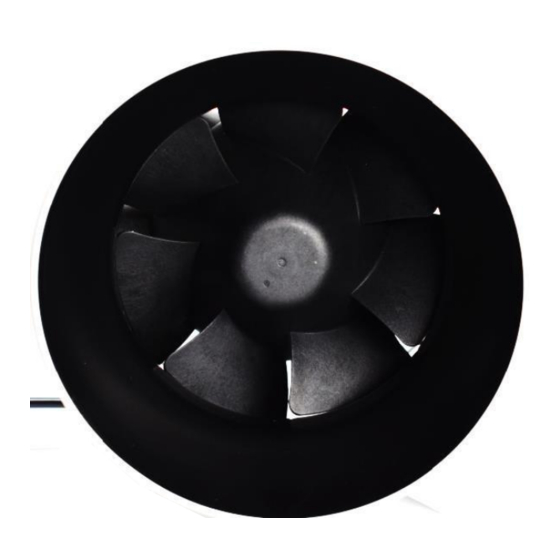

- Page 1 BTP EC Duct fan Installation, maintenance & user manual brookvent.co.uk...
-
Page 2: Table Of Contents
ELECTRICAL CONNECTION ..............7 COMMISSIONING ..................9 MAINTENANCE ..................9 DISPOSAL ....................10 GUARANTEE ................... 10 DENIAL OF LIABILITY FOR CONSEQUENTIAL DAMAGES ....10 OPERATIONAL INSPECTIONS: .............. 11 ACCEPTANCE CERTIFICATE ..............12 TABLE OF INSPECTIONS ................ 13 NOTES ..................... 14 2/15 brookvent.co.uk... -
Page 3: Introduction
INTRODUCTION Thank you for the trust you placed in BROOKVENT by purchasing the BTP EC series fan, created in accordance with technical rules that meet requirements standards. Before installation commissioning, please read these operating instructions carefully as they contain safety... -
Page 4: Remarks
Non-compliance with these guidelines will result in: Change parameters to performance • Loss of warranty on the ventilation system and its • components Costs related to system cleaning, fan servicing and control • 4/15 brookvent.co.uk... -
Page 5: Transport And Packaging
NOTE: BROOKVENT reserves the right to introduce changes in technical data and modifications to the documentation without the need to inform the user. TRANSPORT AND PACKAGING The fan is supplied in a package that protects the unit under normal •... - Page 6 Ensure that no foreign objects (e.g. mounting elements, tools) are • present inside or near the fan, that the rotor is not blocked and that the fan is properly protected after installation (e.g. closed and protected bowl, junction box, tightened fasteners). 6/15 brookvent.co.uk...
-
Page 7: Electrical Connection
The fan is equipped with a power and control cable. • Required safeguards: • 2A fused spur. 1) BTP EC 100 2) BTP EC 125 3) BTP EC 150/160 4A fused spur. 4) BTP EC 200 5). BTP EC 250 For power supply connection we recommend 3x1.5mm... - Page 8 Power supply is connected directly to the mains! Do not connect the power supply cables to the controller! If the voltage at the control signal is not present, the fan will • not work. To control the fan speed we recommend using BR-2/010 potentiometer 8/15 brookvent.co.uk...
-
Page 9: Commissioning
If the inspection does not reveal any irregularities, clean the rotor • blades and housing with a brush or vacuum cleaner every year after commissionin 9/15 brookvent.co.uk... -
Page 10: Disposal
BROOKVENT. At the time of purchase, check that the device is complete and delivered as described. Any disputes that may arise will be dealt with on the basis of the General Purchase Conditions (GPC) and the General Guarantee Conditions (GGC) available at https://brookvent.co.uk/... -
Page 11: Operational Inspections
11. OPERATIONAL INSPECTIONS: Commissioning table Model BTP EC 100 BTP EC 125 BTP EC 150 BTP EC 200 BTP EC 250 Installation date Commissioning date Designation of the vent stack/installation location Signature/stamp 11/15 brookvent.co.uk... -
Page 12: Acceptance Certificate
3 months, 6 months, 12 months (mandatory) and annually thereafter. 12. ACCEPTANCE CERTIFICATE With all responsibility, we declare that this product complies with the provisions of the Ecodesign Directive (ErP) as well as with the CE marking requirements. 12/15 brookvent.co.uk... -
Page 13: Table Of Inspections
Cleaning the blades yes/no yes/no yes/no yes/no yes/no yes/no yes/no yes/no yes/no yes/no with a brush Remarks The fan is yes/no yes/no yes/no yes/no yes/no yes/no yes/no yes/no yes/no yes/no operational Inspection performed by: Date Stamp/signature 13/15 brookvent.co.uk... -
Page 14: Notes
14. NOTES ……………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………… 14/15... - Page 15 Brookvent Brook House, Dunmurry Industrial Estate, Dunmurry, Belfast Northern Ireland, BT17 9HU T: +44 (0) 28 9061 6505 V1 17.11.2021 UK...
