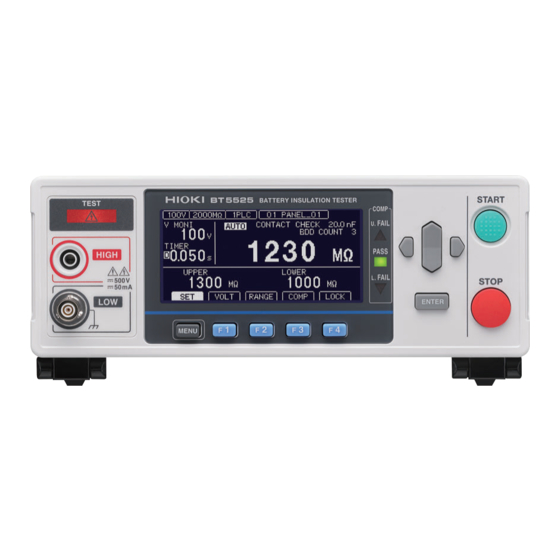

Hioki BT5525 Applications Manual

Hide thumbs Also See for BT5525:

Advertisement

Quick Links

Download this manual
Overview
BT5525 Sample Application (this application) can perform the following operations on the BT5525:
Setting for BT5525
Display of measured values (measurement or update of measured values at specified time
intervals)
Backup and Restoration of the instrument's settings
Sending and receiving communication commands
Displaying and saving monitor data
Displaying and saving BDD data
System requirements
 CPU: 1 GHz or greater
 Memory: 512 MB or more
 OS: Windows10, Windows11
 Microsoft .NET Framework 6.0
 Interface: USB 2.0 (virtual COM port), LAN
 Monitor resolution: 1024 x 768 dots or greater
 Hard disk: 5 MB free space or more (However, if .NET Framework 6.0 is not installed,
approximately 2.5 GB is required separately)
Installing the application
1. Double-click " setup_BT5525 Sample Application.exe".
2. The installer screen will appear.
3. Click
Next
every time when it appears.
4. Installation will begin. When the installation is complete, a shortcut icon
will be created on the desktop.
Uninstalling the application
 Windows10, 11
The application can be uninstalled by opening the Windows Setting, choosing Apps.
Connecting the instrument to your computer
 Connecting the instrument via USB
Works with standard Windows drivers.

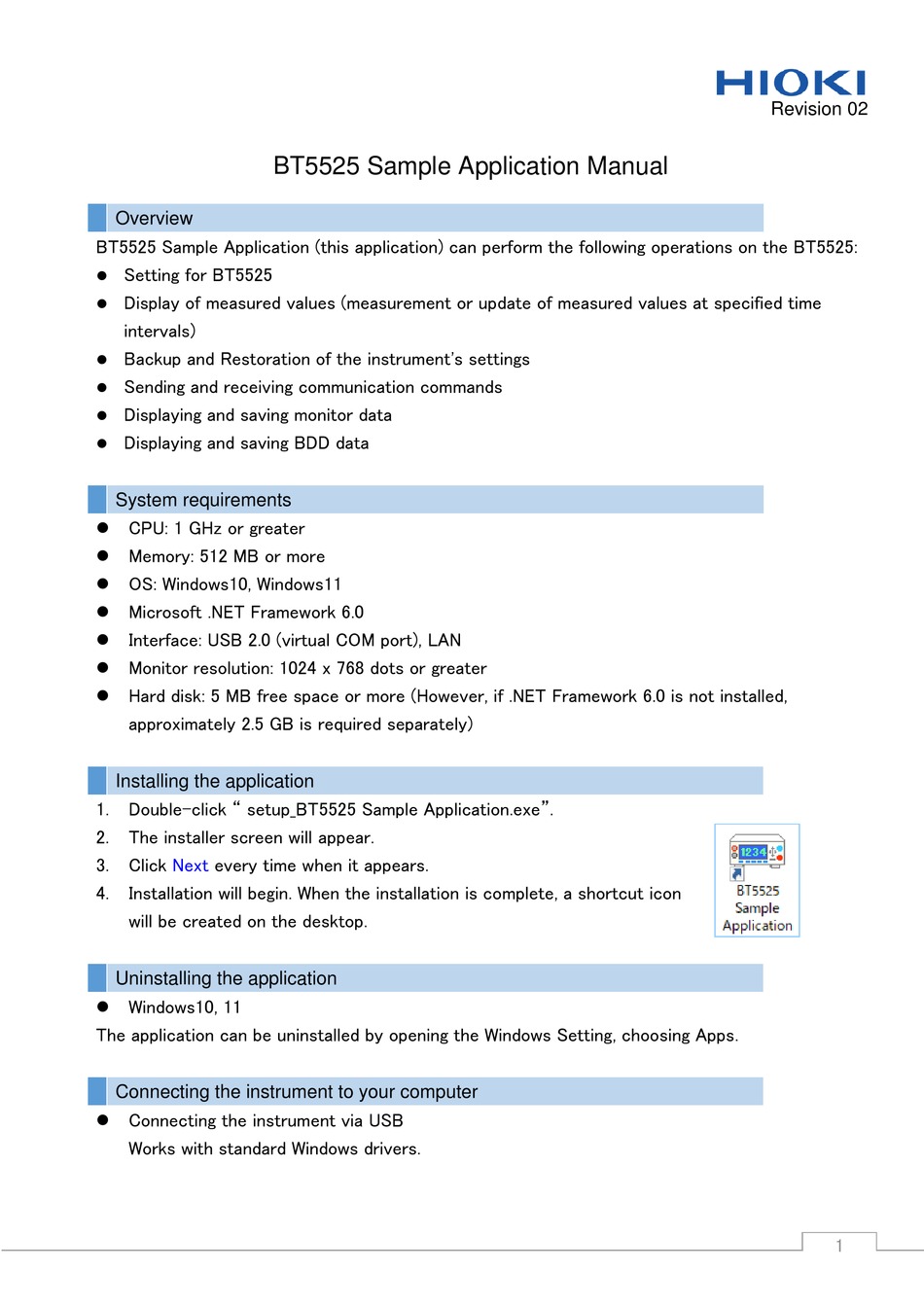

BT5525 Sample Application Manual
Revision 02
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the BT5525 and is the answer not in the manual?

Questions and answers

Related Manuals for Hioki BT5525

Summary of Contents for Hioki BT5525

  • Page 1 Revision 02 BT5525 Sample Application Manual Overview BT5525 Sample Application (this application) can perform the following operations on the BT5525: Setting for BT5525  Display of measured values (measurement or update of measured values at specified time  intervals) Backup and Restoration of the instrument's settings ...
  • Page 2 Revision 02  Connecting the instrument via LAN You’ll need a LAN cross cable. Launching and connecting to the application 1. Double-click the application’s shortcut on the desktop. The measurement screen will be displayed. 2. Select the Function and Interface then click [Connect]. 3.
  • Page 3 Revision 02 Selecting the delimiter character for text (CSV) files  This application has the ability to save data to a text (CSV) file  You can set the separator used for data delimitation from the menu. Please set the separator according to your environment. ・Comma (",") separator ・Semicolon (";") separator...
  • Page 4 Revision 02 Insulation Resistance Test Insulation Resistance Test Operate this instrument from the application to perform an insulation resistance test.  Overview of Main Screen  When this application is launched, it synchronizes with the settings of the instrument.  When you change the settings on the screen, the settings on the instrument will automatically change as well.
  • Page 5 Revision 02  MEAS1、MEAS2  All test settings that can be configured on the instrument can be changed.  COMPARATOR SETTING Reflects the setting in this instrument.  PANEL  Saves the settings to the specified panel number. If panel data already exists, it is overwritten.
  • Page 6 Revision 02  SYS, IF  [RESET] : The settings of the instrument other than the communication settings and panel are initialized.  LAN: To change the LAN settings, press [Reflect]. The instrument's LAN settings will not be changed until [Reflect] is pressed; if a LAN connection has been made, it will be reconnected.
  • Page 7 Revision 02  Various Tools The following windows open from [Tool] on the top toolbar. When the window is closed, it returns to the original screen. The instrument will be synchronized with the instrument at that time.  Command test Send and receive arbitrary commands.
  • Page 8 Revision 02 BDD Analysis BDD Analysis Insulation resistance test is performed, and when the test stops, monitor voltage and current values (reference values) from the start of the test are acquired, displayed on the data grid, and waveforms are displayed on the graph. Waveform data can be saved as CSV.

  • Page 9: Graph Setting

    Revision 02  SETTING  Graph setting  Sets the number of waveforms sampled.  Sets the degree to which sampled waveforms are thinned out. Larger values result in lower resolution, but allow acquisition of waveforms of longer duration.  The recording time with the above settings is shown.
  • Page 10 [V] when Type is CCV or CVV, and [%] when CVI. Note that the % of CVI is a percentage of the BT5525's own reference value and cannot be converted to a current value.  Graph / TEST data Graph ...

  • Page 11: Auto Save Function

    Revision 02  Option The [Tool] on the top toolbar opens the [Option] window.  Auto save function  At the end of the test, the checked items are automatically saved in CSV format. If none of the items are checked, the file will not be automatically saved.
  • Page 12 Also, HIOKI Electric Corporation assumes no responsibility for any bugs or other inconveniences that may occur with the software. Please note that HIOKI is unable to respond to questions about this software. Thank you for your understanding.
