INSTRUCTION MANUAL
8807-51
8808-51

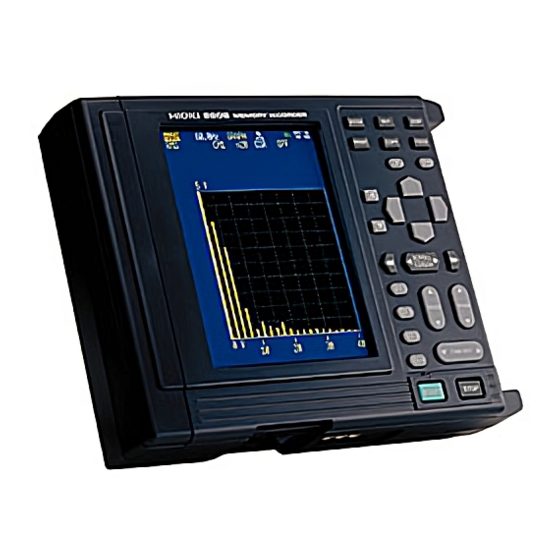

MEMORY HiCORDER
HARMONIC WAVE
ANALYSIS FUNCTION

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8807-51 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hioki 8807-51

Summary of Contents for Hioki 8807-51

  • Page 1 INSTRUCTION MANUAL 8807-51 8808-51 MEMORY HiCORDER HARMONIC WAVE ANALYSIS FUNCTION...

  • Page 3: Table Of Contents

    Contents 1. General Description 2. Setup Procedures 3. Basic Setting Items 3.1 Function Setting 3.2 Measurement Target Setting 4. Analog Input Channel Setting 4.1 Waveform Display Color Setting 4.2 Input Type Setting 4.3 Vertical Axis Range Setting 4.4 Scaling Setting 4.5 Scale Conversion Rate Setting 4.6 Line Connection &...
  • Page 4 8. Printer Operations 8.1 Recording on Printer 9. PC Card 62 9.1 Input of File Name 9.2 Text File Internal Format 9.3 Examples of Stored Files 10. Characteristics of CLAMP ON PROBES (Reference Information) Index INDEX 1...

  • Page 5: General Description

    (1) A range of harmonic wave analysis functions for commercial power supplies The 8807-51 is designed for analysis of single-phase 2-wire lines, while the 8808-51 is intended for analysis of single-phase 2-wire lines, single-phase 2- wire lines of two different systems, single-phase 3-wire lines, and 3-phase 3- wire lines.

  • Page 6: Setup Procedures

    _____________________________________________________________________________________________ (8) Scaling function Easy input setting for measurement using a clamp ammeter (9) Equipped with anti-aliasing filter Built-in low-pass filter prevents return distortion by eliminating all frequencies other than measurement targets. (10) Over-range check function Automatically switches to a lower sensitivity range when an input waveform exceeds the maximum input voltage.

  • Page 7: Basic Setting Items

    _____________________________________________________________________________________________ 3. Basic Setting Items 3.1 Function Setting The 8807-51 and 8808-51 each provide a total of four functions. To use the harmonic wave analysis function, follow the procedures given below. Setting Screen SET >> STATUS(1/4)/ CHANNEL(2/4)/ TRIGGER(3/4)/ ANALYZE(4/4) 1. Move the flashing cursor to the location shown in the diagram.
  • Page 8 8808-51 8808-51 For example, when using a HIOKI clamp on probe, the clamping method should be as shown below. If the clamp on probe is faced in the opposite direction, the phase will shift 180 degrees from the actual value.

  • Page 9: Analog Input Channel Setting

    _____________________________________________________________________________________________ 4. Analog Input Channel Setting 4.1 Waveform Display Color Setting In instantaneous analysis mode, you can select the color of the displayed waveform. Setting Screen SET >> CHANNEL(2/4) 1. Move the flashing cursor to the location next to the channel to be set, as shown in the diagram. 2.

  • Page 10: Input Type Setting

    _____________________________________________________________________________________________ 4.2 Input Type Setting The input type must be set for each analog input channel. Voltage and current in combination with the HIOKI Clamp Sensor can be measured. When the name of clamp is selected, measurements are automatically converted to current values and displayed.

  • Page 11: Vertical Axis Range Setting

    _____________________________________________________________________________________________ 4.3 Vertical Axis Range Setting The vertical axis range must be set for each channel. When VOLTAGE is set as the input type: Indicates rms voltage value per division when vertical axis magnification is set to "x1." When CLAMP is set as the input type: Indicates rms current value on full vertical axis scale.

  • Page 12: Scaling Setting

    2. Make a setting using the buttons. No scaling Scaling provided 3. When VOLTAGE is set as the input type: Select the type of scaling. For PT rate setting When a clamp probe other than HIOKI unit is used ______________________________________________________________________________________________ 4.4 Scaling Setting...

  • Page 13: Scale Conversion Rate Setting

    _____________________________________________________________________________________________ 4.5 Scale Conversion Rate Setting This screen is used to set the scaling conversion rate when using a CT/PT or other clamp probe. Setting of CT/PT rate Setting Screen SET >> CHANNEL(2/4) 1. Move the flashing cursor to the location next to the channel to be set, as shown in the diagram.
  • Page 14 _____________________________________________________________________________________________ Settings for use of other clamp products Setting Screen SET >> CHANNEL(2/4) 1. Move the flashing cursor to the location next to the channel to be set, as shown in the diagram. 2. Press the buttons to open the numerical value setting window.

  • Page 15: Line Connection & Level Check

    _____________________________________________________________________________________________ 4.6 Line Connection & Level Check This function is used to set an appropriate range for the input signal prior to measurement. When a clamp probe is used, this function checks the orientation of the probe. The check items vary by measurement target. UNIQUE Range check, voltage, and current phase check (when power analysis is valid)
  • Page 16 _____________________________________________________________________________________________ 4. Check the results of the line connection & level check. (The check items are automatically selected from the items listed below, according to measurement target.) Range Over Checks whether the range is appropriate for the waveform to be measured. For voltage measurement, the range switches automatically to prevent input overshoot.

  • Page 17: Dmm Function

    _____________________________________________________________________________________________ 4.7 DMM Function The DMM function provides a numeric display of the input voltage of a commercial power supply (50/60 Hz) and DC signal on the screen. The digital display can be switched between instantaneous value and rms value. This function will not display accurate values if the input voltage is not of a commercial power supply (50/60 Hz) or a DC signal.
  • Page 18 _____________________________________________________________________________________________ Switching between instantaneous value display and rms value display Channels with rms value display are indicated with an "RMS" displayed on the DMM screen. You can toggle the display between instantaneous value and rms value in the following ways: Change to all-channel rms value display: button Change to all-channel instantaneous value display:...

  • Page 19: Instantaneous Analysis Mode

    _____________________________________________________________________________________________ 5. Instantaneous Analysis Mode This mode is used to perform various analyses on one cycle of an input waveform. 5.1 Analyses and Display Screens The analyses that can be performed in instantaneous analysis mode and analysis result screens are described below. The instantaneous analysis mode supports six analyses (items), each with its own analysis screen, and seven analyses (parameter values) with numeric indications only.
  • Page 20 _____________________________________________________________________________________________ (3) Harmonic wave content ratio (RMS-RATIO screen) The screen displays the content ratios (%) of harmonic wave components of all degrees to the input signal. Graph screen Numeric screen The fundamental wave content ratio is assigned a value of 100% for the calculations. (nth-degree harmonic wave) ___________________________ Content ratio =...
  • Page 21 _____________________________________________________________________________________________ (5) Harmonic wave active power (POWER screen) The screen displays the active power values (W) of the input signal harmonic wave components, ranging from the fundamental wave to the 40th degree. Graph screen Numeric screen Active power = (Rms voltage value) x (Rms current value) x cos(Power phase angle) (n = 1 to 40)
  • Page 22 _____________________________________________________________________________________________ (7) Harmonic wave power phase angle (P-PHASE screen) By measuring the phase angle of harmonic wave current of each degree relative to the voltage waveform, the screen indicates the direction of drift in the harmonic wave of each degree. Graph screen Numeric screen In the graph, the horizontal axis and vertical axis show active power and reactive...
  • Page 23 _____________________________________________________________________________________________ Total rms value Sum of rms values of all harmonic wave components. Σ (nth-degree harmonic wave) [V] or [A] Total rms value= (n = degree of harmonic wave) Total distortion-F Percentage of all harmonic waves in fundamental wave. "F" refers to "fundamental." Σ...
  • Page 24 *1: Measurement halts if one of the following warning messages is displayed: Warning 633: Set CH1=Volt, CH2=Current (for 8807-51). Warning 634: Set CH1,CH3=Volt, CH2,CH4= Current (for 8808-51). Warning 635: 3283,3284,3285 can't analyze power. *2: When the following warning message is displayed, the screen displays a table with no numeric values.

  • Page 25: Basic Item Setting

    _____________________________________________________________________________________________ 5.2 Basic Item Setting The following describes various setting items and setting methods. 1. Settings on Status Screen (1) Analysis mode setting SET >>STATUS(1/4) 1. Move the flashing cursor to MODE 2. Using the buttons, select INSTANT INSTANT Conducts instantaneous analysis. SERIES Conducts time-series analysis.
  • Page 26 Data is saved in text format (for used in PC). (Data saved in text format cannot be loaded on the 8807-51 or 8808-51.) Entering a file name for auto save When a file name is entered, the auto save function stores the file with that name.
  • Page 27 (*) Measurement is possible only when odd- degree in input signal. number channels are set for voltage and even- number channels set for current. With HIOKI P-RATIO(*) Displays active power content ratio CLAMP ON SENSORS 3283, 3284, or 3285,...
  • Page 28 With HIOKI CLAMP ON SENSORS 3283, 3284, or P-RATIO(*) Displays active power content ratio of 3285, power measurements cannot be the harmonic wave component of any performed due to inadequate phase accuracy.
  • Page 29 1. Move the flashing cursor to the location indicated in the diagram 2. Select the setting using the buttons. Selection options vary depending on the analysis item. 8807-51 CH1/CH2 8808-51 CH1/CH2/CH3/CH4 For POWER, P-RATIO, P-PHASE, the analysis results of the system containing the selected channel are displayed.
  • Page 30 Displays the input instantaneous waveform in a full screen. Displays the input instantaneous waveform in a sub-screen. Upper and lower limit values for four channels (two channels with 8807-51) are displayed on the screen. ______________________________________________________________________________________________ 5.2 Basic Item Setting...

  • Page 31: Cursor Operation

    _____________________________________________________________________________________________ (8) Input setting (for waveform input screen only) DISP >>Waveform display Input can be set for each channel on the waveform input screen. 1. Using the buttons, display Setting the setting window for a selected channel. 2. Move the flashing cursor to the position of the channel channel to set and press the buttons.

  • Page 32: Analysis Example 1: Simultaneous Instantaneous Analysis Of Two 100-Vac Single-Phase 2-Wire Lines

    Clamp-on Probes.") Described below is a method for performing instantaneous analysis of two 100-VAC single-phase 2-wire lines simultaneously using the 8808-51. In the example, the HIOKI 9018-10 CLAMP ON PROBE is used for current measurement. (1) Power supply on Turn on the power switch for the 8808-51.

  • Page 33: Line Connection & Level Check Setting

    _____________________________________________________________________________________________ (3) Preparing for measurement 1. Using the button, proceed to the screen in which settings are to be made. 2. Using the cursor and buttons, make the settings as shown in the diagrams on the left. (4) Line connection & level check This item is used to check the connections.
  • Page 34 _____________________________________________________________________________________________ Line connection & level check start The voltage range automatically switches to prevent input overshoot. When the range changes, the following message appears at the bottom of the screen: "Range changed. (Out of range)." 1) After the line connection & level check, check the window.
  • Page 35 _____________________________________________________________________________________________ Phase angle numeric screen Active power graph screen Power content ratio screen Shows the harmonic wave active Indicates the percentage of the power of any degree with a bar active power of harmonic wave graph. component of any degree in active power (given a value of "100%") of the fundamental wave.
  • Page 36 _____________________________________________________________________________________________ (8) Printout Press the button. PRINT When the numeric screen is displayed, the numeric data is printed. When the graph screen is displayed, a hard copy of the screen is printed. For more information, refer to Section 8.1 "Recording on Printer." Numeric data Example of printout of RMS, RATIO, PHASE screen Numeric data...

  • Page 37: Analysis Example 2: Instantaneous Analysis Of 200-Vac 3-Phase 3-Wire Line

    _____________________________________________________________________________________________ 5.5 Analysis Example 2: Instantaneous Analysis of 200-VAC 3- Phase 3-Wire Line Describes below is a method for performing an instantaneous analysis of a 200-VAC 3-phase 3-wire line using the 8808-51. The 8808-51 uses a 2-wattmeter method for power analysis of 3-phase lines. (1) Input connection Connect the 8808-51, as shown in the diagram below.
  • Page 38 _____________________________________________________________________________________________ (4) Line connection & level check This item is used to check connections. For detailed information, refer to Measurement Example 1(4). (5) Measurement start/end Press the button to perform the measurement. (Green LED lights.) START When one cycle of data is input, the LED goes out and measurement stops. The screen displays a waveform.

  • Page 39: Time-Series Analysis Mode

    _____________________________________________________________________________________________ 6. Time-Series Analysis Mode The time-series analysis mode is used to perform data analysis for a specific time interval for any of the 13 types of analysis available in instantaneous analysis mode, and then to record changes in data over time. The following section describes how to use the time-series analysis mode and provides examples of analysis.
  • Page 40 _____________________________________________________________________________________________ (3) Time-axis range SET >>STATUS(1/4) This item is used to set the time per division on the time axis (one grid on recording paper). 1. Move the flashing cursor to Time (/DIV) 2. Select a setting using the buttons. 5, 10, 30 min/DIV, 1, 3, 6, 12 h/DIV NOTE The data interval is 1/80 of the time-axis range setting.
  • Page 41 Text Data is saved in text format (for use on a PC).(Data saved in text format cannot be loaded by the 8807-51 or 8808-51. Data for all set analysis items (max. 20 items) is saved.) Entering name of file to be auto-saved If a file name is entered, the auto save function stores the file under that name.
  • Page 42 _____________________________________________________________________________________________ Selective save setting When "Text" is set for the data saving format, data can be saved at selected intervals. The selective save function stores data at selected intervals. No other data is included in the data file. 1. Move the flashing cursor to Thin out 2.
  • Page 43 _____________________________________________________________________________________________ (9) Printer setting SET >>STATUS(1/4) Measurements can be printed simultaneously as analysis is being carried out. 1. Move the flashing cursor to Printer 2. Select a setting using the buttons. Does not print measurements in real time. Prints measurements as data is input. 2.
  • Page 44 Displays measurement screen on full screen. Displays measurement screen on sub-screen. Upper and lower limit values for four channels (two channels with 8807-51) are displayed on the screen. ______________________________________________________________________________________________ 6.1 Basic Item Setting...

  • Page 45: Analysis Item Setting

    Reactive power (for Warning 633: Set CH1=Volt, CH2=Current. P-FACTOR Power factor 8807-51). Warning 634: Set CH1,CH3=Volt, CH2,CH4= (for 8808-51). Current. Warning 635: 3283,3284,3285 can't analyze (for both 8807-51 and 8808-51). power. ______________________________________________________________________________________________ 6.2 Analysis Item Setting...
  • Page 46 SET >>Analyze You can select the channel to be analyzed. 1. Move the flashing cursor to 2. Select a setting using the buttons. 8807-51 CH1/CH2 8808-51 CH1/CH2/CH3/CH4 For POWER, P-RATIO, P-PHASE, WATT, VA, var, and P-FACTOR, data for the system containing the selected channel is analyzed.
  • Page 47 _____________________________________________________________________________________________ (5) Waveform display color setting SET >>Analyze Select the color of the displayed waveforms. 1. Move the flashing cursor to in the display item section. 2. Select a setting using the buttons. Hides waveform. List Red/Green Prints waveform at standard print density.
  • Page 48 _____________________________________________________________________________________________ (7) Zero position This item is used to set the zero position of an analysis result. 1. Move the flashing cursor to in the display Posn item section. 2. Select a setting using the buttons. ______________________________________________________________________________________________ 6.2 Analysis Item Setting...

  • Page 49: Cursor Operations

    _____________________________________________________________________________________________ 6.3 Cursor Operations On the waveform screen, use cursors A and B to read measurement time and analysis values. 1. Move the flashing cursor to the location indicated in the diagram and select , using the buttons. (You can also make this selection by simultaneously pressing both right and left cursor buttons.) To move cursors A and B...

  • Page 50: Waveform Scrolling

    _____________________________________________________________________________________________ 6.4 Waveform Scrolling The analysis result in the waveform screen can be scrolled horizontally. Setting Screen DISP >>Waveform display 1. Move the flashing cursor to the location indicated in the diagram and select using SCRL buttons. (You can also make this selection by simultaneously pressing both right and left cursor buttons.) To move cursors A and B...

  • Page 51: Input Setting In Waveform Display Screen

    _____________________________________________________________________________________________ 6.5 Input Setting in Waveform Display Screen In the waveform display screen, you can select the contents of result display Nos. W1 through W4. 1. Using the buttons, open the setting window for a selected result display (W1: CH1, W2: CH2, W3: CH3, W4: CH4) (Example) To display the setting screen for result display No.

  • Page 52: Over-Range Check Function

    _____________________________________________________________________________________________ 6.6 Over-Range Check Function When the input wave exceeds the set maximum input range during measurement, this function lowers the range by one level to prevent input overshoot in the next measurement. When the auto range check function is activated during extended measurement (time-series analysis), a symbol [ ] (OVER) is indicated at the time at which the range switched.

  • Page 53: Analysis Example: Time-Series Analysis Of 100-Vac Single-Phase 3-Wire Line

    Described below is a method for performing time-series analysis of a 100- VAC single-phase 3-wire line using the 8808-51. In this example, a HIOKI 9018-10 CLAMP ON PROBE is used for current measurement. This equipment is designed to measure input voltage. To measure current, use a NOTE clamp ammeter with a voltage output function.
  • Page 54 _____________________________________________________________________________________________ (3) Preparation for measurement 1. Using the button, proceed to the screen in which settings are to be made. 2. Using the cursor and buttons, make the settings as shown in the diagrams on the left. (4) Line connection & level check 1.
  • Page 55 _____________________________________________________________________________________________ Line connection & level check start The voltage range is automatically shifted to prevent input overshoots. The following message is displayed at the bottom of the screen. " ." Range changed.(Out of range) 1) After the line connection & level check, check the window.

  • Page 56: Triggers For Harmonic Wave Analysis Function

    _____________________________________________________________________________________________ 7. Triggers for Harmonic Wave Analysis Function The following four triggers can be used with the harmonic wave analysis function: Manual trigger, external trigger, timer trigger, harmonic wave trigger The following diagram illustrates the relationship among the four triggers. A maximum of four conditions can be set for the harmonic wave trigger.
  • Page 57 _____________________________________________________________________________________________ (3) Manual trigger This item is used to activate a trigger when the button is pressed. The manual trigger on standby is given priority over all other trigger settings. 1. Move the flashing cursor to Manual Trig 2. Select the setting using the buttons.
  • Page 58 _____________________________________________________________________________________________ (6) Timer trigger This trigger is tripped for a fixed time interval from the set starting time to the set ending time. This function is used to make recordings at regular intervals. 1. Move the flashing cursor to on the Extended Trig trigger screen (3/4) and press the buttons to...

  • Page 59: Harmonic Wave Trigger

    _____________________________________________________________________________________________ 7.2 Harmonic Wave Trigger A trigger can be tripped during harmonic wave analysis according to specified conditions. Up to four conditions can be set as trigger sources. (1) Harmonic wave trigger type setting A maximum of four harmonic wave triggers can be set in No.
  • Page 60 _____________________________________________________________________________________________ (2) Trigger channel setting This is used to set the channel to be applied with a harmonic wave trigger. 1. Move the flashing cursor to 2. Select the setting using the buttons. CH1, CH2, CH3, (CH3 and CH4 are available only in the 8808-51.) (3) Harmonic wave degree setting This item is used to set the degree of harmonic...
  • Page 61 _____________________________________________________________________________________________ (5) Trigger condition setting This is used to set the conditions required to trip the trigger set in steps (1) through (4). In case of parameters other than power phase angle 1. Move the flashing cursor to Hi-Lo 2. Select the setting using the buttons.
  • Page 62 _____________________________________________________________________________________________ Theory behind harmonic wave trigger In harmonic wave analysis, the harmonic wave trigger is not tripped in real time because the trigger is based on a comparison of the results of FFT calculations performed on the input waveform with the set conditions. Note that a trigger is not tripped by unexpected phenomena that occur as data is being processed, as shown below.
  • Page 63 _____________________________________________________________________________________________ 8. Printer Operations Recording types and analysis modes Analysis mode Instantaneous Time-series Recording method analysis mode analysis mode Manual print Partial print Auto print Screen copy :Possible/ x:Not possible The printer cant be used when the main unit is running on alkaline batteries. NOTE To use the printer, use the 9418-10 AC ADAPTER or 9447 BATTERY PACK.
  • Page 64 _____________________________________________________________________________________________ (2) Auto print (instantaneous analysis mode) This function automatically prints the input waveform as soon as it is displayed on the screen. 1. Move the flashing cursor to Auto Print 2. Select the setting using the buttons. Disables the auto print function. Enables the auto print function.
  • Page 65 _____________________________________________________________________________________________ (5) Screen copy You can print any images displayed on the LCD, including waveforms, status information, trigger, and system screens. 1. Display the screen to be printed. 2. Press the button. COPY (6) Report printing This function is used to print the waveform, upper and lower limit values, and analog channel settings displayed on the waveform display screen.
  • Page 66 _____________________________________________________________________________________________ 9. PC Card 9.1 Input of File Name Described below is a method for entering a file name for auto save. 1. Move the flashing cursor to File Name 2. Press the buttons to open the file name input window. 3.
  • Page 67 _____________________________________________________________________________________________ (3) Using the virtual function buttons Move the flashing cursor to the virtual function buttons and press the buttons to confirm the selection. INS/OVER Switches between Insert and Overwrite. Deletes the character indicated by the flashing cursor. Backspace << >> Shifts the input position to the right or left.
  • Page 68 _____________________________________________________________________________________________ 9.3 Examples of Stored Files (1) Data stored in the waveform screen in instantaneous analysis "HARMONICS(INSTANT)" "Trig.Time","Fund.Freq." "01-05-31 15:27:49","60.0Hz" "PHASE(CH1&2)","VALUE(CH1)","VALUE(CH2)","PHASE(CH3&4)","VALUE(CH3)","VAL UE(CH4)" "ﾟ", "V ", "A ","ﾟ", "V ", "A " +0.0000E+00,+1.2500E-01,+4.0625E+00,+0.0000E+00,+2.5000E-01,+3.1250E-02 +5.3973E-02,+2.5000E-01,+4.0625E+00,+5.8499E-02,+2.5000E-01,+3.1250E-02 +1.0795E-01,+3.7500E-01,+4.0625E+00,+1.1700E-01,+2.5000E-01,+3.1250E-02 +1.6192E-01,+5.0000E-01,+4.0469E+00,+1.7550E-01,+2.5000E-01,+3.1250E-02 +2.1589E-01,+6.2500E-01,+4.0469E+00,+2.3399E-01,+2.5000E-01,+3.1250E-02 +2.6987E-01,+7.5000E-01,+4.0469E+00,+2.9249E-01,+2.5000E-01,+3.1250E-02 +3.2384E-01,+8.7500E-01,+4.0469E+00,+3.5099E-01,+2.5000E-01,+3.1250E-02 +3.7781E-01,+1.0000E+00,+4.0469E+00,+4.0949E-01,+2.5000E-01,+3.1250E-02 +4.3178E-01,+1.1250E+00,+4.0469E+00,+4.6799E-01,+2.5000E-01,+3.1250E-02 +4.8576E-01,+1.2500E+00,+4.0625E+00,+5.2649E-01,+2.5000E-01,+3.1250E-02 +5.3973E-01,+1.5000E+00,+4.0469E+00,+5.8499E-01,+2.5000E-01,+3.1250E-02 +5.9370E-01,+1.6250E+00,+4.0625E+00,+6.4348E-01,+2.5000E-01,+3.1250E-02...
  • Page 69 _____________________________________________________________________________________________ (3) Data stored in the active power/power content ratio/power phase angle screen in instantaneous analysis "HARMONICS(INSTANT)" "Trig.Time","Fund.Freq." "01-05-31 15:27:49","60.0Hz" "T-WATT1","T-VA1","T-var1","P-PHASE1","T-WATT2","T-VA2","T-var2","P-PHASE2" "W","VA","var","","W","VA","var","" -6.7137E+01,+3.0587E+02,-2.9707E+02,-2.1949E-01,+1.5441E-05,+1.7540E-04,- 7.2594E-06,-8.8034E-02 "N","WATT1","RATIO1","PHASE1","WATT2","RATIO2","PHASE2" "","W","%","ﾟ","W","%","ﾟ" 1,-6.7363E+01,+1.0000E+02,+1.0278E+02,+1.5840E-05,+1.0000E+02,+4.7795E+00 2,+6.4257E-03,-9.5390E-03,-2.4951E+01,-1.2366E-07,-7.8064E-01,+9.7468E+01 3,+3.5383E-01,-5.2526E-01,-1.6358E+01,-7.4887E-07,-4.7276E+00,-1.1832E+02 4,+1.8669E-03,-2.7714E-03,+1.9575E+01,-2.5310E-07,-1.5978E+00,+1.0789E+02 5,-1.2927E-01,+1.9189E-01,+1.3167E+02,+4.1097E-07,+2.5945E+00,+8.3283E+01 6,+9.2634E-04,-1.3752E-03,-4.9776E+01,+4.8823E-08,+3.0822E-01,+7.9100E+01 7,+4.5029E-04,-6.6846E-04,-8.9522E+01,-8.3018E-07,-5.2409E+00,-1.4679E+02 8,-4.7267E-04,+7.0168E-04,+1.2438E+02,-9.0838E-07,-5.7346E+00,+1.4041E+02 9,-8.4780E-03,+1.2586E-02,+1.1160E+02,-1.5138E-07,-9.5564E-01,+1.0926E+02 10,-3.6396E-04,+5.4030E-04,+1.3734E+02,+2.3539E-06,+1.4860E+01,-1.5203E+00 11,+1.2904E-03,-1.9156E-03,-8.5958E+01,+2.8652E-07,+1.8088E+00,-4.8524E+01 12,+4.6008E-04,-6.8299E-04,+4.5474E+01,+9.2022E-09,+5.8094E-02,-8.9004E+01 13,+3.5138E-03,-5.2162E-03,+3.9547E+00,+3.2622E-07,+2.0594E+00,+6.9989E+01 14,+1.0265E-05,-1.5238E-05,+8.7235E+01,+2.6686E-07,+1.6847E+00,+4.7870E+01 15,-7.7404E-03,+1.1491E-02,-1.5896E+02,-1.3739E-07,-8.6733E-01,-1.1589E+02 16,+1.8826E-04,-2.7947E-04,+6.7600E+01,-1.8437E-06,-1.1639E+01,+1.7624E+02 17,+5.4396E-03,-8.0751E-03,+1.3493E+00,-8.5045E-07,-5.3689E+00,-1.5486E+02...
  • Page 70 10. Characteristics of CLAMP ON PROBES (Reference Information) When a CLAMP ON PROBE is used to make measurements, the accuracy of both the CLAMP ON PROBE and the 8807-51/8808-51 will affect measurement accuracy. In measurements of the direction of a harmonic wave, current value, or other values, the phase characteristics of the CLAMP ON PROBE significantly affect the measured values.
  • Page 71 _____________________________________________________________________________________________ 9132-10 CLAMP ON PROBE Measurement range: 20, 50, 100, 500, 1000 AAC Accuracy: 3% rdg., 0.5 mV Frequency characteristics: within 1% at 40 to 1000 Hz (deviation from 55 Based on 50 Hz 100,200,500 A 50,1000 A 20-A range 40 50 100 1000 Frequency (Hz)
  • Page 72 _____________________________________________________________________________________________ ______________________________________________________________________________________________...
  • Page 73 INDEX 1 _____________________________________________________________________________________________ Index - A - - H - Active power 19,41 Harmonic wave degree Analog input channel Harmonic wave trigger Analysis channel 23,25,42,47 Harmonic wave trigger type 55-58 Analysis example (instantaneous) 28-34 - I - Analysis example (time-series) 49-51 Analysis mode 21,35...
  • Page 74 INDEX 2 _____________________________________________________________________________________________ Printing interval - Z - Printing type - R - Zero position 44,47 Reactive power 19,41 Real-time printing 43,60 Recording length Report printing Rms value 15,23,24,41,55 - S - Scaling 8-10 Screen copy 14,61 Scroll Single-phase 2-wire Single-phase 3-wire - T - 3-phase 3-wire...
  • Page 75 All reasonable care has been taken in the production of this manual, but if you find any points which are unclear or in error, please contact your supplier or the International Sales and Marketing Department at HIOKI headquarters. In the interests of product development, the contents of this manual are subject to revision without prior notice.
  • Page 76 HEAD OFFICE 81 Koizumi, Ueda, Nagano 386-1192, Japan TEL +81-268-28-0562 / FAX +81-268-28-0568 E-mail: os-com@hioki.co.jp HIOKI USA CORPORATION 6 Corporate Drive, Cranbury, NJ 08512, USA TEL +1-609-409-9109 / FAX +1-609-409-9108 8807C981-01 04-06H Printed on recycled paper...
