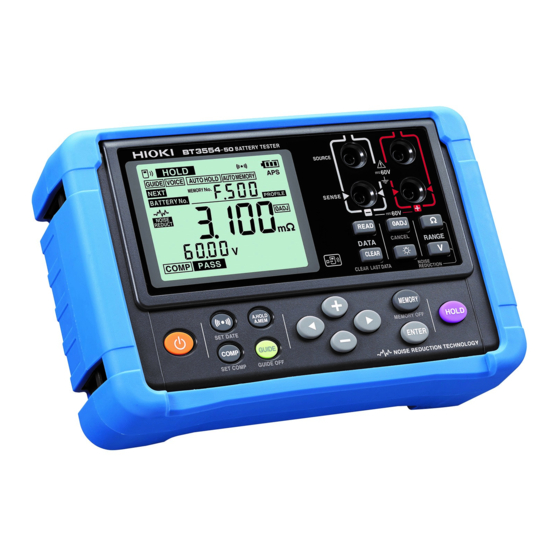

Hioki BT3554-50 Instruction Manual

Battery tester
Hide thumbs Also See for BT3554-50:
Table of Contents

Advertisement

Quick Links

Download this manual
1.800.561.8187
BT3554-50
BT3554-51
BT3554-52
BATTERY TESTER
Read carefully before use.
Keep for future reference.
Sept. 2021 Revised edition 3
BT3554F961-03 21-09H
HIOKI BT3554F961-03
www.
.com
Instruction Manual
EN
information@itm.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BT3554-50 and is the answer not in the manual?

Questions and answers

Related Manuals for Hioki BT3554-50

Summary of Contents for Hioki BT3554-50

  • Page 1 BT3554-50 BT3554-51 Instruction Manual BT3554-52 BATTERY TESTER Read carefully before use. Keep for future reference. Sept. 2021 Revised edition 3 BT3554F961-03 21-09H HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...

  • Page 2: Battery Tester Quick Guide

    1.8 V (Decreased by 10%) (Example values) Deterioration evaluation value Internal of resistance resistance FAIL Initial value × 2 WARNING Initial value × 1.5 PASS Available Initial value charge amount Pass Pass Pass Pass Fail HIOKI BT3554F961-03 BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 3 When the measured values become stable, the display will automatically freeze them. See “3.6 Automatic Hold Function” (p. 61). Immediately after the display freezes measured values, the instrument will automatically save them. See “5.3 Automatic Memory Function” (p. 89). HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 4 Connect the test lead to a battery under measurement. Saved in internal memory. (Red) (Black) − HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 5 (Fresh battery’s value × 0.9) Hold down for at least 1 s. Downloading measured values to your computer You can connect the instrument and your computer using the accompanying USB cable to download measured values. (p. 105) HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 6 The use of profile information lets you save measured data associating with detail information. Concept of a data set to be saved Profile Profile number information Location information HIOKI 1F UPS ROOM Device information UPS 1-1 Battery number Measured data Memory number A.001...
  • Page 7 You can get your jobs done neatly, which will no longer require you to start all over again. Voice prompt No. 1, pass. Next battery, No. 2. Display HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...

  • Page 8: Table Of Contents

    (Option) ............41 Connecting the Test Lead ......42 Bundling up the Pin Type Lead and the 9466 Remote Control Switch ..........43 2.5 Turning On/Off the Instrument .....44 Setting the Date and Time ......45 Attaching the Neck Strap ......46 HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 9 Based on Threshold Values) Overview ............69 Enabling the Comparator Function .....70 Setting Threshold Values for the Comparator ............71 Comparison table for the comparator ....... 78 Setting the Comparator Buzzer ....80 Canceling the Comparator Function ...81 HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 10 Communicating With a Mobile Device ..108 Enabling/disabling the wireless communications function ..............111 Z3210-to-Excel ® Direct Data Entry Function (Excel ® Direct Input Function, HID Function) ............112 Enabling/disabling the HID function ......113 HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 11 Before returning the instrument for repair ....143 10.3 Error Messages ...........146 10.4 FAQ ...............148 10.5 Replacing the Fuse ........149 10.6 Replacing the Tip Pin of the Test Lead ..150 10.7 Disposing the Instrument (Removing the Lithium Battery) ....153 HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 12 When an object under measurement is wide or thick ................ 159 11.5 Synchronous Detection ......162 11.6 Calibration ...........164 Calibrating the resistance measurement unit ..164 Calibrating the voltage measurement unit ....165 Index Warranty Certificate HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...

  • Page 13: Introduction

    Introduction Introduction Thank you very much for choosing the Hioki BT3554-50, BT3554- 51, BT3554-52 Battery Tester. To ensure your ability to get the most out of this instrument over the long term, please read this manual carefully and keep it available for future reference.
  • Page 14 • The Bluetooth ® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Hioki E.E. Corporation is under license. Other trademarks and trade names are those of their respective owners.

  • Page 15: Verifying Package Contents

    In particular, check the accessories, panel switches, and connectors. If the instrument seems to have been damaged or does not work as specified, contact your authorized Hioki distributor or reseller. Confirm that these contents are provided. Pin Type Lead...

  • Page 16: Options

    The options listed below are available for the instrument. To order an option, contact your authorized Hioki distributor or reseller. Options are subject to change. Please check Hioki’s website for the latest information. Please check Hioki’s website for the latest information.
  • Page 17 9772 Pin Type Lead. Model 9460 Clip Type Lead with Temperature Sensor Using the 9460 lets you measure resistance, voltage, and temperature simultaneously. Clip (Black) Mini plug (Connect to TEMP.SENSOR) Temperature sensor HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 18 Approx. φ29 mm Model 9451 Temperature Probe (Cable length: 1.5 m) Connect the 9451 to the TEMP. SENSOR terminal on the top face of the instrument. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 19 Z5038 to the carrying case. Please use commercially available hook- and-loop fasteners. Model Z5050 Fuse Set Always use the specified fuse. Model Z3210 Wireless Adapter Model C1014 Carrying Case Model Z5041 Protector HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...

  • Page 20: Safety Information

    Protective gear WARNING Performing measurement using this instrument involves live-line work. To prevent an electric shock, use appropriate protective insulation and adhere to applicable laws and regulations. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 21 Indicates an action that must not be performed. Indicates an action that must be performed. HOLD Indicates a control key. [HOLD] Indicates elements on the display. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 22 Electronic Equipment (WEEE) Directive in EU member nations. Dispose of the product in accordance with local regulations. Indicates that the product complies with standards imposed by EU directives. Character expression The instrument’s display expresses the alphanumeric characters as HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 23 Resolution Indicates the minimum display unit (in other words, the smallest digit that can have a value of 1) for a digital measuring instrument. Limit values for digit errors are expressed using digits. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...

  • Page 24: Operating Precautions

    • Exposed to high concentrations of dust particles Do not place the instrument on an unstable or uneven surface. Doing so could cause the instrument to fall or turn over, causing bodily injury or damage to the instrument. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www.
  • Page 25 • Check that the insulation of the test lead is neither ripped nor torn and that no metal parts are exposed. Replace the test lead with a one specified by Hioki. • Check the instrument for any damage that may have occurred during storage or shipping, and perform functional checks before use.
  • Page 26 To avoid damage to the instrument, do not subject it to vibration or mechanical shock during transportation and handling. Exercise particular care to avoid subjecting the instrument to mechanical shock, for example by dropping. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 27 (terminal-to- terminal) or maximum rated line-to-ground voltage of 60 V. Maximum input voltage Maximum rated (terminal-to-terminal) voltage to earth 60 V DC 60 V DC • Do not measure AC voltage. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 28 Otherwise the low-voltage battery may be subject to an excess voltage, causing damage to the battery. To avoid damage to the instrument, do not apply voltage to the EXT.HOLD and TEMP.SENSOR terminal. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 29 (1) Unstable measured values (2) Wire-break detection display ([−−−−]) Attaching ferrite cores around the test lead or placing the instrument some distance away from the floor may have a lightening the effect. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 30 SENSE − terminal or between the SOURCE + terminal and SENSE + terminal, the instrument cannot perform correct measurement. SOURCE − SOURCE + SENSE − SENSE + SOURCE − SOURCE + SENSE − SENSE + HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 31 These may damage the probe or break a wire. IMPORTANT Use only the Hioki-specified test lead. Using another test lead may result in incorrect measurements due to loose connections or other reasons. Besides, Hioki does not guarantee the accuracy and proper operation.
  • Page 32 If you have lost the screw or find that the screw is damaged, please contact your Hioki distributor for a replacement. • Use a fuse only specified by Hioki. Failure to observe this could damage the instrument, resulting in bodily injury.
  • Page 33 • Keep the disc inside a protective case and do not expose to direct sunlight, high temperature, or high humidity. • Hioki is not liable for any issues your computer system experiences in the course of using this disc. HIOKI BT3554F961-03 1.800.561.8187...

  • Page 34: Overview

    1 m (100 Ah) Ω and approximately 0.13 m (1000 Ah). Ω Clad-type stationary lead-acid battery High-rate-discharge paste-type stationary lead-acid battery Sealed stationary lead- acid battery (Ah) Lead-acid battery capacity HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 35 Changes in the internal resistance of open (liquid) stationary lead-acid batteries, including CS and HS, and alkaline lead-acid batteries, may be smaller than sealed lead-acid batteries. Thus, it is sometimes difficult to determine whether such batteries have been deteriorated. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 36 Besides, the instrument may not be able to diagnose and evaluate the deterioration of such batteries because changes in the internal resistance of lithium-ion batteries due to deterioration may be smaller than lead-acid batteries. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www.
  • Page 37 After measurement, connecting the instrument to your computer with the accompanying USB cable enables measured data transfer to the computer. Also, you can browse through and record measured data on your smart phone or tablet using the wireless communications function. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 38 Overview Using the wireless communications function requires the Z3210 Wireless Adapter. Measured data Measured data Threshold values setting Profile information Profile information Threshold values setting HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...

  • Page 39: Features

    This can lead to increased operational efficiency. Measurement without the need for UPS system shutdown The instrument uses high-precision AC low-resistance measurement technology and noise reduction technology. Time HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 40 Connecting the Z3210 Wireless Adapter (option) enables you to browse through and record measured values with your smart phone and tablet. You can utilize the measurement recording prompt in sync with your mobile device with GENNECT Cross installed. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...

  • Page 41: Names And Functions Of Parts

    Names and Functions of Parts 1.4 Names and Functions of Parts Front (1) Display (p. 34) SOURCE − SOURCE + SENSE + SENSE − Operation keys HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 42 Switches settings. − − Moves digit focus. Enables memory Disables memory function. − function. Saves measured values. Displays serial Confirms your entry. − number. Enables/disables Freezes measured value. − automatic power Disable hold function. saving. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 43 Names and Functions of Parts Front (2) Display (p. 34) SOURCE − SOURCE + SENSE + SENSE − Operation keys HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 44 How to toggle the temperature measurement units While holding down the , and keys, turn on the instrument. Holding down the key for 3 s to toggle between Celsius and Fahrenheit. Press the key to confirm your choice. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 45 Chosen memory Input overflows. number contains profile information. Comparator buzzer Profile number enabled. Communicating Zero adjustment through USB. enabled Instrument’s battery Noise-frequency level reduction enabled. Measurement recording prompt Function being set. enabled. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 46 Memory number to be saved Memory number to be loaded Comparator number When all segments on the display are shown, segments other than those listed above also appear, which are not used. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 47 Connect the 9466 Remote Control Switch (option) here. USB terminal Connect the USB cable here. TEMP.SENSOR Connect the mini plug of the 9460 Clip Type Lead terminal with Temperature Sensor (option) here. Connect the 9451/9451S Temperature Probe here. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 48 *: The serial number consists of nine digits. The first two (from the left) indicate the year of manufacture, and the next two indicate the month of manufacture. Required for production control. Do not peel off the label. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www.

  • Page 49: Outer Dimension Drawing

    Outer Dimension Drawing 1.5 Outer Dimension Drawing 199 ±3 mm HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...

  • Page 50: Preparing For Measurement

    LR6 Alkaline batteries. Install the battery cover. The batteries can continuously provide power to the instrument with the Z3210 not installed for about 8.3 hours (with the Z3210 installed for communications, about 8.2 hours). HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...

  • Page 51: Attaching The Z5041 Protector

    Turn off the instrument and remove the test lead. Insert the instrument into the Z5041 Protector. Observe the proper orientation. Push the instrument into the Protector in the direction of the arrow. (Completed) HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...

  • Page 52: Connecting The Z3210 Wireless Adapter (Option)

    Insert the Z3210, observing the correct orientation, as far as it will go. Attach the Protector. • Store the removed protective cap. • When removing the Z3210, install the protective cap. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...

  • Page 53: Connecting The Test Lead

    Align the  marks of the same color. SOURCE SENSE (Black) (Red) When using the 9460 Clip Type Lead with Temperature Sensor (option), connect the mini plug to the TEMP.SENSOR terminal. See “3.9 Measuring Temperature” (p. 68). HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...

  • Page 54: Bundling Up The Pin Type Lead And The 9466 Remote Control Switch

    Bundle up the cables at the center of the lead between the probe and probe-side junction with the spiral tube. (4) Junctions (5) Spiral tubes (large) Bundle up the cables between the junctions if you wish. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...

  • Page 55: Turning On/Off The Instrument

    Hold down for at least 1 s. When the segment blinks, which indicates that the instrument’s batteries are running low, replace them as soon as possible. See “9.5 Default Settings and Resettable Settings” (p. 139). HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...

  • Page 56: Setting The Date And Time

    Date and time will not be set if you switch over the display from the clock setup mode without pressing the ENTER key. You can also set the date and time using GENNECT ONE or GENNECT Cross. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...

  • Page 57: Attaching The Neck Strap

    Adjust the length of the neck outside. strap. You can put the instrument in the carrying case with the neck strap attached. Check that the neck strap is not removed even if you pull it. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...

  • Page 58: Measurement

    • If terminals are covered with an insulating layer, the measurement current cannot flow sufficiently, resulting in measurement failure. In such a case, clean the terminals to remove the insulation layer before measurement. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...

  • Page 59: Inspection Before Measurement

    Check the instrument for any damage that may have occurred during storage or shipping, and perform functional checks before use. If you find any damage to the instrument, please contact your authorized Hioki distributor or reseller. Inspection item Checking method...

  • Page 60: Setting The Measurement Ranges

    Since the instrument has a single temperature range measurement range, setting the temperature range is not required. Ω Press the key or key to display the present settings. Press the key repeatedly to cycle through the ranges. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 61 3.000 m 30.00 m Ω Ω 3.000 300.0 m Voltage ranges 6.000 V 60.00 V After a certain period of inactivity, the instrument will confirm your entry and the display will return to measurement mode. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...

  • Page 62: Noise-Frequency Reduction Function

    • It may take longer to perform measurement with the noise- frequency reduction function enabled. This time, the instrument will blink the segment. • It may not be possible to avoid all noise depending on the noise frequency. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...

  • Page 63: Adjusting The Zero Point (Zero Adjustment)

    See “9.3 Accuracy Specifications” (p. 125). • When using a test lead, including Hioki product, that is not an accessory or option of the instrument or whose length has been extended IMPORTANT Use only the Hioki-specified test lead.

  • Page 64: How To Short-Circuit Various Test Lead

    Press the test lead against the zero-adjustment board in a vertical direction. Model 9465-10 or Model L2020 Pin Type Lead Model 9772 Pin Type Lead Insert the pins with the marked (engraved) side of the probe facing you. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 65 • Consider the zero-adjustment board to be a consumable. It is recommended to replace it with a new one after the use of around 700 times. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 66 Model 9460 Clip Type Lead with Temperature Sensor SOURCE (+) SOURCE (−) (Red) (Black) SENSE (+) SENSE (−) Model 9467 Large Clip Type Lead (Red) (Black) SOURCE (+) SOURCE (−) SENSE (+) SENSE (−) HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...

  • Page 67: Performing Zero Adjustment

    Blinks for about 10 s. See “How to short-circuit various test lead” (p. 53). Failure to short-circuit the test lead while the display is blinking will result in an error. For Pin Type Lead HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 68 • Keep the test lead short-circuited until the zero adjustment is completed. • The zero adjustment will start even if the key is pressed after the test lead has been short-circuited. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...

  • Page 69: Troubleshooting On Zero Adjustment

    Canceling the zero adjustment Press the 0ADJ key for at least 1 s with the zero adjustment function enabled to cancel the zero-adjustment. Zero adjustment enabled Zero adjustment disabled Hold down for at least 1 s. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...

  • Page 70: Using The Hold Function

    Using the automatic hold function can automatically freeze measured values after they have stabilized. See “3.6 Automatic Hold Function” (p. 61). Hold function disabled Hold function enabled Disabling the hold function Press the HOLD key again to disable the hold function. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...

  • Page 71: Freezing Measured Values Using The 9466 Remote Control Switch

    9466 Remote Control Switch. The instrument will freeze measured values. Disabling the hold function Press the PRESS button on the 9466 Remote Control Switch or the HOLD key on the instrument. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...

  • Page 72: Automatic Hold Function

    [AUTO HOLD] segment. Automatic hold Automatic memory Automatic hold and automatic memory Disabled HOLD PRESS To disable the hold function, press the key or the button on the 9466 Remote Control Switch. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 73 Using the automatic memory function in combination with the automatic hold function can automatically freeze and save measurement values. Canceling the automatic hold function A.HOLD/A.MEM Press the key several times to hide the [AUTO HOLD] segment. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...

  • Page 74: Determining Battery-Deterioration Evaluation Values

    Ω Ω Ω 0.5 m 0.75 m 1.0 m Resistance: Voltage: 2.0 V 1.8 V The above values will vary depending on the manufacturer and battery model. See “1.1 Evaluating Battery Deterioration” (p. 23). HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...

  • Page 75: Measuring Batteries (Inspection)

    (Red) (Black) − See “11.1 Effects of Extending the Test Lead and Induced Voltage” (p. 155), “11.2 Effects of Eddy Currents” (p. 156), and “11.4 Effects of Current Density” (p. 159). HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 76 Use the measured values to evaluate whether the battery has deteriorated. Example: Voltage PASS Initial value (2.0 V) FAIL Present value WARNING (1.8 V) Resistance Initial value Present value (0.5 m Ω (1.0 m Ω As shown above, this battery needs replacing. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 77 To set threshold threshold values to evaluate values to evaluate whether batteries have  whether a battery has deteriorated. See “4 Comparator Function deteriorated (Evaluation Based on Threshold Values)” (p. 69). HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...

  • Page 78: Measurement Error

    Warning display [OVER] If an overvoltage is input, the instrument will show the segment and the blinking maximum display value on the display, backlight the display in red, and produce beeps. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...

  • Page 79: Measuring Temperature

    The instrument will detect the temperature sensor and automatically display the temperature. You can toggle between the two temperature measurement units: Celsius and Fahrenheit. See “How to toggle the temperature measurement units” (p. 33). HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...

  • Page 80: Comparator Function (Evaluation Based On Threshold Values)

    The instrument with the default settings will produce beeps when the comparator yields the WARNING or FAIL result. See “4.4 Setting the Comparator Buzzer” (p. 80). Voltage PASS Initial value FAIL Warning threshold FAIL WARNING Resistance Initial Warning Rejection value threshold value HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...

  • Page 81: Enabling The Comparator Function

    1 and 200. Confirm your entry. The comparator function will be enabled. When the comparator function is enabled, the measurement range will switch over to that specified in the comparator setting with the chosen number. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...

  • Page 82: Setting Threshold Values For The Comparator

    (2 times the initial value) Voltage warning threshold: 1.8 V *: The initial values mean the resistance value a fresh battery or non-defective battery has and the initial voltage value such a battery can generate. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 83 COMP key again to return to normal measurement mode. Choose a comparator number. You can choose a number from between 1 and 200. Confirm your entry. The display will return to range setup mode. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 84 Setting the range Choose a resistance range. (The decimal point position will move.) Choose a voltage range. (The decimal point position will move.) Confirm your entry. The resistance warning threshold and the [WARNING] segment will blink. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 85 The resistance rejection value and the [FAIL] segment will blink. Set the resistance rejection value. Confirm your entry. The voltage warning threshold and the [WARNING] will blink. Set the voltage warning threshold. Confirm your entry. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 86 (the red and black only) probes with the negative and positive terminals, respectively), the result will be given. You can set the evaluation method using version 1.8 or later of GENNECT Cross. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 87 The settings are now saved. If you set the resistance rejection value that is less than the resistance warning threshold, the warning threshold will change to the same value as the resistance rejection value. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 88 Resistance Resistance value warning rejection threshold value When a FAIL judgment is given Voltage PASS Initial value FAIL Voltage warning threshold Measured FAIL WARNING value Resistance Initial Resistance Resistance value warning rejection threshold value HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...

  • Page 89: Comparison Table For The Comparator

    WARNING WARNING FAIL The boundary conditions are as follows: Resistance Resistance Resistance Resistance Resistance ≤ warning < ≤ < rejection value PASS WARNING FAIL threshold Voltage Voltage Voltage < warning ≤ WARNING PASS threshold HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 90 When the resistance warning threshold and resistance are set to the same value, the boundary conditions are as shown below: Resistance Resistance Resistance Resistance ≤ < warning threshold rejection value PASS FAIL HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...

  • Page 91: Setting The Comparator Buzzer

    Press the key repeatedly to cycle through the settings. Disabled Sounds for PASS Sounds for FAIL After a certain period of inactivity, the instrument will confirm your entry and the display will return to measurement mode. The key tone cannot be set. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...

  • Page 92: Canceling The Comparator Function

    • Even when the instrument is turned off, the comparator settings are saved; the comparator will be enabled when the instrument is turned on again. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...

  • Page 93: Memory Function

    ... . (Display example) ..... HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...

  • Page 94: Profile Information

    Concept for registering profile information in the memory Profile information Profile number* Measured data to Location information* HIOKI 1F UPS ROOM be saved Device information* UPS 1-1 Memory number Start A.001 ...
  • Page 95 UPSs equipped with batteries under measurement and their locations, easier. Concept of a data set to be saved Profile Profile number information Location information HIOKI 1F UPS ROOM Device information UPS 1-1 Battery number Measured data Memory number A.001...
  • Page 96 To transfer profile information registered in the instrument to your computer or start phone You can load the information on GENNECT ONE or GENNECT Cross. See GENNECT ONE (contained in the accompanying CD) or User Manual on GENNECT Cross. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...

  • Page 97: Saving Data In The Memory

    Confirm your entry. Measured values has already been saved. [USED] (The data will be overwritten) Profile information has already been [PROFILE] registered. Freeze the measured values. See “3.5 Using the Hold Function” (p. 59). HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 98 • While the measurement recording prompt is operating, the instrument will return the memory number corresponding to the first battery number to display the contents. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...

  • Page 99: Automatic Memory Function

    [USED] segment will appear. Concurrent use of the automatic memory and automatic hold functions lets the instrument automatically freeze the displayed data and save it. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 100 Automatic Memory Function Disabling the Automatic memory Function Press the A.HOLD/A.MEM key several times to hide the [AUTO MEMORY] segment. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...

  • Page 101: Disabling The Memory Function

    1 s. The instrument will display the [oFF] segments and return the display to normal mode. Memory function Memory function Normal mode enabled disabled Hold down for at least 1 s. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...

  • Page 102: Reading Out Saved Data

    Choose a memory number you wish to read out. The instrument will display the measurement values with the memory number you chose. To return the display to measurement mode, press READ key. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 103 [PROFILE] segment indicates that the profile information has been registered there. • Displayed data measured using the 9460 Clip Type Lead with Temperature Sensor (option) and the 9451/9451S Temperature Probe (option) will include temperature. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...

  • Page 104: Deleting Measured Data

    Press the key once. After 3 s of inactivity, the display will return to memory readout mode. Confirm your entry. The data set with the memory number you chose will be deleted. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...

  • Page 105: Deleting All Data Contained In A Unit

    Choose a unit to delete. Press the key twice. After 3 s of inactivity, the display will return to memory readout mode. Confirm your entry. All data (500 data sets) stored in the unit will be deleted. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...

  • Page 106: Deleting Entire Data

    Press the key three times. After 3 s of inactivity, the display will return to memory readout mode. Confirm your entry. Entire data (12 units, 6000 data sets) will be deleted. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...

  • Page 107: Measurement Recording Prompt Function

    IMPORTANT Check that the instrument’s battery level remains sufficiently. If the instrument is shut off while using the measurement recording prompt, you cannot restart the prompt beginning from the number where the prompt stopped. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...

  • Page 108: Preliminary Preparation

    Install version 1.8 or later of GENNECT Cross on your mobile device. Use GENNECT CROSS to register profile numbers, battery numbers, and memory numbers corresponding to the battery numbers. Transfer the profile information to the instrument. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 109 Connect the instrument and your computer using the USB cable. Install GENNECT ONE. Use GENNECT ONE to register profile numbers, battery numbers, and memory numbers corresponding to the battery numbers. Transfer the profile information to the instrument. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...

  • Page 110: Visual Prompt From The Instrument

    Switch over the display to the profile number selection mode. Choose a profile number to be used in the measurement recording prompt. Confirm your entry. The automatic hold function and automatic memory function will automatically be enabled. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 111 Confirm your entry. The instrument will switch over the display to measurement- prompt start mode, starting the measurement recording prompt. The battery number you are to measure next and record and the memory number will blink. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 112 After the recording, the battery number you are to measure and record next will blink. After you finish the measurement of the battery to which the last number has been assigned, the measurement recording prompt will stop. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...

  • Page 113: Visual Prompt And Voice Prompt

    Run GENNECT Cross on your mobile device and register the instrument to pair with. Select the battery function on GENNECT Cross. Use GENNECT Cross to start the measurement recording prompt. [VOICE] The blinking segment will appear on the display. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 114 To quit the measurement recording prompt Hold down the GUIDE key for at least 1 s. Alternatively, use GENNECT Cross to quit. However, you cannot restart the prompt beginning from the number where you quit. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...

  • Page 115: Communications Function

    Measured data files (such as .hok and .csv) Setting threshold values Registering and sending profile information Measured data (Before measurement) (After Measured data measurement) (After measurement, in real time) Model Z3210 USB cable (accessory) HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...

  • Page 116: Communicating With A Computer

    USB cable. • Do not disconnect the USB cable during USB communications. The dedicated computer application software will display a warning message when communications fail due to cable disconnection. Connect the USB cable again. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...

  • Page 117: Communicating With A Mobile Device

    Enable the wireless communications function. When the instrument is turned Hold down for at least 1 s. on for the first time after the installation of the Z3210, the wireless communications function will be enabled. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 118 • The Z3210 uses the 2.4 GHz band wireless technology. When there is a device that uses the same frequency band such as a wireless LAN (IEEE 802.11.b/g/n) near your mobile device, the communication may not be established. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www.
  • Page 119 To keep the instrument away from the floor or the ground, it is recommended to place the instrument on a desktop or a workbench or hang the instrument from your neck using the neck strap. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www.

  • Page 120: Enabling/Disabling The Wireless Communications Function

    Wireless communications Hold down for at function disabled function enabled least 1 s. Even when the wireless communications function is enabled, connecting the instrument and a computer using the USB cable disables the function. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...

  • Page 121: Z3210-To-Excel ® Direct Data Entry Function (Excel ® Direct Input Function, Hid Function)

    The instrument cannot communicate with GENNECT Cross. HID OFF Choose this option to use GENNECT Cross. The setting whether the HID function has been enabled or disabled will not be saved in the instrument but in the Z3210. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...

  • Page 122: Enabling/Disabling The Hid Function

    Z3210. Update it to the latest version. Use version 1.8 or later of GENNECT Cross to update. Choose between [oFF] and [on]. Confirm your entry. The display will return to measurement mode. (When enabled) HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 123 2. Disable the Z3210’s HID function. (p. 113) 3. Use the Instrument Setting of GENNECT Cross to reconnect the instrument. For detail information, please visit the Z3210’s website. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...

  • Page 124: Other Features

    Disabled: Not turning off the backlight automatically Turn off the instrument. Switch over the display to automatic backlighting- shutoff setup mode. (When enabled) Choose between [oFF] [on]. Confirm your entry. The display will return to measurement mode. (When disabled) HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...

  • Page 125: Automatic Power Saving Function (Aps)

    [APS] segment will start blinking one minute before shutoff. The following conditions will disable this function. • While communicating with a computer or a mobile device • While the measurement recording prompt is operating HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 126 • For continuous use of the instrument, disable the APS function. (Default setting: enabled) • If the display unintentionally switches over to automatic power saving setup mode, cycle the instrument. The instrument will be turned on without changing the settings. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...

  • Page 127: Instrument's Battery Level Indicator

    • The battery level indicator does not function accurately when nickel-metal hydride batteries are used. • The battery level indicator serves as an approximate guideline for the continuous operating time. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...

  • Page 128: System Reset

    • Comparator threshold values (200 sets) Turn off the instrument. Switch over the display to system reset mode. Select [yES]. To cancel the system reset operation, select [no]. Confirm your entry. The instrument will be restarted. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...

  • Page 129: Default Settings (Factory-Configured Settings)

    • If the display unintentionally switches over to system reset mode, cycle the instrument. The instrument settings are restored without resetting the system. • For more information on how to delete saved measured data, see “5.6 Deleting Measured Data” (p. 94). HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...

  • Page 130: Specifications

    LR6 Alkaline batteries with the display not backlit at an ambient temperature of 23°C. However, the values may vary depending on the operation condition. Backup battery About 10 years lifetime (value used for reference purposes at 23°C) HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 131 Z5041 Protector) Product 3 years warranty period Fuse 250 V / F 630 mAH (216.630, Littelfuse, Inc.) Equipped with one fuse Accessories p. 3 Options p. 4 Display LCD (FSTN type, black-and-white) HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...

  • Page 132: Basic Specifications

    1.6 mA to 160 mA (Fixed according to the resistance measurement range setting) Temperature measurement: Ω Platinum temperature sensor (500 at 25°C) A/D conversion method: Delta-sigma modulation Display update rate: 3 times/s (Resistance, voltage, and temperature measured as a set) HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 133 (Not accept AC voltage input) • Input resistance: Ω 20 k or more • Temperature-measurement input terminal: Earphone-jack type (φ3.5 mm) • Switch input terminal: Earphone-jack type (φ2.5 mm) Measurement 100 ms time Response time Approx. 1.6 s HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...

  • Page 134: Accuracy Specifications

    When the 9465-10 is used: ±5 digits When L2020 is used: ±6 digits When the 9772 is used: ±1 digit When the 9460 is used: ±16 digits When the 9467 is used: ±5 digits HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 135 • When a test lead other than those made by Hioki is used, the accuracy and proper operation cannot be guaranteed. • Zero adjustment involving the 9465-10, L2020, or 9772 has to be performed using the accompanying zero-adjustment board or the Z5038 0 Adj Board.

  • Page 136: Function Specifications

    (For resistance and voltage readouts). Backlights the display in red, produces beeps (When the input voltage exceeds the maximum value). Default setting Enabled (Cannot be disabled) HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 137 (With the correction value enabled). Default setting Disabled Correction range Up to 300 counts for each range of the resistance and voltage values How to correct See “3.4 Adjusting the Zero Point (Zero Adjustment)” (p. 52). HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 138 Default setting Disabled How to set See “4.2 Enabling the Comparator Function” (p. 70) and “4.3 Setting Threshold Values for the Comparator” (p. 71). Number of 200 tables settings to be saved HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 139 The values are not refreshed sequentially. Display When the function is enabled: [AUTO HOLD] segment appears. When the display is freezing: [HOLD] segment appears. Default setting Disabled How to set See “3.6 Automatic Hold Function” (p. 61). HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 140 Default setting Disabled Number of data 6000 sets Memory 500 data sets per unit (12 units) structure Unit name A, B, C, D, E, F, G, H, J, L, N, and P Memory number Unit name with the number of 1 to 500 suffixed HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 141 Numbers assigned to objects under measurement, which are used by the measurement recording voice prompt Saving location Saved in the internal non-volatile ROM. How to save data See “5.2 Saving Data in the Memory” (p. 87). HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 142 Cross / GENNECT ONE, which are the supported applications (into the internal non-volatile ROM). (Profile numbers, battery numbers, and memory numbers corresponding to the battery numbers are necessary) Default setting Disabled How to start See “6 Measurement Recording Prompt Function” (p. 97). HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 143 Less than 7.6 V The indicator has an error of ±0.2 V. How to disable None (15) Date and time Operation 24-hour clock; leap years are adjusted automatically. Accuracy Approx. 4 minutes per month HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 144 Reverts all the settings, excluding the comparator threshold values and saved data, to the factory default. See “9.5 Default Settings and Resettable Settings” (p. 139). How to reset See “8.4 System Reset” (p. 119). HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 145 Z3210) Communications Approx. 10 m (line of sight) distance Supported GENNECT Cross for iOS applications GENNECT Cross for Android How to See “7.2 Communicating With a Mobile Device” communicate (p. 108). HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 146 See “1.4 Names and Functions of Parts” (p. 30). (24) Computer application software GENNECT ONE • Reading out and deleting data saved in the memory communications • Editing and transferring the comparator table • Editing and transferring profile information Computer • Report generation function HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 147 • Reading out and deleting data saved in the memory communications • Editing and transferring the comparator table • Editing and transferring profile information (Model Z3210) • Measurement recording prompt • Updating the BT3554-50 Smart phone / • Report generation function Tablet (26) Converting the temperature measurement unit Operation...

  • Page 148: Default Settings And Resettable Settings

     Wire break detection Enabled   Backlight Automatic −  backlighting shutoff enabled − − Memory function Disabled Measured data saved in None − − the memory Profile information saved None − − in the memory HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 149 − − Temperature Degree Celsius − − measurement unit *1: Starting the measurement recording prompt will automatically enable the automatic hold and automatic memory. *2: W hen the instrument is turned on for the first time after the installation of the Z3210, wireless communications will be automatically enabled. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...

  • Page 150: Maintenance And Service

    Wipe the display gently with a soft, dry cloth. IMPORTANT Never use solvents such as benzene, alcohol, acetone, ether, ketone, thinners or gasoline. Doing so could deform and discolor the instrument. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 151 The performance of some parts used in the instrument may degrade during the course of extended use. To ensure your ability to use the instrument into the indefinite future, Hioki recommends regular replacement of these parts. Please contact your authorized Hioki distributor or reseller when you need to do so.

  • Page 152: Troubleshooting

    If damage is suspected, read the "Troubleshooting" section to remedy the problem. If this does not help you, contacting your authorized Hioki distributor or reseller. Before returning the instrument for repair If the instrument is not operating correctly, check the following:...
  • Page 153 • Both the not been performed adjustment correctly. [OVER] correctly. (p. 52) segment and An appropriate range Use the range key to the maximum has not chosen. choose the appropriate display values range. (p. 49) blink. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 154 Contact your clock does not replaced. authorized Hioki keep good time. distributor or reseller. The instrument The Z3210 Wireless Connect the Z3210 cannot Adapter is not...

  • Page 155: Error Messages

    Adjustment data error (No- Error no AdJ adjustment error) The instrument needs to A/D converter be repaired. Contact your communications Error Adc authorized Hioki distributor or error reseller. Error 001 Internal variable Error 002 From Error 011 error Error 018 Replace the Z3210 with another one.
  • Page 156 • Both the [OVER] segment and the maximum display value will blink when the input value exceeds the measurable scope of the set range. Set the range correctly. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...

  • Page 157: Faq

    AC signals for measurement and the instrument can DC current does not flow through the measure the internal instrument. resistance and voltage? What are the See “1.1 Evaluating Battery appropriate threshold Deterioration” (p. 23). values? HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...

  • Page 158: Replacing The Fuse

    10.5 Replacing the Fuse If the fuse has blown, replace it as described below. WARNING • Use a fuse only specified by Hioki. Failure to observe this could damage the instrument, resulting in bodily injury. Specified fuse: Model Z5050 Fuse Set (216.630, Littelfuse Inc., fast-acting, rating: 250 V / F 630 mA,...

  • Page 159: Replacing The Tip Pin Of The Test Lead

    Model 9465-90 Tip Pin While pinching the pin base so that the cable dose not twist, rotate the grip to loosen. Pinch the pin base tightly. Beware of risk of injury from sharp end. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 160 Loose connections could cause a wire break or poor contact. Check for proper operation. Measure a non-defective object to check if the measured resistance is correct before use. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 161 Check if it has been firmly fixed. Loose connections could cause a wire break or poor contact. Check for proper operation. Measure a non-defective object to check if the measured resistance is correct before use. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...

  • Page 162: Disposing The Instrument (Removing The Lithium Battery)

    When disposing of this instrument, remove the lithium battery and dispose of them in accordance with local regulations. CALIFORNIA, USA ONLY Perchlorate Material − special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate Turn off the instrument and remove the test lead. Remove the Z5041 Protector. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 163 Phillips screwdriver. Pull off the cable connected to the battery holder. Remove the upper PCB. Using tweezers or a similar tool, remove the lithium battery mounted on the lower PCB. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...

  • Page 164: Appendix

    11.1 Effects of Extending the Test Lead and Induced Voltage Custom-ordering enables the extension of a test lead. Contact your authorized Hioki distributor or reseller. Do not attempt to extend a test lead by yourself. How to reduce induced voltages The instrument, which uses AC to measure minute resistances, is susceptible to induced voltages.

  • Page 165: Effects Of Eddy Currents

    The effects of eddy currents is a phenomenon unique to ohmmeters that measure resistance using an AC source. To protect the test lead from such effects, keep metallic parts, including metallic plates, away from the test lead (branched section). HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www.

  • Page 166: Ac Four-Terminal Method Measurement

    R and R is canceled out. The instrument uses synchronous detection to separate the internal impedance of the object under measurement into effective resistance and reactance and displays the effective resistance alone. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 167 In such cases, the instrument will fail to perform measurement and show the [−−−−] segments as the resistance readout. For more information on measurement errors, see “Measurement error” (p. 67). Reactance Impedance Effective resistance HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...

  • Page 168: Effects Of Current Density

    Thus, when voltage detecting terminals are placed near the current injecting points, just the slightest change in contact positions can lead to major variation in measured values. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 169 To avoid these effects, detect voltage across the two points located the inside of the two current injecting points using a four-terminal test lead such as the Hioki 9453 Four Terminal Lead. The current distribution is generally considered to become stable at a distance equivalent to the width or thickness or more inwardly away from the current injecting points.
  • Page 170 Effects of Current Density IMPORTANT It is important to keep track of variation over time in order to determine if a battery has deteriorated. Hence, use the same test lead for every measurement. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...

  • Page 171: Synchronous Detection

    The system consists of the multiply circuit, which multiplies two signals, and the low-pass filter (LPF), which allows only DC components of the multiply circuit output to pass. Non-inversion amplifier Inversion amplifier Low-pass filter −1 Reference signal Multiplier circuit HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 172 B cos θ − AB cos(2 ω t + θ ) The first term indicates the voltage drop due to the effective resistance. The second term is attenuated by the LPF. The instrument exhibits the first term. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...

  • Page 173: Calibration

    (the real part of impedance; the component displayed on the instrument) equivalent to pure resistance (DC resistance). • Connect the instrument and a standard resistor as shown below: SOURCE SENSE Standard BT3554-50 resistor − SENSE − SOURCE HIOKI BT3554F961-03 1.800.561.8187...

  • Page 174: Calibrating The Voltage Measurement Unit

    Calibration Calibrating the voltage measurement unit • Use a generator that can output a DC voltage of 60 V. • Connect the instrument and generator as shown below: SOURCE SENSE BT3554-50 DC voltage generator − SENSE − − SOURCE • Do not apply AC current from the instrument to the generator.
  • Page 175 The wire-break detection function will be disabled and the instrument will be restarted. Restart the instrument after calibration. The wire-break detection function will be enabled again. Do not disable the wire-break detection function in normal use for measurement. HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 176 Continuous operating time............121 CS....................23 csv ....................105 Current density ................159 Date and time ................45 Default settings list ..............120 Deleting ................94, 95, 96 Deterioration evaluation values ............. 63 Display ................... 34 HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 177 Human interface device profile ............ 112 Induced voltage ................155 Initial value................63, 71 Input terminals ................36 Installation ..................12 Internal resistance ................. 23 Japanese Industrial Standards ............23 Lithium-ion battery ................. 25 HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 178 Model Z5050 Fuse Set ............7, 20, 149 MSE ....................23 Neck strap ..................46 Noise-frequency reduction function ..........51 Operation keys ................ 30, 32 Options .................... 4 Pin tip..................54, 150 PoL ....................75 Pre-measurement inspection............48 Profile information................84 HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 179 Test lead ..................42 Threshold values ................71 USB communications ..............107 Voltage ranges................. 50, 73 Voltage warning threshold ............71, 74 Warning display ................67 Wire-break detection ..............127 Wire-break detection function ............166 HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 180 Index Zero adjustment................52 Zero-adjustment board ..............53 HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
  • Page 181 Warranty Certificate HIOKI BT3554F961-03 1.800.561.8187 information@itm.com www. .com...
