- Page 1 T22/T23 Asset Tag User Guide T22 and T23 Asset Tag User Guide 0980-204-000 Rev A November, 2015...
- Page 2 T22/T23 Asset Tag User Guide Disclaimer The information and know-how included in this document are the exclusive property of AeroScout Inc. and are intended for the use of the addressee or the user alone. The addressees shall not forward to another their right of using the information, know-how or document forwarded herewith, in whole or in part in all matters relating or stemming from or involved therein, whether for consideration or without consideration, and shall not permit any third party to utilize the information, know-how or the...
-
Page 3: Table Of Contents
T22/T23 Asset Tag User Guide Table of Contents Overview ....................4 T22/T23 Tag Features ................5 Beaconing and Bi-directional Communication........5 Long Battery Life .................. 5 Egress Point Detection ................. 5 Rugged Performance ................6 Visual Indication .................. 6 Tag Management ................. 6 Mounting the Tag .................. -
Page 4: Overview

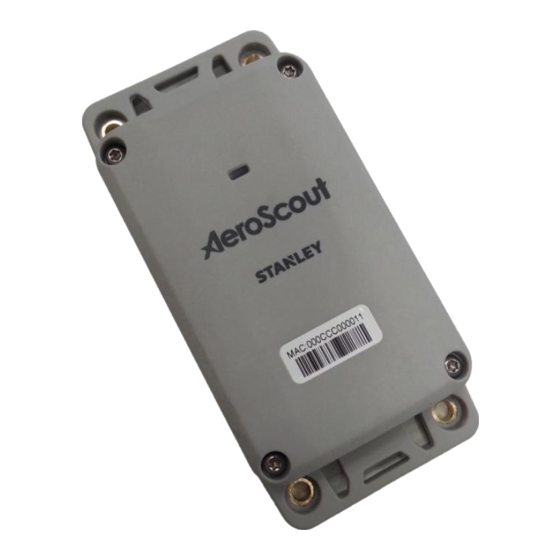

T22/T23 Asset Tag User Guide Overview The T22/T23 Bi-directional Asset Tag is a component of AeroScout Industrial's suite of enterprise visibility solutions for location-based applications. The T22/T23 Tag adds further flexibility and scalability to track assets across a wide variety of applications. Once deployed, the tag uses its bi-directional functionality to receive firmware and configuration updates from MobileView. -
Page 5: T22/T23 Tag Features
T22/T23 Asset Tag User Guide T22/T23 Tag Features Beaconing and Bi-directional Communication The T22/T23 Tag utilizes lightweight beaconing communication (for standard messages) and bi-directional Wi-Fi communication with full network association and authentication (for FW and configuration upgrades). This unique combination provides a flexible and scalable solution for advanced applications. -
Page 6: Rugged Performance
T22/T23 Asset Tag User Guide Rugged Performance The T22/T23 Tag enclosure is designed for durability against significant impacts and is water and dust resistant. For information regarding chemical resistance, see Appendix A: Chemicals Compatibility. Visual Indication The T22/T23 Tags include a dual-color LED which enables visual indication of tag operation. -
Page 7: Reusing T2Eb Mounting Holes
T22/T23 Asset Tag User Guide Reusing T2EB mounting holes When replacing a T2EB, the T22/T23 adapter plate can be used to avoid additional mounting holes in the asset. To mount the tag: 1. Mount the adapter plate to the existing T2EB mounting holes 2. -
Page 8: Tag Management
T22/T23 Asset Tag User Guide Tag Management T22/T23 Bi-directional Asset Tags firmware contains up to 10 pre-defined sets of parameters. Each parameter set is called a static configuration and has a unique number. Static configurations cannot be edited. Only one (1) configuration can be selected and used for the tag at any given time. -
Page 9: Tag Maintenance
T22/T23 Asset Tag User Guide (periodic or triggered) Start 1 short red blink Bi-directional session 1 Short red blink followed by 2 quick red flashes Tag Maintenance Tag Battery Life The T22/T23 Tag uses a battery pack consisting of two 3.6V Lithium batteries. The battery can last up to 12 years depending on the configured tag parameters (e.g. - Page 10 T22/T23 Asset Tag User Guide 2. Gently pull the tag casing apart from the main body. 3. Disconnect the wires from the back panel. 4. Remove the disconnected battery pack from the battery holder. Tag Maintenance...
- Page 11 T22/T23 Asset Tag User Guide 5. Place a new battery pack in the battery holder, and connect the wires. 6. Close and re-screw the panel to the tag casing. For accurate battery prediction, make sure new batteries are used. Note In order to have an accurate battery prediction in MobileView the tag battery counters mechanism needs to be reset after every battery change.
-
Page 12: T22 Tag Models
T22/T23 Asset Tag User Guide T22 Tag Models Model Description IND-T22 Rugged T22 indoor bi-directional Wi-Fi Tag with low frequency (LF) receiver. Includes a 2*AA 3.6V Lithium battery pack, motion sensor, and industrial housing with two mounting flanges. IND-T22W Rugged T22 indoor bi-directional Wi-Fi Tag with low frequency (LF) receiver. -
Page 13: Tag Accessories
T22/T23 Asset Tag User Guide Tag Accessories Accessory Description T22/ T23 to T2EB adapter plate, used to mount a T22 or T23 tag AC-TM-0150 on existing T2EB mounting holes (50 units) T22W/ T23W back plates with a hook, used to hang the tag in AC-TM-0250 temporary deployments (50 units) Transparent ID card back plate, used to attach an ID card to the... - Page 14 T22/T23 Asset Tag User Guide Radio Wi-Fi: 802.11 radio (2.4 GHz); g compliant Transmission power: up to +19dBm (~81mW) Patented clear channel sensing avoids interference with wireless networks Security protocol: WPA2 security with AES encryption Low frequency receiver for chokepoint detection (125 kHz) UWB (T23 only): ...
- Page 15 T22/T23 Asset Tag User Guide Certification EMC Certifications: US standard: FCC part 15 sub part B European standard: ETSI 300.328, 300.330, ETSI 301.489 Safety Certifications: US – cTUVus: UL 60950-1; -22 Europe – CE mark: EN 60950-1; -22 Radio Certification: ...
-
Page 16: Appendix A: Chemicals Compatibility
T22/T23 Asset Tag User Guide Appendix A: Chemicals Compatibility The following table summarizes the Tag's resistance to various chemical compounds. Use this key: R - Resistant LR - Limited Resistance (gradual attack over time may occur) N - Not Resistant (rapid attack or attack over short time period will occur) Chemical Compatibility Acetic acid, conc. - Page 17 T22/T23 Asset Tag User Guide Chemical Compatibility Citric acid, conc. Copper sulfate 10% aqueous Cresol Crude oil Diesel fuel Diethyl ether Engine Oil Ethanol Ethylene oxide Fats (lipids) Fluorine Formaldehyde Formic acid, 10% aqueous Formic acid, conc. Freon liquid F12 Freon liquid F22 Glycerin Heptane...
- Page 18 T22/T23 Asset Tag User Guide Chemical Compatibility Hydrogen sulphide <5%gaseous Iodine tincture, alcoholic Isooctane Isopropanol Kerosene Lactic acid, aqueous Magnesium chloride, 10% aqueous Methane Methanol Methylene chloride Methyl ethyl ketone Mineral oil Nitric acid, conc. Nitrobenzene Oleum Oxalic acid, 10% aqueous Ozone Perchloroethylene Petrol...
- Page 19 T22/T23 Asset Tag User Guide Chemical Compatibility Resorcinol Salicylic acid Sea water Silicone oil Soap suds Soda, sat. (sodium carbonate) Sodium chloride, saturated Sodium hypochlorite, 5% aqueous Sulphur Sulphur dioxide <5%gaseous Sulphuric acid 1% Sulphuric acid, conc. Styrene Tartaric acid aqueous Tetralin Toluene Transformer oil...
- Page 20 T22/T23 Asset Tag User Guide Chemical Compatibility Xylol Zinc chloride, 50% aqueous Appendix A: Chemicals Compatibility...
- Page 21 T22/T23 Asset Tag User Guide FCC Compliance Statement This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in residential installations.
- Page 22 About AeroScout AeroScout is the market leader in Unified Asset Visibility solutions. Clients improve operational efficiency and quality using AeroScout products that leverage standard Wi-Fi networks to track and manage the location, condition and status of mobile assets and people. AeroScout’s global customer base consists of leading hospital, manufacturing and logistics organizations, including many of the Fortune 500.
