Related Manuals for Stanley TLM330s
Summary of Contents for Stanley TLM330s

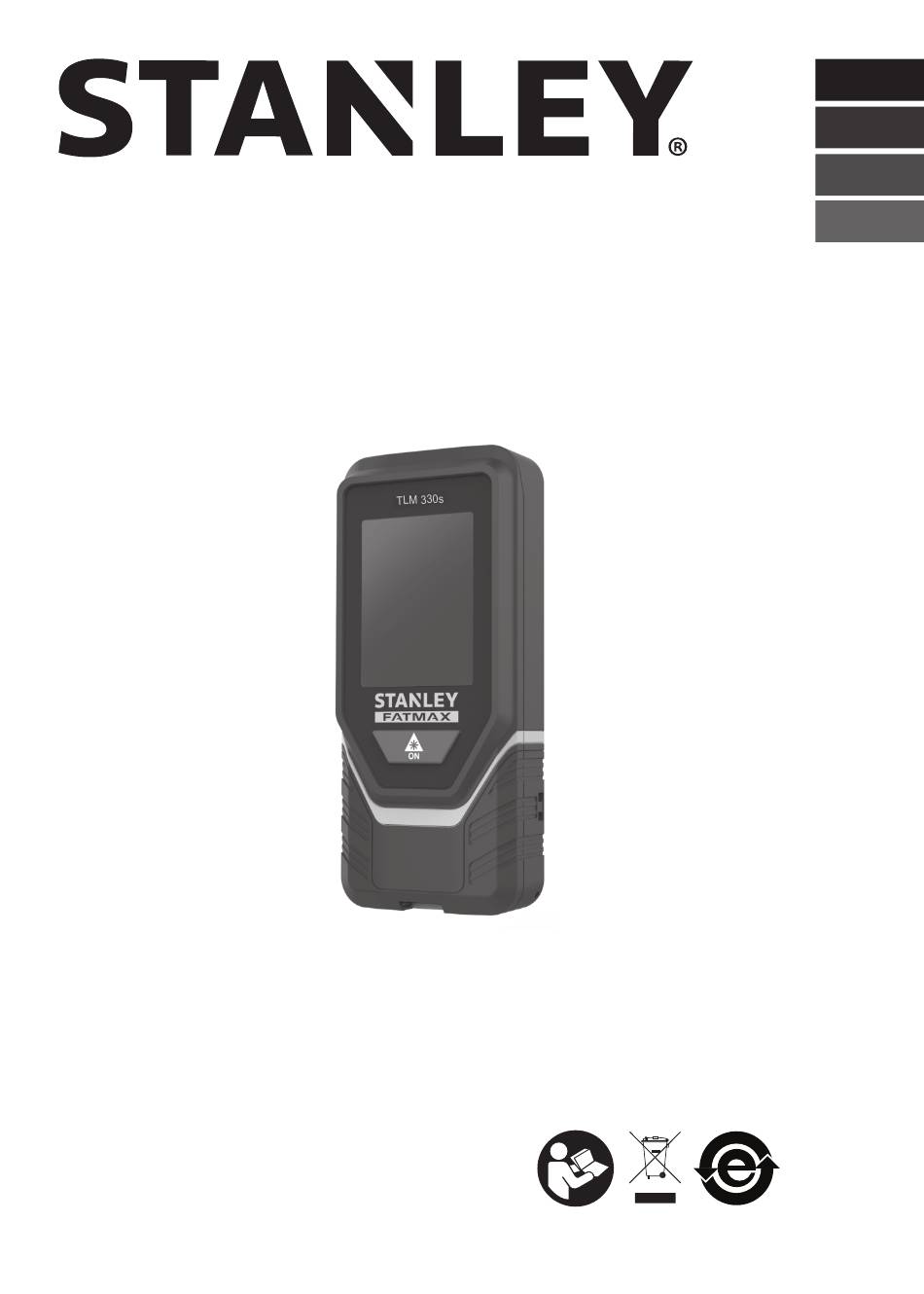

- Page 1 TLM330s User Manual www.StanleyTools.com Please read these instructions before operating the product. DOC100270398...
- Page 2 Figures FCC ID: 2ANWF-TLM330 IC: 23237-TLM330...
- Page 3 ≤ 45° ≤ 45°...
-
Page 4: User Safety
FCC ID: 2ANWF-TLM330 IC: 23237-TLM330 The TLM330s tool emits a visible laser beam, as shown in Figure . The laser beam emitted is Laser Class 2 per IEC 60825-1 and complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser... -
Page 5: Battery Safety
Battery Safety By default, distances are measured from the bottom of the tool to a wall or object (Figure WARNING: Batteries can explode or leak and To measure distances from the top or middle of the cause serious injury or fire. To reduce the risk: tool, or from the tool's endpiece (when it is flipped ALWAYS follow all instructions and warnings on open to measure from a corner), click... - Page 6 Measuring Area By default, distances are measured from the bottom of the tool to a wall or object (Figure You can measure the area of a wall, floor, or object. To measure distances from the top or middle of the Point the tool's laser (Figure ) toward a wall or tool, or from the tool's endpiece (when it is flipped...
- Page 7 • If the tool can be positioned opposite the bottom On the bottom line of the display window, view the of the tall object (to create an angle ≤ 45°), use height of the building or object. the distances to 2 points to calculate the height (Figure Adding Measurements •...
- Page 8 TLM330S the previous measurement. Use the TLM330S to measure each wall in the room View the difference between the two measurements or space captured in the floor plan, and sync the at the bottom of the display window (Figure measurements to the floor plan.
-
Page 9: Warranty
In addition to the warranty, STANLEY Lasers are covered by: 30-Day Money Back Guarantee. If you are not completely satisfied with the performance of your STANLEY Laser for any reason, you can return it within 30 days from the date of purchase with a receipt for a full refund. -
Page 10: Specifications
Specifications Range 6in to 330ft (.15m to 100m) Measuring Accuracy* ± 1/16in (± 1.5mm)* Resolution** 1/16in (1mm)** Laser Class Class 2 (IEC/EN60825-1: 2007/2014) Laser Type ≤ 1.0mW @ 620-690nm Laser/Backlight Automatic Switch-off After 30s Unit Automatic Switch-off After 90s Continuous Measuring Area Volume Pythagoras 2-Point... - Page 11 Caution—use of controls or adjustments or performance —Reorient or relocate the receiving antenna. of procedures other than those specified herein may —Increase the separation between the equipment and result in hazardous radiation exposure. receiver. —Connect the equipment into an outlet on a circuit Caution: different from that to which the receiver is connected.
- Page 12 Notes:...
- Page 13 © 2017 Stanley Tools 701 E. Joppa Road Towson, Maryland 21286 U.S. & Canada Only Made in China 021473 December 2017...
