U s e r M a n u a l
CAM-FD24
PRODUCT FEATURES:
Image Sensor: 1/3" CMOS
TV Lines: 700
Resolution: 976 x 592
Minimum Illumination: 0.1 Lux (0 Lux when LED is on)
TV System: NTSC
Waterproof Rating: IP68
Horizontal Angle: 80 Degrees
Vertical Angle: 145 Degrees
Diagonal Angle: 170 Degrees
Video Output: 1.0V p-p 75ohm
Parking Guidelines: Yes (Removable)
Operating Voltage: 12V DC (Negative Ground)
Operating Temperature: -20 Degrees C to +70 Degrees C
DISCLAIMER:
Prior to Installation
Read the manual prior to installation. Technical knowledge is necessary for installation.
Please ensure you use the correct tools to avoid damage to the vehicle or product.
Connects2 can not be held responsible for the installation of this product.
Technical Support
Connects2 want to provide a fast and suitable resolution should you encounter any
technical issues. With this in mind, when contacting Connects2, try to provide as
much Information as possible. This will speed up the process and help us to help you.
Please use our dedicated online technical support centre: support.connects2.com
www.c2vision-eu.com

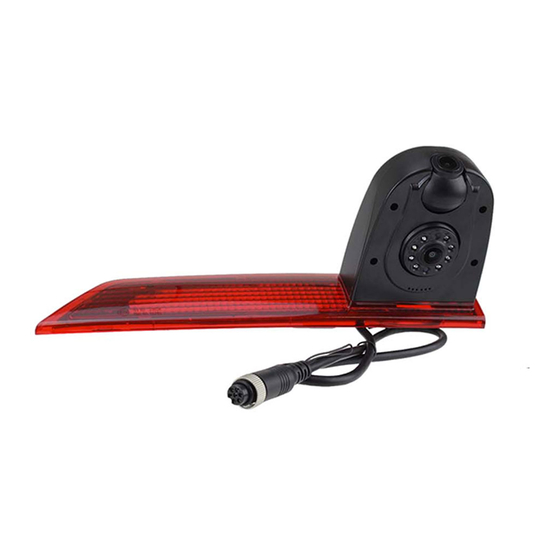

Dual Lens Brake Light Camera
Ford Transit Custom 2012 - 2015
