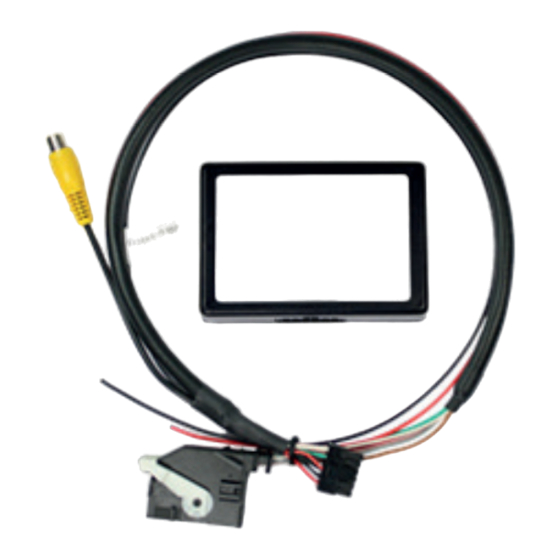

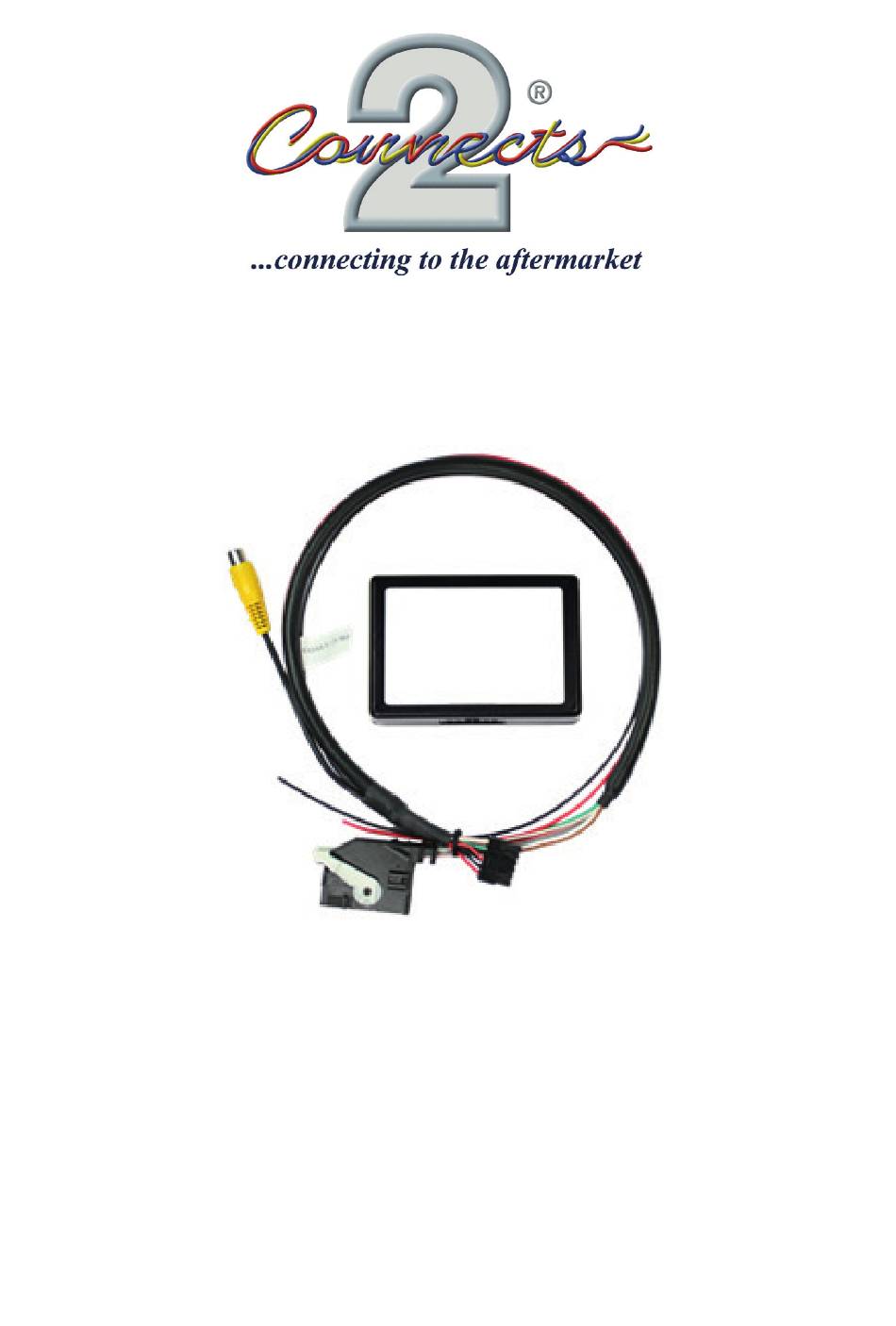

- Page 1 CAM-SK2-AD Rear View Camera Input Application: Skoda Octavia 2013>, Superb 2008>, Yeti 2009> For Vehicles with Colombus or Bolero Head Units with 26 Pin Connector on Rear www.connects2.com...
- Page 2 Connects2 can not be held responsible for the installation of this product. Technical Support Connects2 want to provide a fast and suitable resolution should you encounter any technical issues. With this in mind, when contacting Connects2, try to provide as much Information as possible.
- Page 3 CONNECTION DIAGRAM/INSTALLATION Connection Diagram Interface Box Harness Installation NB: Before installation, switch off ignition, disconnect the vehicle battery and remove the vehicle’s head unit. The interface is installed behind the vehicle’s head unit. www.connects2.com...
- Page 4 Note: If the 26pin AMP-socket of the head-unit is already occupied, the vehicle may have a factory TV-tuner. It must be removed to complete installation. To do so, disconnect the female 26pin AMP-connector of the factory harness and disconnect all wires from the factory TV-tuner. www.connects2.com...
- Page 5 Vehicles with OPS (optical parking system): If coding is done by diagnosis PC, code to rear-view camera in controller 10 park assistant 2 (not in controller 19 - CAN gate- way). After coding the vehicles needs to be locked to reach sleep mode. www.connects2.com...
- Page 6 NOTES www.connects2.com...
- Page 7 NOTES www.connects2.com...
- Page 8 NOTES www.connects2.com...
