U s e r M a n u a l
CAM-34
PRODUCT SPECIFICATIONS:
Image Sensor: 1/3" HD CCD
TV Lines: 480
Resolution: 800 x 480
Minimum Illumination: 0 Lux (LED's on)
TV System: NTSC
Waterproof Rating: IP68
Infa-red LED's: Yes
DISCLAIMER
Read the manual prior to installation. Technical knowledge is necessary for installation. Please ensure you
use the correct tools to avoid damage to the vehicle or product.
Connects2 can not be held responsible for the installation of this product.
Technical Support
Connects2 want to provide a fast and suitable resolution should you encounter any technical
issues. With this in mind, when contacting Connects2, try to provide as much Information as
possible. This will speed up the process and help us to help you.
Please use our dedicated online technical support centre: support.connects2.com
www.c2vision-eu.com

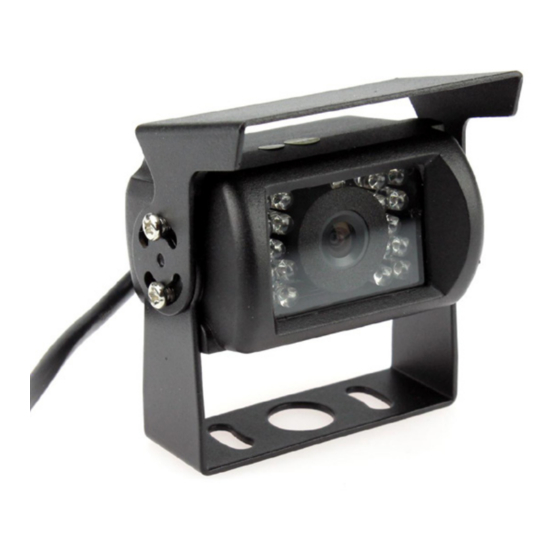

Universal Camera
For Trucks, Vans & Motorhomes
•
Universal camera for installation into many
types of vehicle
•
High-quality, durable construction for use
in harsh weather conditions
•
Mounting bracket with pivot for reliable
Installation and adjustable angle
•
Removable parking guidelines to provide
support during manoeuvres
Viewing Angle: 170 (H) 120 (V)
Video Output: 1.0V p-p 75ohm
Parking Lines: Yes (Removable)
Image Adjustment: Yes (Mirror/Normal)
Operating Voltage: 12 - 32V DC
Standby Current: 100mA @ 13.8V
Operating Temp: -10 °C to 65 °C
