Connects2 CAM-KIT8 User Manual

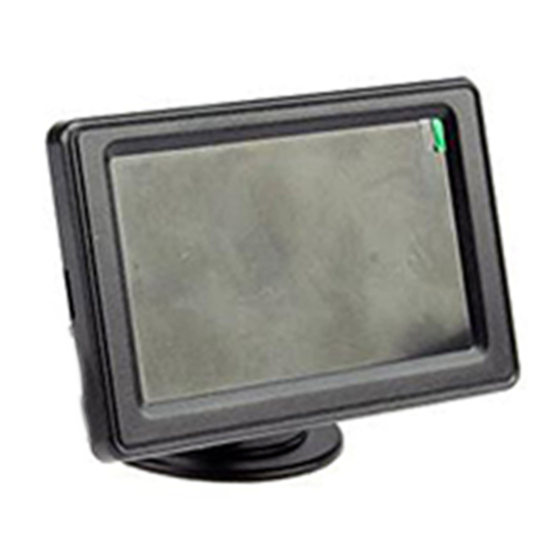

Number plate surround mounted camera with 4.3” colour monitor & 2 parking sensors

U s e r M a n u a l

CAM-KIT8

PRODUCT FEATURES:

Number plate surround mounted camera with 2 parking sensors

4.3" colour monitor with 2 video inputs

Operating Voltage: 12V DC (Negative Ground)

Current Consumption: 350mA @ 13.8V

Operating Temperature: -30 Degrees C to +70 Degrees C

Detection Angle: >60 Degrees (V & H)

Detection Range: 0.3 to 2.0m

Buzzer Volume: 83dB

Camera Angle: 120 Degrees

Waterproof Rating: IP68

Number Plate Surround Size: 550mm x 140mm

DISCLAIMER:

Prior to Installation

Read the manual prior to installation. Technical knowledge is necessary for installation.

The place of installation must be free of moisture and away from heat sources. Please

ensure you use the correct tools to avoid damage to the vehicle or product.

Connects2 can not be held responsible for the installation of this product.

Technical Support

Connects2 want to provide a fast and suitable resolution should you encounter any tech-

nical issues. With this in mind, when contacting Connects2, try to provide as much Infor-

mation as possible. This will speed up the process and help us to help you.

Please use our dedicated online technical support centre: support.connects2.com

Number Plate Surround Mounted Camera

With 4.3" Colour Monitor & 2 Parking Sensors

Connects2Vision

Table of Contents

Need help?

Do you have a question about the CAM-KIT8 and is the answer not in the manual?

Page 1 Connects2 want to provide a fast and suitable resolution should you encounter any tech- nical issues. With this in mind, when contacting Connects2, try to provide as much Infor- mation as possible. This will speed up the process and help us to help you.
Page 2 CAMERA on the smaller connection cable and connect the 2.0m RCA Male to Male extension cable to the Female RCA connector labelled VIDEO 7. Connect the 3pin connector on the smaller connection cable to the 3pin con- nector on the control unit www.connects2.com...
Page 3 Alarm: BI….BI….BI Display Info: 1.5-1.0 Stage: 3 Distance: 0.9-0.5m Awareness: Alarm mode Alarm: BI..BI..BI Display info: 0.9-0.5 Stage: 4 Distance: 0.4-0.3m Awareness: Alarm mode Alarm: BI.BI.BI Display info: 0.4-0.3 Stage: 5 Distance: 0.3-0m Awareness: Danger mode Alarm: BI………. Display: 0.0 www.connects2.com...
Page 4 Connects2Vision NOTES www.connects2.com...
