Connects2 Vision AM-44 User Manual

Universal camera

U s e r M a n u a l

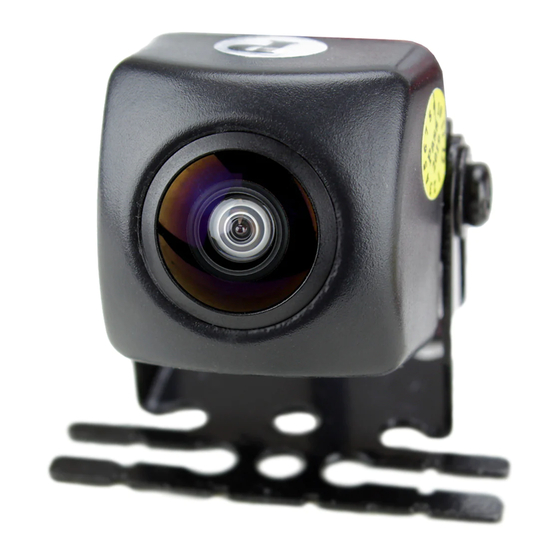

CAM-44

Universal Camera

Multi-angle with pivoting bracket

PRODUCT FEATURES:

Image Sensor: SN322

TV Lines: 800

Resolution: 1280 x 720

Minimum Illumination: 0.1 Lux

TV System: NTSC

Waterproof Rating: IP68

Viewing Angle: 160 Degrees (Horizontal) 140 Degrees (Vertical)

Parking Lines: No

Enhanced Performance In Low Light: Yes

Video Output: 1.0V p-p 75ohm

Operating Voltage: 12-24V DC (Negative Ground)

Operating Temperature: -20 Degrees C to +75 Degrees C

DISCLAIMER:

Prior to Installation

Read the manual prior to installation. Technical knowledge is necessary for installation. Please

ensure you use the correct tools to avoid damage to the vehicle or product.

Connects2 can not be held responsible for the installation of this product.

Technical Support

Connects2 want to provide a fast and suitable resolution should you encounter any technical

issues. With this in mind, when contacting Connects2, try to provide as much Information as

possible. This will speed up the process and help us to help you.

Please use our dedicated online technical support centre: support.connects2.com

www.c2vision-eu.com

Table of Contents

Need help?

Do you have a question about the Vision AM-44 and is the answer not in the manual?

Page 1 Connects2 want to provide a fast and suitable resolution should you encounter any technical issues. With this in mind, when contacting Connects2, try to provide as much Information as possible. This will speed up the process and help us to help you.
Page 2 CONTENTS Connects2Vision • Universal camera with hardwired power cable Note: CAM-RCA1 is required for installation (sold separately) INSTALLATION 1. Connect the Black wire to a suitable ground and the Red wire to a switched +12V supply. 2. If the camera is to be used in the rear of the vehicle, the Red wire should be connected to the reversing light circuit or an interface which provides a reverse signal.
