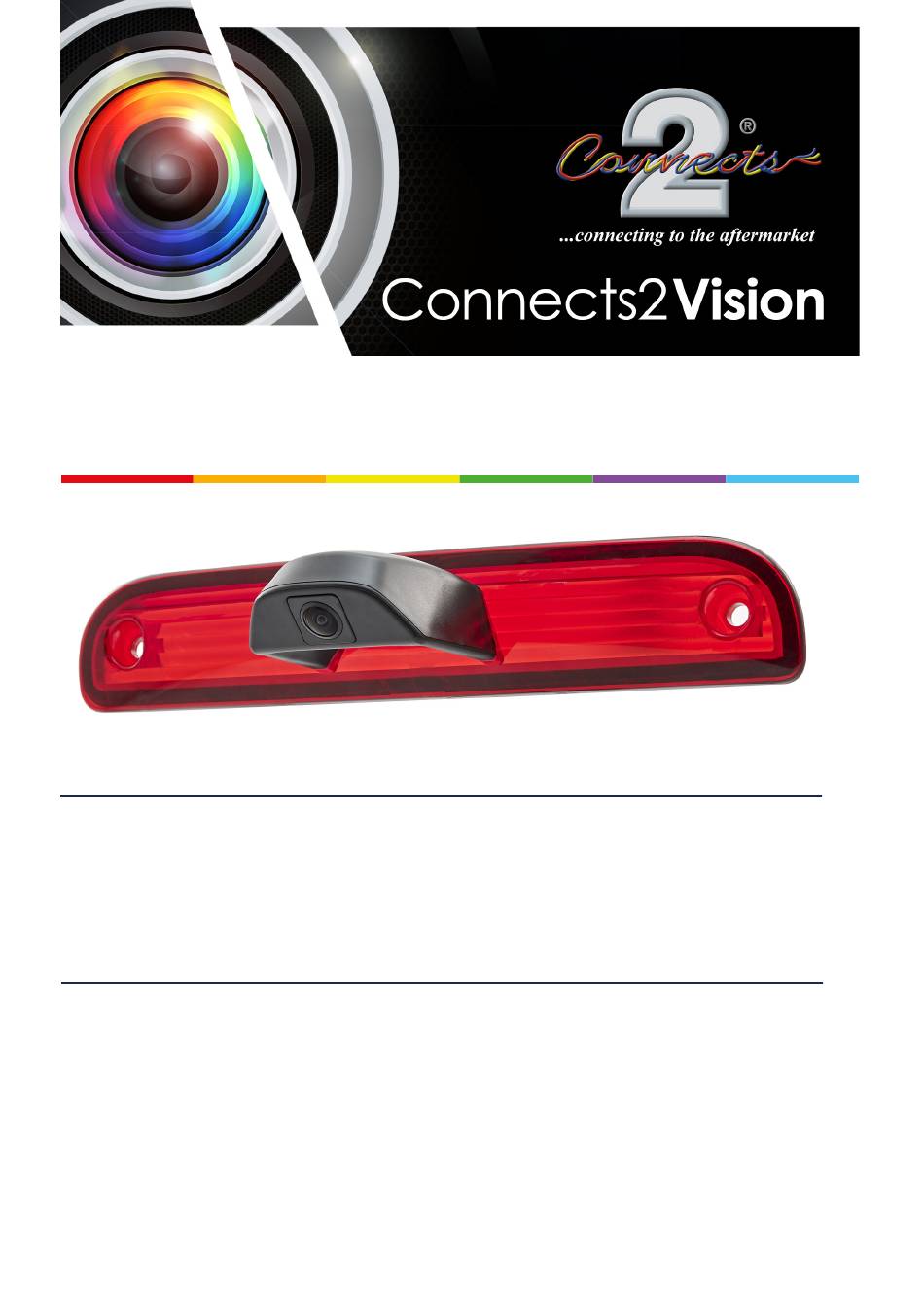

Connects2 CAM-FT5 User Manual

Wide angle fiat brake light camera

U s e r M a n u a l

CAM-FT5

PRODUCT FEATURES:

- Resolution

- Picture Mode

- CMOS Chipset:

- Lens FOV:

- Waterproof Rating:

- Parking Guidelines

Read the manual prior to installation. Technical knowledge is necessary for installation. Please

ensure you use the correct tools to avoid damage to the vehicle or product.

Connects2 can not be held responsible for the installation of this product.

Connects2 want to provide a fast and suitable resolution should you encounter any technical

issues. With this in mind, when contacting Connects2, try to provide as much Information as

possible. This will speed up the process and help us to help you.

Please use our dedicated online technical support centre: support.connects2.com

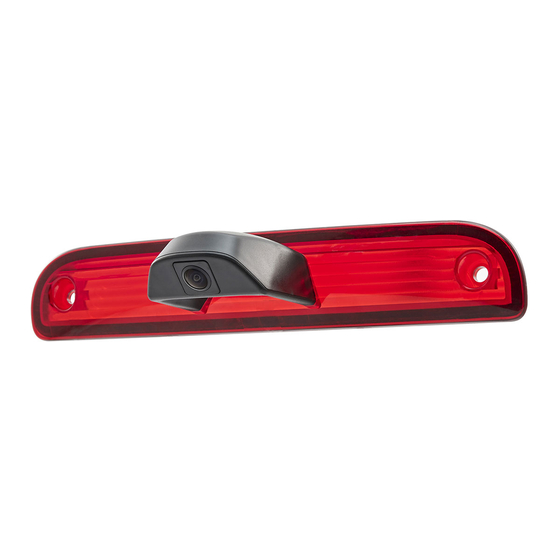

Wide Angle Fiat Brake Light Camera

Fiat Ducato (X250) 2006 - 2014

Fiat Ducato (X290) 2014-UP

720 x 480 (Wide Angle View)

NTSC

1/3"

170 Degrees (H) x 90 Degrees (V)

IP67

Yes (Removable)

Table of Contents

Do you have a question about the CAM-FT5 and is the answer not in the manual?

Page 1 Connects2 want to provide a fast and suitable resolution should you encounter any technical issues. With this in mind, when contacting Connects2, try to provide as much Information as possible. This will speed up the process and help us to help you.
Page 2 Cut loop to disable parking Camera replaces OEM brake light guidelines Power Adapter Cable CAM-FT5 Make Connections to Vehicle/Unit Video RCA Extension Cable ACC 12V Ground Extension Cable Power Adapter Cable Subscribe to our YouTube Channel for installation guides and tips... www.youtube.com/connects2 www.connects2.com...
