Connects2 CAM-FT3 User Manual

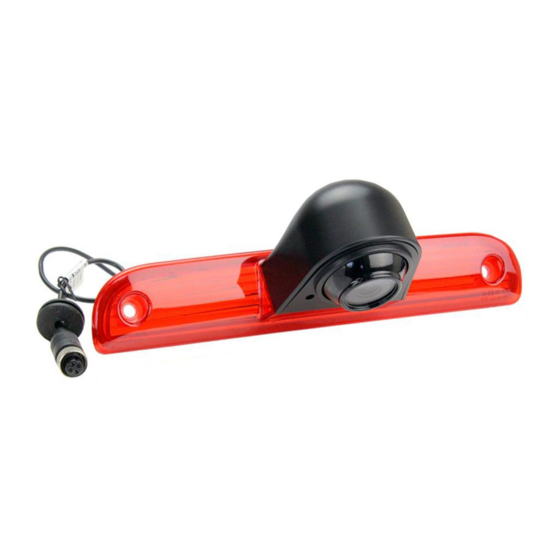

High level brake light/camera fiat ducato 2006-2010
Hide thumbs
1
2

Advertisement

Table of Contents

U s e r M a n u a l
CAM-FT3

PRODUCT FEATURES:

Image Sensor: 1/3" CMOS
TV Lines: 700
Resolution: 510 × 492
Minimum Illumination: 0 Lux (LED's on)
TV System: NTSC
Waterproof Rating: IP69K
Viewing Angle: 120 degree
Infra-Red LED's: Yes
Back light Compensation: Auto
White Balance: Auto White Balance
S/N Ratio: ≥48dB
Built-in Lens: f: 2.8mm
Electronic Shutter: 1/60~1/100,000 Sec
Operating Voltage: 12V DC (Negative Ground)
Operating Temperature: -30 Degrees C to +70 Degrees C
DISCLAIMER:
Prior to Installation
Read the manual prior to installation. Technical knowledge is necessary for installation.
Please ensure you use the correct tools to avoid damage to the vehicle or product.
Connects2 can not be held responsible for the installation of this product.
Technical Support
Connects2 want to provide a fast and suitable resolution should you encounter any
technical issues. With this in mind, when contacting Connects2, try to provide as
much Information as possible. This will speed up the process and help us to help you.
Please use our dedicated online technical support centre: support.connects2.com
www.c2vision-eu.com
High Level Brake Light/Camera
Fiat Ducato 2006 - 2010

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CAM-FT3 and is the answer not in the manual?

Questions and answers

Related Manuals for Connects2 CAM-FT3

Summary of Contents for Connects2 CAM-FT3

  • Page 1 Connects2 can not be held responsible for the installation of this product. Technical Support Connects2 want to provide a fast and suitable resolution should you encounter any technical issues. With this in mind, when contacting Connects2, try to provide as much Information as possible.
  • Page 2 INSTALLATION 1. Remove and disconnect the factory fitted third brake light from the vehicle. 2. Connect the brake light factory plug to the CAM-FT3 and check for correct function of the third brake light. 3. Connect the Black wire to a suitable ground and connect the Red wire to the reversing light circuit or an interface which provides a reverse signal.
