Connects2 Vision CAM-FD13 User Manual

U s e r M a n u a l
CAM-FD13

PRODUCT FEATURES:

• Image Sensor:
• TV Lines:
• Resolution:
• Min. Illumination:
• Lens size:
• Night Vision Distance:
• Waterproof Rating:
• Viewing Angle:
• Lens Adjust:
• Video Output:
• Parking Guides:
• Power Rating:

DISCLAIMER:

Prior to Installation
Read the manual prior to installation. Technical knowledge is necessary for installation.
Please ensure you use the correct tools to avoid damage to the vehicle or product.
Connects2 can not be held responsible for the installation of this product.

Technical Support

Connects2 want to provide a fast and suitable resolution should you encounter any
technical issues. With this in mind, when contacting Connects2, try to provide as
much Information as possible. This will speed up the process and help us to help you.
Please use our dedicated online technical support centre: support.connects2.com
www.c2vision-eu.com

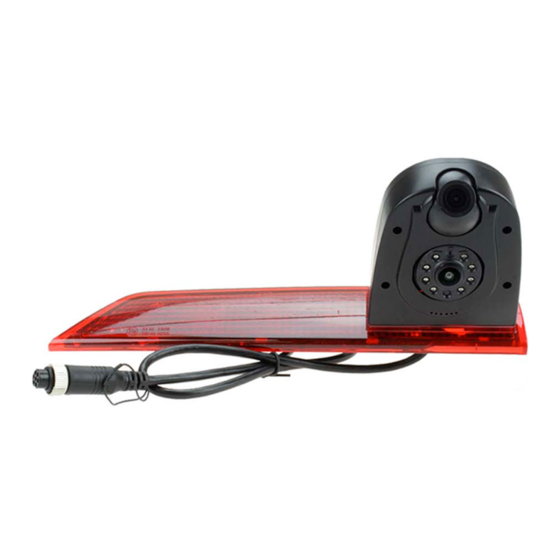

Dual Lens Brake Light Camera
Ford Transit Custom 2012 - UP
Reversing Camera
Colour 1/3" CMOS
580
648 x 488 pixels
0.1 Lux (0 Lux when LED's on)
1.8mm
35ft
IP68
Vertical: 80° Horizontal: 145° Diagonal: 175°
20° (Vertical movement only)
1.0 Vp-p/75 Ohm
Yes (Removable)
12V
Connects2Vision
Driving Camera
Colour 1/3" CMOS
580
648 x 488 pixels
0.1 Lux
3.6mm
-
IP68
Vertical: 55° Horizontal: 80° Diagonal: 110°
30° (Vertical movement only)
1.0 Vp-p/75 Ohm
-
12V
V3.10-22
