ProFace X [TD]
User Manual

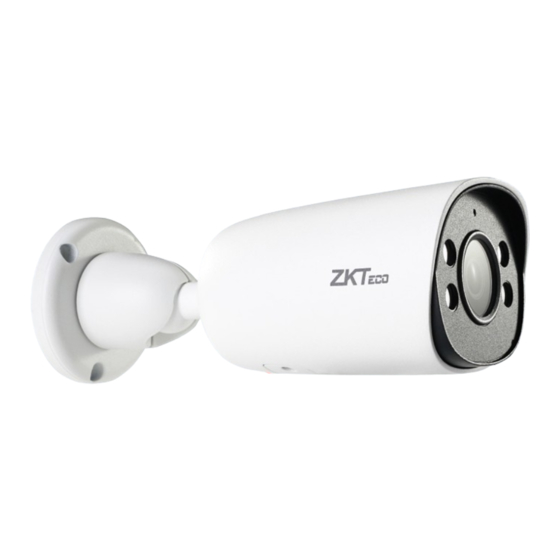

8000 Series Network Camera
Date: June 2023
Doc Version: 2.4
English
Thank you for choosing our product. Please read the instructions carefully
before operation. Follow these instructions to ensure that the product is
functioning properly. The images shown in this manual are for illustrative
purposes only.
P a g e
| 1
For further details, please visit our Company's website
www.zkteco.com.
Copyright©2020ZKTECO CO., LTD. All rights reserved.
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8000 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ZKTeco 8000 Series

Summary of Contents for ZKTeco 8000 Series

  • Page 1 ProFace X [TD] User Manual User Manual 8000 Series Network Camera Date: June 2023 Doc Version: 2.4 English Thank you for choosing our product. Please read the instructions carefully before operation. Follow these instructions to ensure that the product is functioning properly.
  • Page 2 Copyright © 2023 ZKTECO CO., LTD. All rights reserved. Without the prior written consent of ZKTeco, no portion of this manual can be copied or forwarded in any way or form. All parts of this manual belong to ZKTeco and its subsidiaries (hereinafter the "Company" or "ZKTeco").
  • Page 3 ZKTeco shall in no way be responsible (i) in case the machine/unit/Device malfunctions due to any non- compliance of the instructions contained in this manual (ii) in case of operation of the machine/unit/Device beyond the rate limits (iii) in case of operation of the machine and Device in conditions different from the prescribed conditions of the manual.
  • Page 4 User Manual About the Company ZKTeco is one of the world’s largest manufacturers of RFID and Biometric (Fingerprint, Facial, and Finger- vein) readers. Product offerings include Access Control readers and panels, Near & Far-range Facial Recognition Cameras, Elevator/floor access controllers, Turnstiles, License Plate Recognition (LPR) gate controllers and Consumer products including battery-operated fingerprint and face-reader Door Locks.

  • Page 5: Table Of Contents

    ................................26 LARM 6.3.1. ALARM INPUT ..............................................26 6.3.2. ALARM OUTPUT ............................................27 6.3.3. EXCEPTION ..............................................27 6.3.4. MOTION DETECTION ..........................................28 6.3.5. VIDEO TAMPERING............................................. 30 6.4. IVA ................................31 P a g e Copyright©2023 ZKTECO CO., LTD. All rights reserved.
  • Page 6 FACE ..............................46 8.1. F ..............................46 8.2. F ..............................47 IBRARY 8.3. F ..............................49 ODEL 8.4. F ............................49 OMPARISON EXIT ..............................50 10. FAQ ..............................51 P a g e Copyright©2023 ZKTECO CO., LTD. All rights reserved.

  • Page 7: Quick Installation Guide (Only Sd Card Model)

    SD card slot cover at the bottom of camera. For the Conch model, you need to rotate the camera base to expose the Micro-SD card slot. Bullet Type Turret Type Step 2: Remove the screws, and then open the cover to access the internal Micro-SD slot. P a g e Copyright©2023 ZKTECO CO., LTD. All rights reserved.
  • Page 8 Insert the Micro-SD card in the correct direction and then push it into the slot. Bullet Type Turret Type Step 4: Attach the cover with the screws and then tighten them securely. P a g e Copyright©2023 ZKTECO CO., LTD. All rights reserved.
  • Page 9 Note: The small round hole next to the Micro-SD card slot is the factory reset button (as show in the picture). In the power-on state, press and hold the small thimble for 3 seconds, and the camera will restore the factory default settings. P a g e Copyright©2023 ZKTECO CO., LTD. All rights reserved.

  • Page 10: Login Interface

    Password: 123456 (default setting), users may modify the password according to the instructions. Language: English, simplified Chinese. Note: For account security reasons, users will be prompted to reset their password when they first log in. P a g e | 10 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
  • Page 11 , to prompt the following window to pop up. The default username is "admin." Click Next to restore the password to factory settings according to the prompt. P a g e | 11 Copyright©2023 ZKTECO CO., LTD. All rights reserved.

  • Page 12: Live Videos

    (and exit) the full screen display on the preview interface. P a g e | 12 Copyright©2023 ZKTECO CO., LTD. All rights reserved.

  • Page 13: Electronic Zoom-In

    PTZSpeed: To use the slider to regulate the PTZ speed. Brightness: To adjust the brightness of the screen. Contrast: To adjust the contrast of the screen. The arrow is used to restore factory settings P a g e | 13 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
  • Page 14 Full Screen: Click to display full-screen video preview. Record: Click to allow or disallow previewing records. Note: X indicates the function is off or disabled. P a g e | 14 Copyright©2023 ZKTECO CO., LTD. All rights reserved.

  • Page 15: Playback

    Voice: Adjust the volume of playback audio. Double-click the slider to play the video, or you may click the Start button to start playing the videos back. P a g e | 15 Copyright©2023 ZKTECO CO., LTD. All rights reserved.

  • Page 16: File Management

    To review captured images from video preview, you may search for and double click to obtain images you need. 5.3. Playback Capture To review captured images from video playback; you may search for and double click to obtain images you need. P a g e | 16 Copyright©2023 ZKTECO CO., LTD. All rights reserved.

  • Page 17: Playback Backup

    Capture: Click on the button to take a snapshot of the display during playback. Voice: Click on the button to turn sound on or off during playback. P a g e | 17 Copyright©2023 ZKTECO CO., LTD. All rights reserved.

  • Page 18: Setup

    Format: Select between PAL and NTSC image scanning system. After completing all parameters settings, click Save, then the settings will take effect immediately. 6.1.2. Below is the PTZ Settings interface of the IP camera. P a g e | 18 Copyright©2023 ZKTECO CO., LTD. All rights reserved.

  • Page 19: Time

    DST Bias: The length of the additional offset after starting daylight saving time (0 to 720 points). After completing all parameters settings, click Save, then the settings will take effect immediately. P a g e | 19 Copyright©2023 ZKTECO CO., LTD. All rights reserved.

  • Page 20: User

    Log in with admin account, add a new user and assign permission, as shown in the following figure. After completing all parameters settings, click Save, then the settings will take effect immediately. P a g e | 20 Copyright©2023 ZKTECO CO., LTD. All rights reserved.

  • Page 21: Audio And Video

    Below is the Display Settings interface of the IP camera. Name: Modify the appointed channel name. Main Stream OSD: Modify the appointed font of the OSD in main stream preview channel. P a g e | 21 Copyright©2023 ZKTECO CO., LTD. All rights reserved.

  • Page 22: Streams

    Bitrate: Set different bitrates for different channels (Note: Based on the defaulted resolution of different products) After completing all parameters settings, click Save, then the settings will take effect immediately. P a g e | 22 Copyright©2023 ZKTECO CO., LTD. All rights reserved.

  • Page 23: Roi

    After completing all parameters settings, click Save, then the settings will take effect immediately. 6.2.5. Privacy Zones Below is the Privacy Zones setting interface of the IP camera. Privacy Mask: Enable or disable the Privacy Mask feature. P a g e | 23 Copyright©2023 ZKTECO CO., LTD. All rights reserved.

  • Page 24: Image

    Night/Day: ranges from 0 to 255. Users may set the value as needed; the default setting is 35. Color Mode: Normal/ Bright/ Nature; the default setting is “Normal” Mirror: Off Horizontal Mirror/ Vertical Mirror/ 180° Rotation/90° Rotation/270° Rotation, the default setting is “Off”. P a g e | 24 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
  • Page 25 InfraredLightReceive: After opening the use of infrared lights to make the picture dark. Model: Brightness adjustment mode of InfraredLight. Brightness: Manually set the brightness of the InfraredLight. P a g e | 25 Copyright©2023 ZKTECO CO., LTD. All rights reserved.

  • Page 26: Alarm

    TF card. Record: Once an alarm is triggered, a signal will be transmitted to the camera to record a video and restore it in the TF card. P a g e | 26 Copyright©2023 ZKTECO CO., LTD. All rights reserved.

  • Page 27: Alarm Output

    After completing all parameters settings, click Save, then the settings will take effect immediately. 6.3.3. Exception Below is the Exception interface of the IP camera: Exception Type: Network Disconnected/ IP Address Conflict. P a g e | 27 Copyright©2023 ZKTECO CO., LTD. All rights reserved.

  • Page 28: Motion Detection

    Preset: When motion detection triggers an alarm, the alarm will link with the preset point. After completing all parameters settings, click Save, then the settings will take effect immediately. P a g e | 28 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
  • Page 29 Preset: When motion detection triggers an alarm, the alarm will link with the preset point. After completing all parameters settings, click Save, then the settings will take effect immediately. P a g e | 29 Copyright©2023 ZKTECO CO., LTD. All rights reserved.

  • Page 30: Video Tampering

    Snap Interval: Set the time intervals for taking snapshots. Snap Number: Set the number of snapshots taken each time. After completing all parameters settings, click Save, then the settings will take effect immediately. P a g e | 30 Copyright©2023 ZKTECO CO., LTD. All rights reserved.

  • Page 31: Iva

    Threshold: Set the upper count limit. When the value exceeds the set value, the system will automatically trigger the alarm. Total Count: Enable or disable the Total Counter function. Time Period: Set the effective time period for the day’s total counter. P a g e | 31 Copyright©2023 ZKTECO CO., LTD. All rights reserved.

  • Page 32: Object Left / Lost

    Area Settings preview interface. Click Stopping to complete the setting, then the system will detect, and monitor objects appeared in the selected area. Clear: Click to delete all zones. Detect Area: Add controlled zones (max. 4). P a g e | 32 Copyright©2023 ZKTECO CO., LTD. All rights reserved.

  • Page 33: Area Detection (Intrusion Detection)

    Detect Type: Set the target detect type. There are four detection types, all of them will trigger the alarm. “Target enter” represents that the camera will trigger the alarm once it detects that a target P a g e | 33 Copyright©2023 ZKTECO CO., LTD. All rights reserved.

  • Page 34: Line Crossing (Tripwire)

    Click Stopping to complete the setting. When a target passes through the guard line, the system will trigger the alarm. Clear: Click to delete all zones. Swap AB: Click to swap the positions of A/B ports. P a g e | 34 Copyright©2023 ZKTECO CO., LTD. All rights reserved.

  • Page 35: Storage

    Below is the Micro SD setting interface of the IP camera. You may view the capacity (MB), free spare (MB), status of the current TF card, and format the TF card. Note: Please disconnect the power supply before you insert or remove the TF card. P a g e | 35 Copyright©2023 ZKTECO CO., LTD. All rights reserved.

  • Page 36: Recording

    Video Edge IP Address: Enter the IP address of NVR or the server. After completing all parameters settings, click Save, then the settings will take effect immediately. P a g e | 36 Copyright©2023 ZKTECO CO., LTD. All rights reserved.

  • Page 37: Network

    RTSP verification mode, during playing RTSP real-time stream, RTSP validation operations need the user name and password for verification. Username: PPPOE user name. Passwords: PPPOE password. P a g e | 37 Copyright©2023 ZKTECO CO., LTD. All rights reserved.

  • Page 38: Http/Https

    HTTPs Port: HTTPs communication port, range is 1 to 65534, default is 443. 6.6.3. Platform Below is the Management Platform interface of the IP camera: Users may activate or deactivate a protocol and modify the protocol information here. P a g e | 38 Copyright©2023 ZKTECO CO., LTD. All rights reserved.

  • Page 39: Multicast

    DDNS is implemented through a dynamic domain resolution server. It requires a fixed IP address on of the device running on the server. The DDNS setting interface of the IP camera is as shown below. P a g e | 39 Copyright©2023 ZKTECO CO., LTD. All rights reserved.

  • Page 40: Upnp

    UPnP: Activate or deactivate the UPnP function. When it is enabled, the device can port mapping through the router. Add: User may add TCP/UDP protocol, set internal and external port. 6.6.7. Email Below is the Email Setting interface of the IP camera. P a g e | 40 Copyright©2023 ZKTECO CO., LTD. All rights reserved.

  • Page 41: Ftp

    Username: Input the FTP server username. Password: Input the FPT server password. Path: Input the file upload path. 6.6.9. SNMP Below is the SNMP Setting interface of the IP camera. P a g e | 41 Copyright©2023 ZKTECO CO., LTD. All rights reserved.

  • Page 42: Qr Code

    Below is the System Update setting interface of the IP camera. File: Click Browse to find and select an upgrade kit, then click Update. Note: Do not disconnect the power supply during upgrade. P a g e | 42 Copyright©2023 ZKTECO CO., LTD. All rights reserved.

  • Page 43: Auto Reboot

    Face Pics Path: Select and modify the storage path of the video record file. Live View Mode: Realtime/ Fluency. The value is adjustable. After completing all parameters settings, click Save, then the settings will take effect immediately. P a g e | 43 Copyright©2023 ZKTECO CO., LTD. All rights reserved.

  • Page 44: Restore

    Import Config: Import selected configuration to the system. Restore: Restore the device to factory settings. Reboot: Reboot the device. 6.7.5. Developer Below is the Developer interface of the IP camera. P a g e | 44 Copyright©2023 ZKTECO CO., LTD. All rights reserved.

  • Page 45: Log Search

    After completing all settings, click Search, then the log information will display on the left. Alarm Below is the interface for the alarm feature of the IP camera. Information regarding alarms will be displayed as follows. P a g e | 45 Copyright©2023 ZKTECO CO., LTD. All rights reserved.

  • Page 46: Face

    Face records will be shown on the following interface. Capture Record: Show the captured face image record. Comparison Record: Show the comparison results; only compare faces which have been stored in the database. P a g e | 46 Copyright©2023 ZKTECO CO., LTD. All rights reserved.

  • Page 47: Face Library

    Step 2: Fill in information about the new group, then save it. Open the “Enable” switch to ask the system to use such information during face comparison. Step 3: Modify or delete a face group when you needed. P a g e | 47 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
  • Page 48 Multi-Import: Import face images by batches from PC. Format of the pictures’ names should be “Name_Description_Face ID”, for example ”Ann_Assistant_001”. Then, the personal information will be filled in automatically. P a g e | 48 Copyright©2023 ZKTECO CO., LTD. All rights reserved.

  • Page 49: Face Model

    8.4. Face Comparison Show the face comparison record. Users can search for records by related options. Note: A TF card must be pre-installed for storing record. P a g e | 49 Copyright©2023 ZKTECO CO., LTD. All rights reserved.

  • Page 50: Exit

    8000 Series Network Camera User Manual Exit Click Logout to log out, as shown in the following figure. P a g e | 50 Copyright©2023 ZKTECO CO., LTD. All rights reserved.

  • Page 51: Faq

    Solution: Disable some of the clients or set a lower frame rate for the IP camera. Possible Reason 3: The transmission data is large while the bandwidth is small, which leads to loss of data packets. P a g e | 51 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
  • Page 52 Solution: Turn off the firewall. Question 7: Image is not clear enough. Solution: Try adjusting the parameters for images to reasonable values. For details, please refer to Chapter 6.2.6. Image. P a g e | 52 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
  • Page 53 ZKTeco Industrial Park, No. 32, Industrial Road, Tangxia Town, Dongguan, China. Phone : +86 769 - 82109991 : +86 755 - 89602394 www.zkteco.com P a g e | 53 Copyright©2023 ZKTECO CO., LTD. All rights reserved. Copyright © 2023 ZKTECO CO., LTD. All Rights Reserved.
